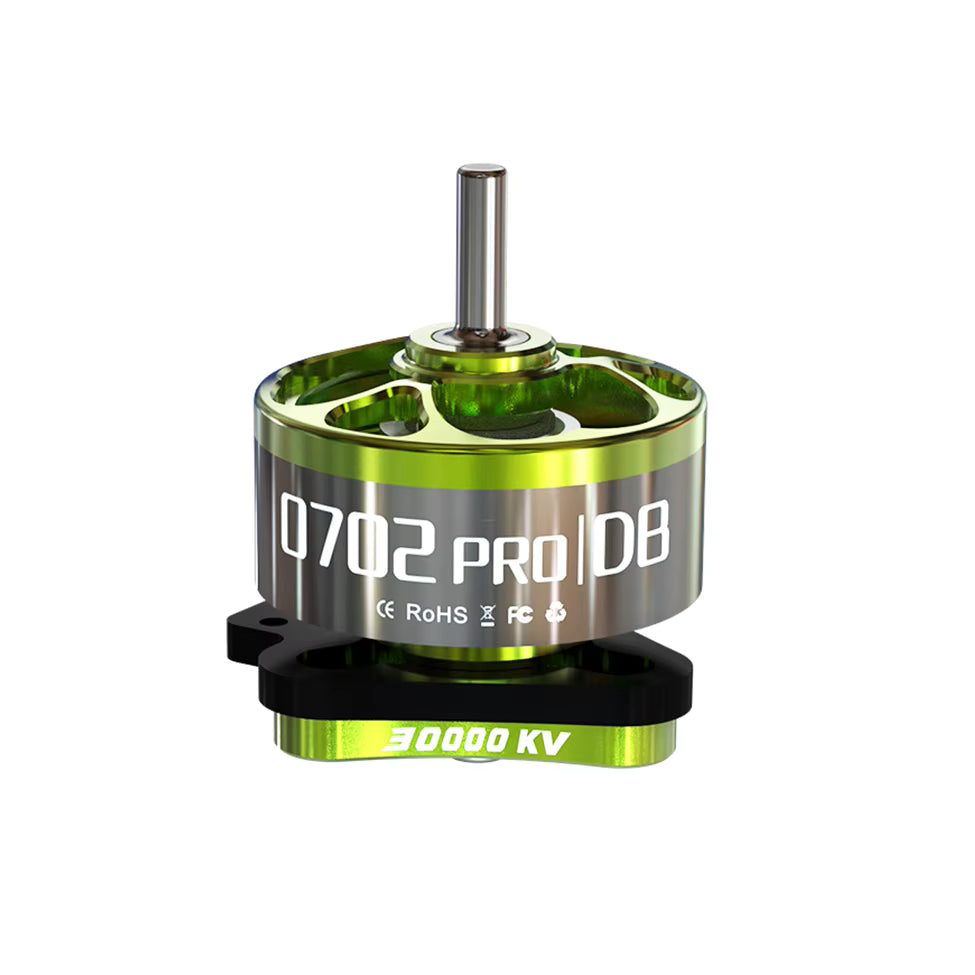

VCI 0702 PRO DB

The VCI 0702 PRO DB is a high-performance micro brushless motor engineered for extreme 1S speed, instant throttle response, and ultra-lightweight builds. Weighing just 1.49g, this motor is ideal for competitive tiny whoops, micro racers, and freestyle indoor FPV drones that demand fast acceleration without sacrificing efficiency or control.

Built with 52SH arc magnets, a precision 9S12P stator configuration, and ultra-low internal resistance, it delivers explosive thrust, smooth power delivery, and reliable thermal performance even at full throttle.

Features:

- Optimized for 1S setups

- Ultra-lightweight: 1.49g (with cable)

- 52SH arc magnets for high torque and rapid response

- 9S12P stator configuration for smooth power output

- Low internal resistance: 170mΩ

- High-efficiency micro design for racing & freestyle

- 30AWG silicone wire (35mm)

- Ideal for tiny whoops & sub-80mm micro drones

Specifications:

- Brand: VCI

- Model: 0702 PRO DB

- KV Rating: 30000KV/ 23000KV

- Rated Voltage: 1S (4V)

- Configuration: 9S12P

- Stator Size: Ø7 × L2 mm

- Magnet Type: 52SH Arc

- Internal Resistance: 170mΩ

- Shaft Diameter: Ø1 mm

- Shaft Length: 3.4 mm

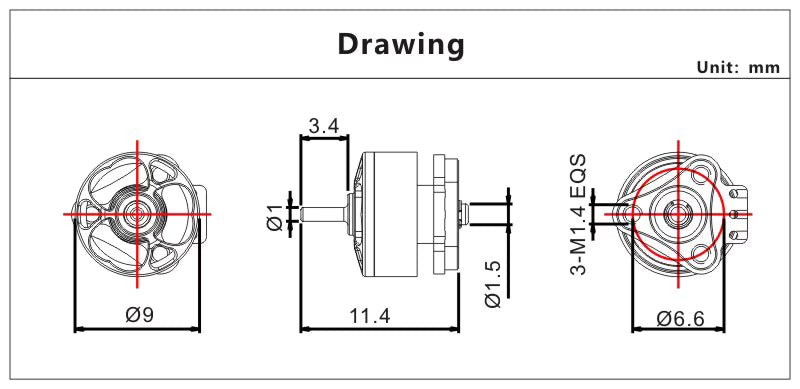

- Dimensions: Ø9 × 11.4 mm

- Silicone Wire: 30AWG × 35mm

- Idle Current (2.9V): 0.75A

- Peak Current: 5.9A

- Max Instantaneous Power: 23.6W

- Weight (including cable): 1.49g

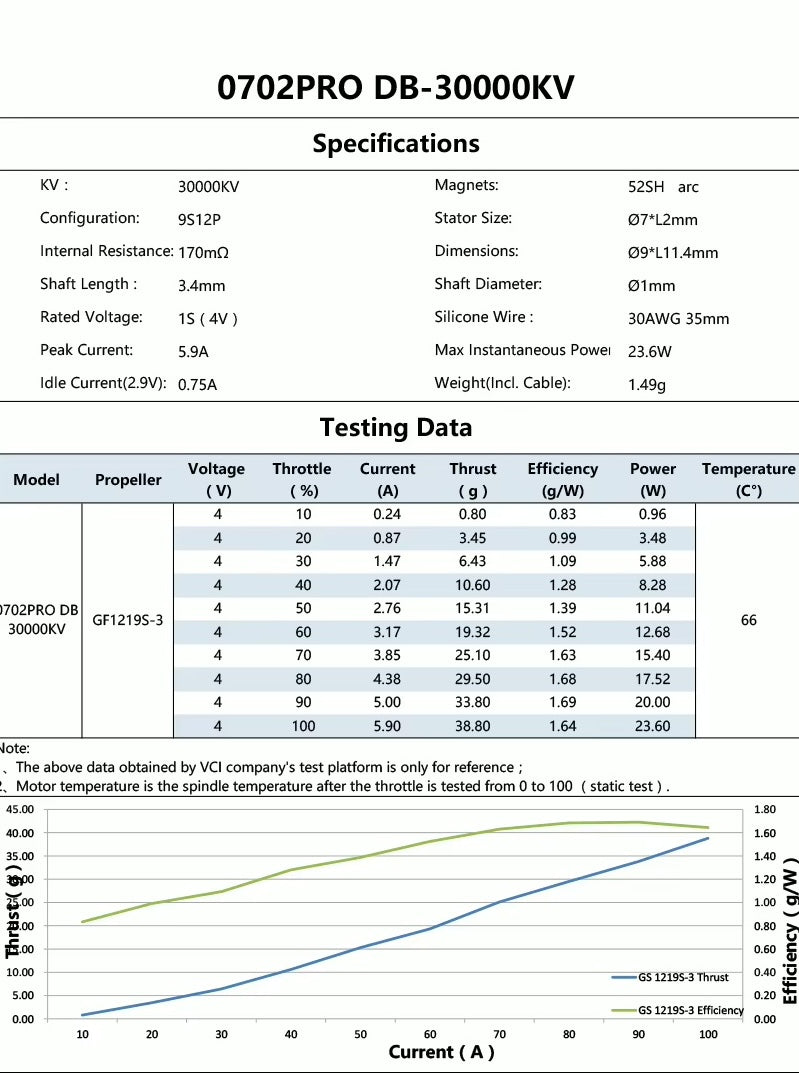

Performance Testing 30000KV (GF1219S-3 Prop @ 4V):

• Max Thrust: 38.8g

• Maximum Current: 5.9A

• Peak Power: 23.6W

• Peak Efficiency: 1.69 g/W

• Max Tested Temperature: 66°C

Recommended Applications:

- 1S Tiny Whoop Racing

- Indoor freestyle micro FPV

- Sub-80mm FPV drones

- Lightweight 65–75mm builds
