SpeedyBee TX800
SpeedyBee TX800
Couldn't load pickup availability

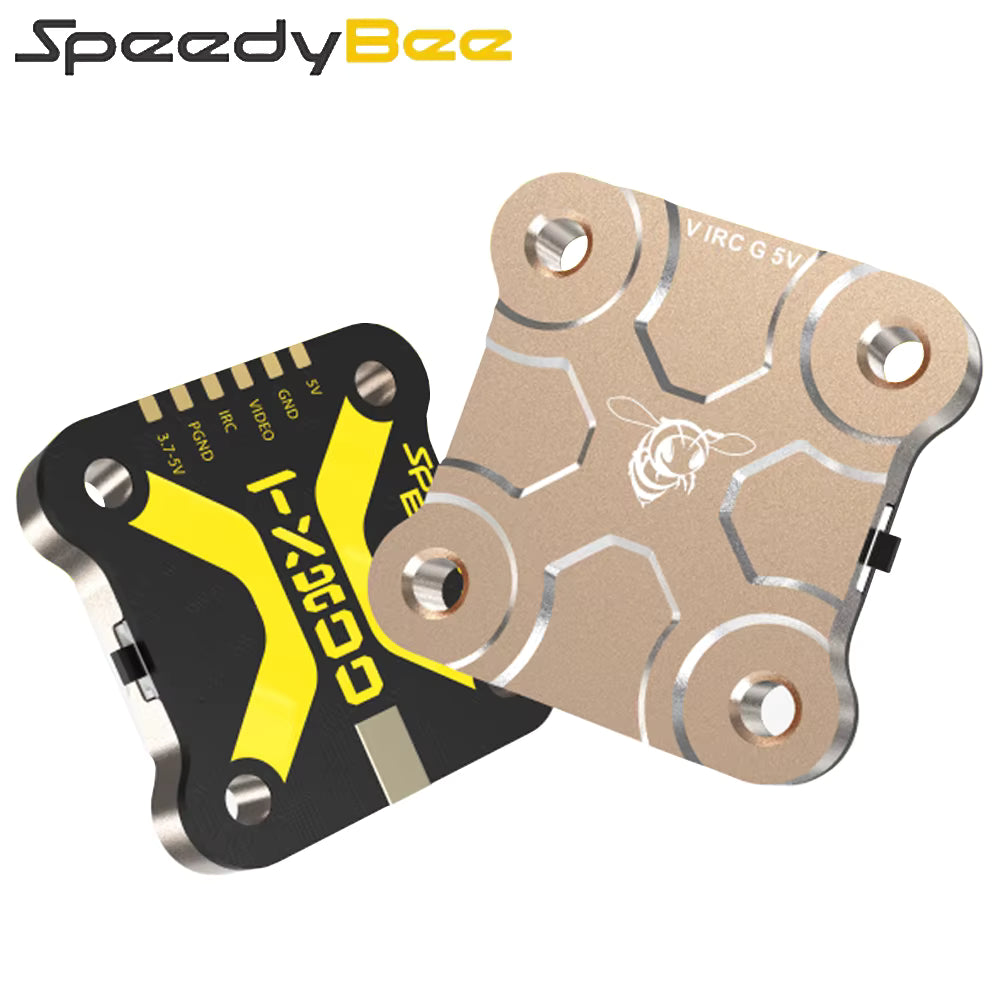

The SpeedyBee TX800 VTX is a powerful and reliable analog video transmitter designed for long-range and high-output FPV builds. With up to 800mW of adjustable output power, it provides strong signal penetration and stable video performance for freestyle or racing. It supports IRC Tramp Protocol for easy channel and power adjustments directly through your flight controller. Its compact design and wide input voltage range make it compatible with a variety of 3–6S setups. Built with efficient heat management, the TX800 delivers consistent performance even during demanding flights.
Â
Specifications:
- Frequency Channel: 5.8G 48CH
- Output Power: PIT/25mW/200mW/400mW/800mW
- Working Current: 5V@250~750mA
- Voltage out: 5V@max 250mA
- Voltage in: 3.7-5.5V
- Video input impedance: 75Ω
- Antenna Connector: MMCX
- Weight: 5.3g
- PCB Size: 28mm*28mm@20*20 M2
