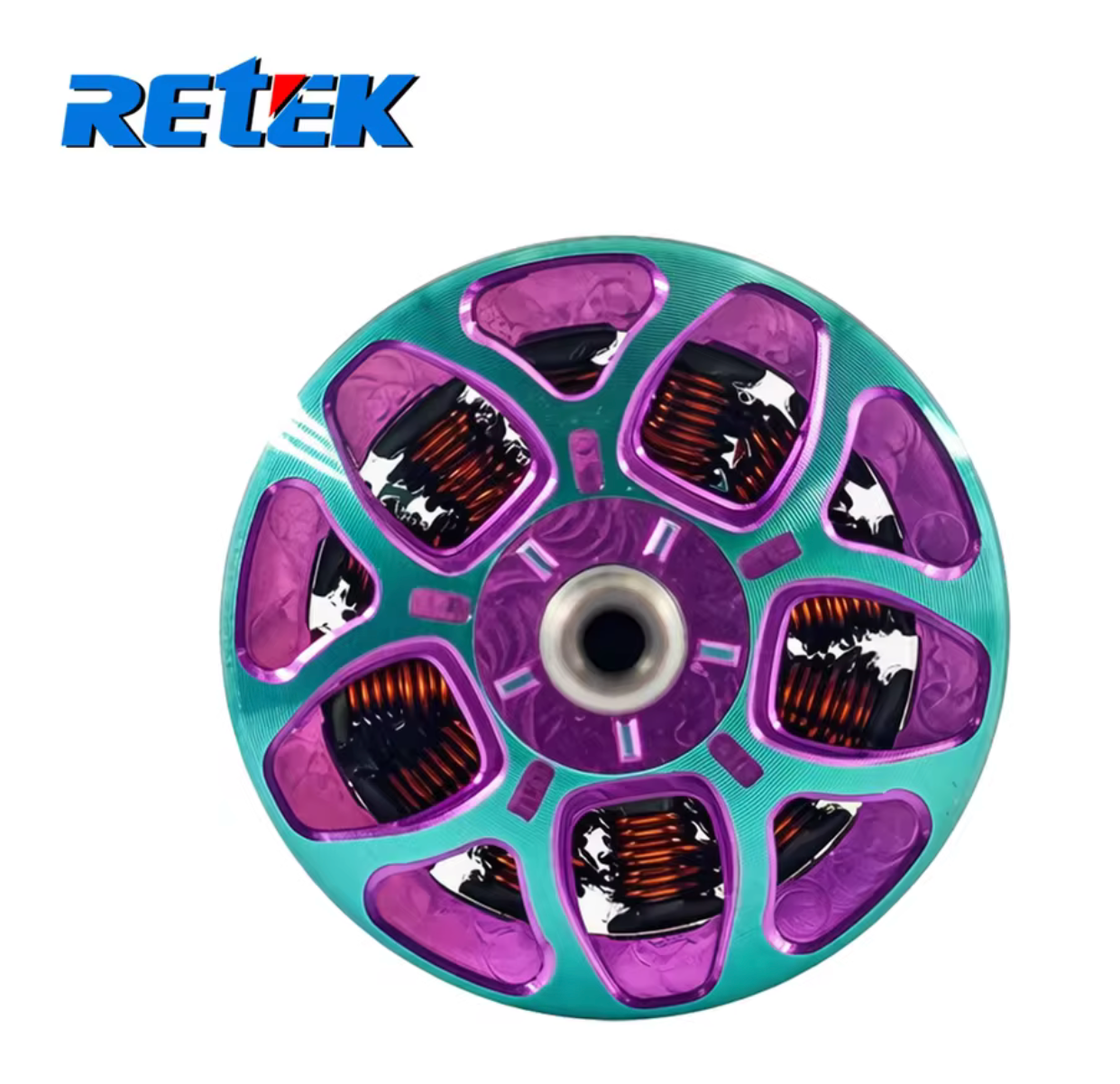

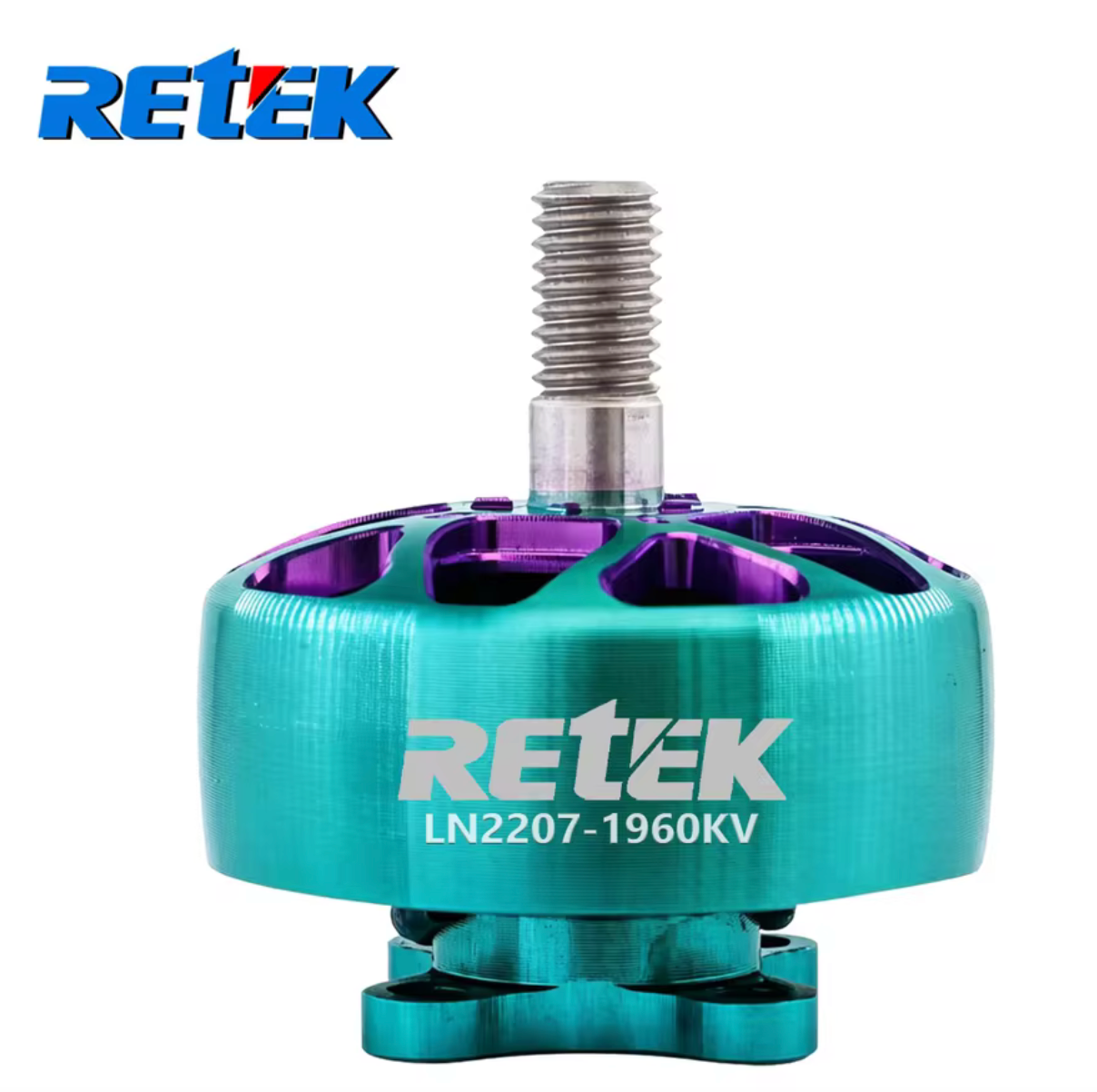

The RETEK LN2207 1960KV Brushless Motor is built for 5-inch FPV racing and freestyle drones, combining durable materials with a compact, performance-focused design.

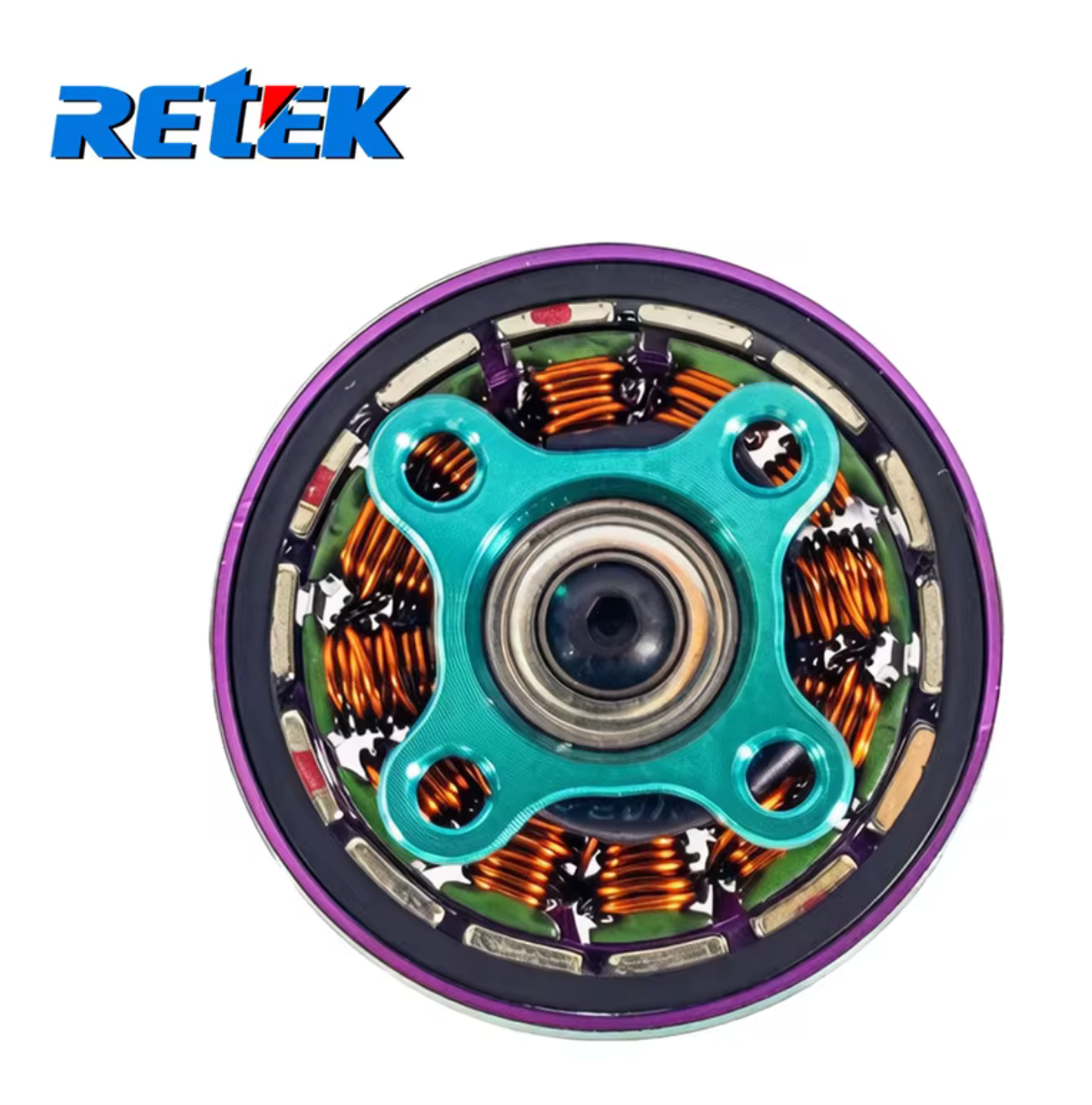

It features a unibell construction, CNC-machined aluminum casing, carbon steel motor shaft, and oxygen-free copper windings. RETEK’s unique winding method is designed to provide consistent motor performance while maintaining a compact 2207 form factor.

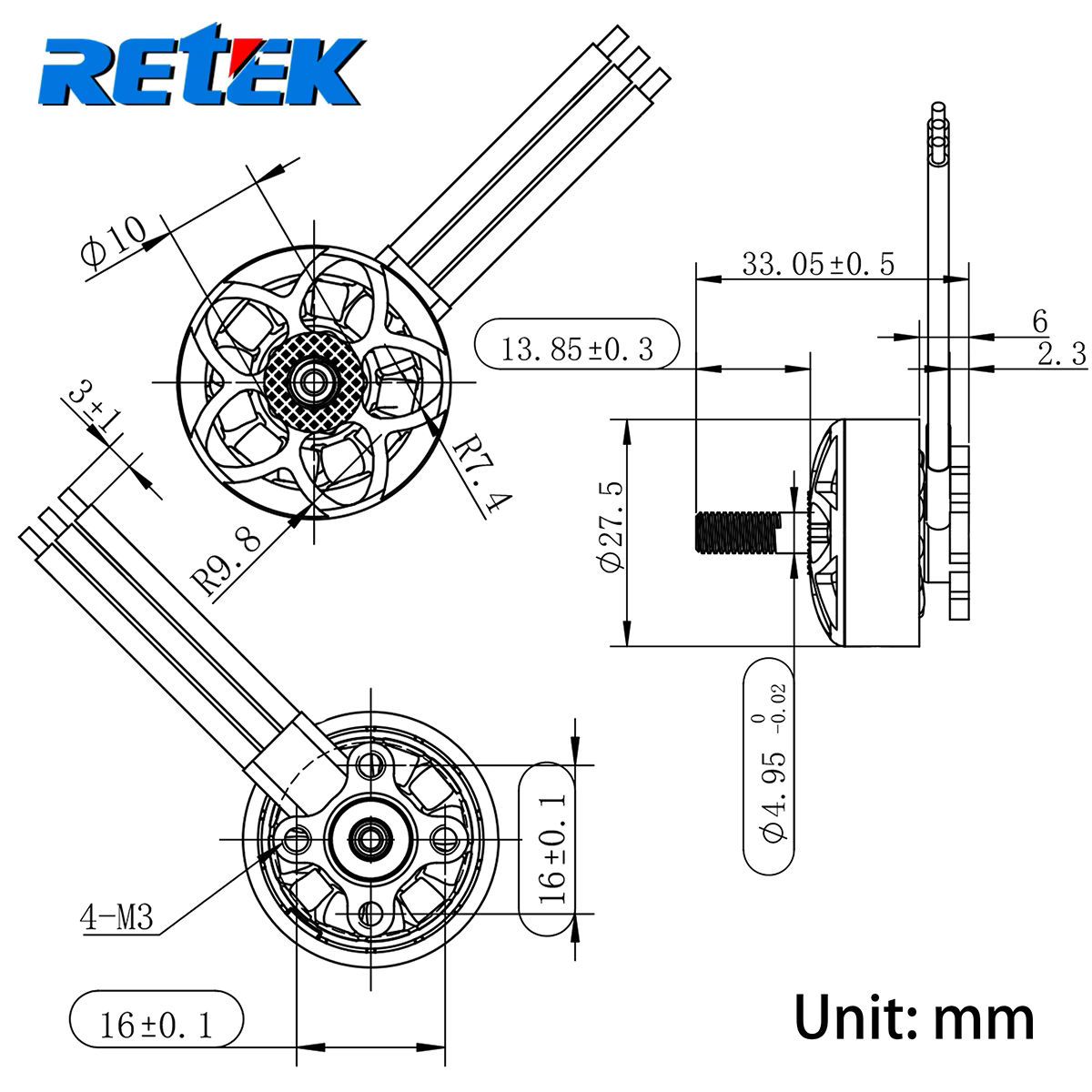

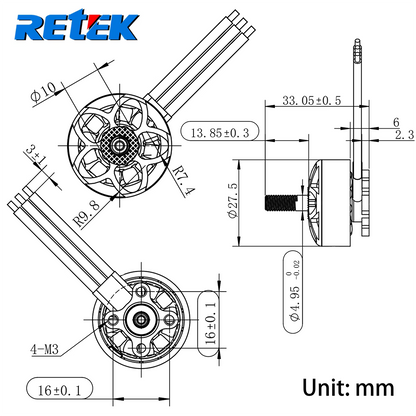

The motor measures 33.05 mm high × 27.5 mm wide, uses a 5 mm shaft, and weighs approximately 38.35 g. A 150 ± 5 mm motor cable provides plenty of length for installation on most standard 5-inch FPV frames.
Specifications
- Brand: RETEK
- Model: LN2207
- KV: 1960KV
- Motor Size: 2207
- Recommended Battery: 4S-6S LiPo
- Construction: Unibell
- Case: CNC-machined aluminum
- Shaft Material: Carbon steel
- Windings: Oxygen-free copper wire
- Shaft Diameter: 5 mm
- Motor Mount Screws: M3
- Dimensions: 33.05 × 27.5 mm
- Cable Length: 150 ± 5 mm
- Weight: Approx. 38.35 g

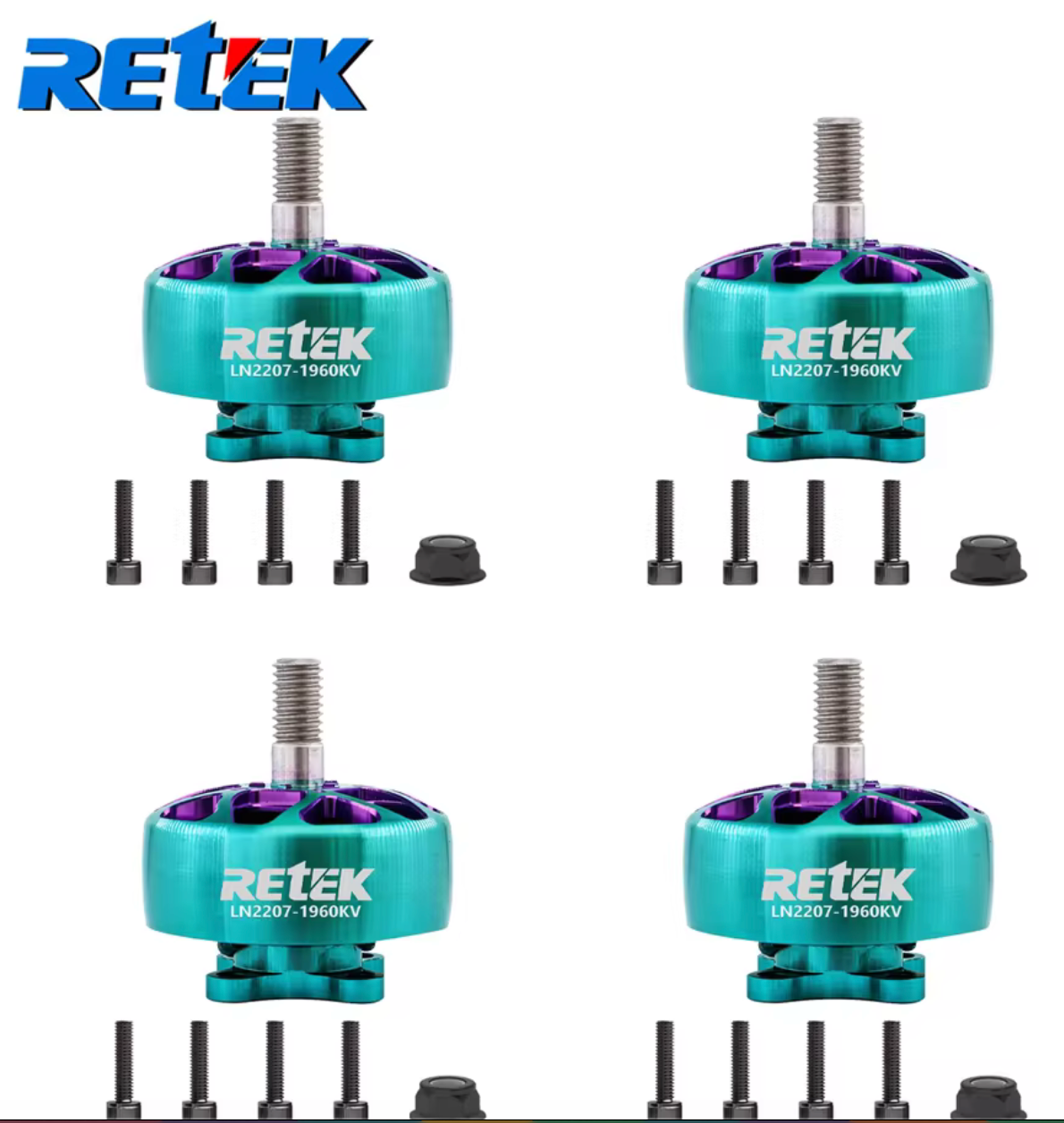

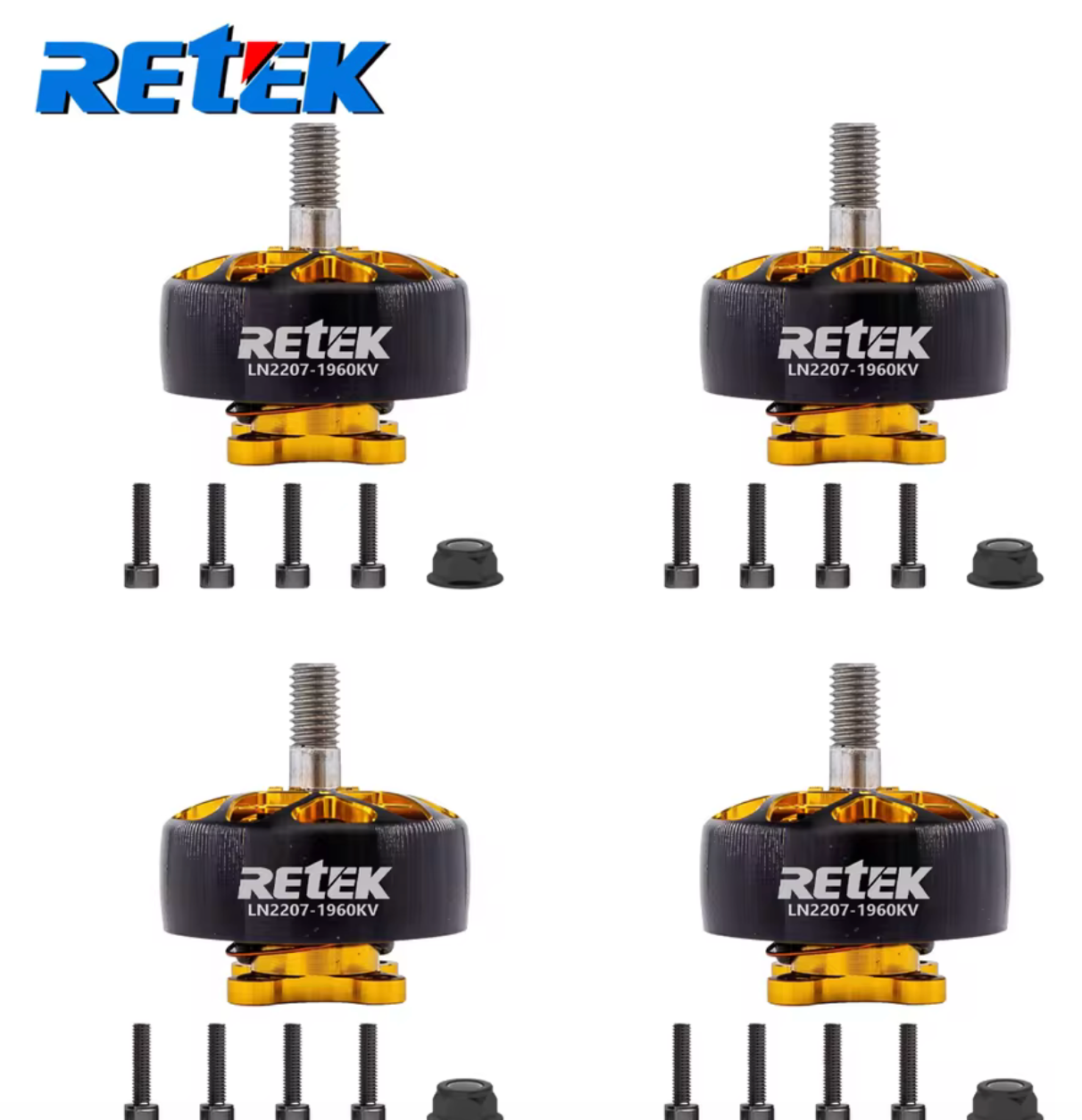

Package Includes: 1 × RETEK LN2207 1960KV Brushless Motor
