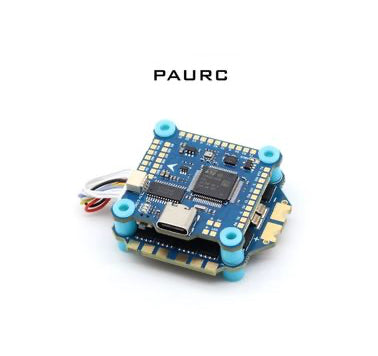

PAURC F405 8S 70A Stack

PAURC F405 8S 70A Stack

$60.00 USD
$60.00 USD
Sale Sold out
Upgrade your next FPV racing or freestyle drone with the PAURC F405V2 8S 70A AM32 Stack; a compact, high‑performance FC stacked with a powerful 4‑in‑1 ESC capable of handling 8S voltage and continuous 70 A current.



Specifications:

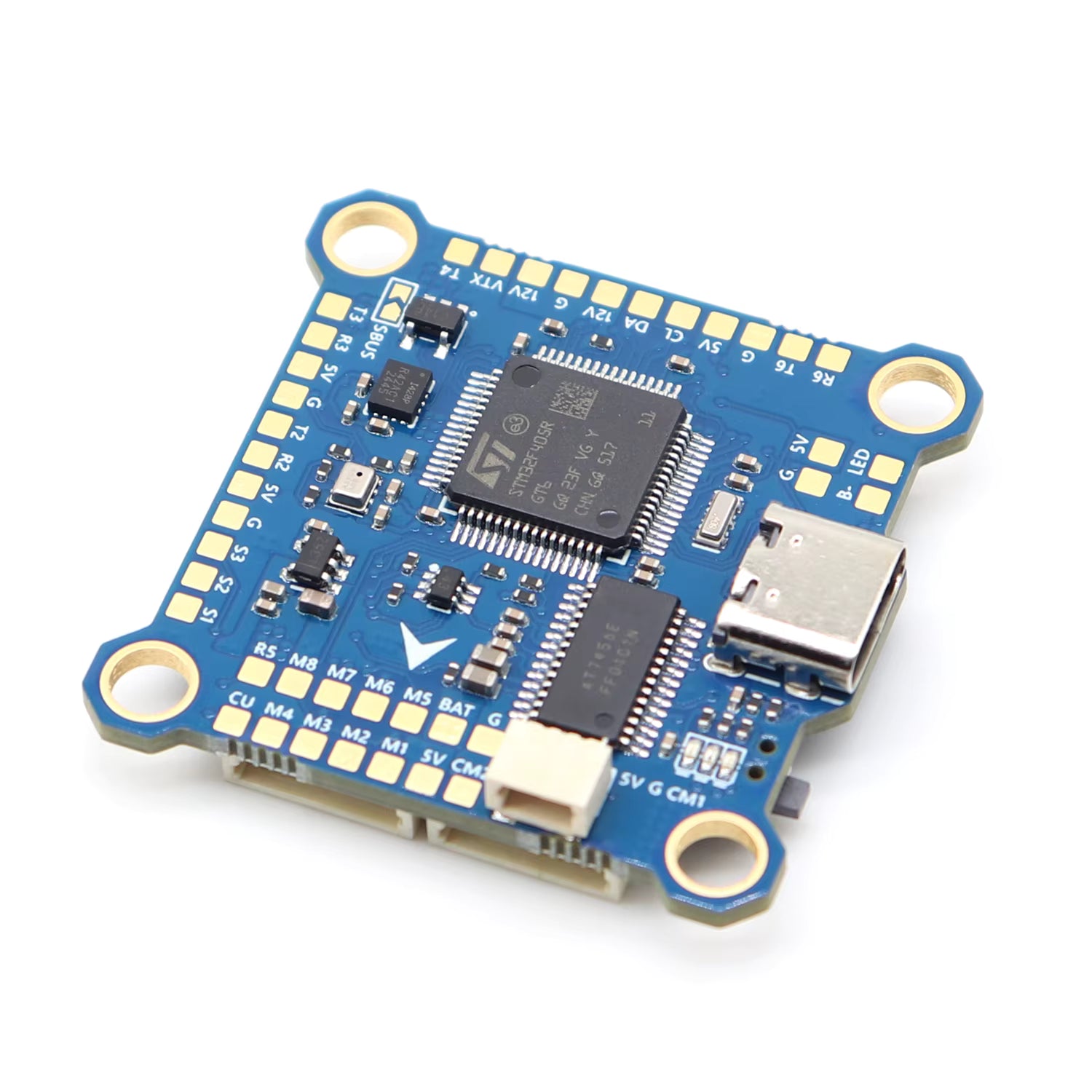

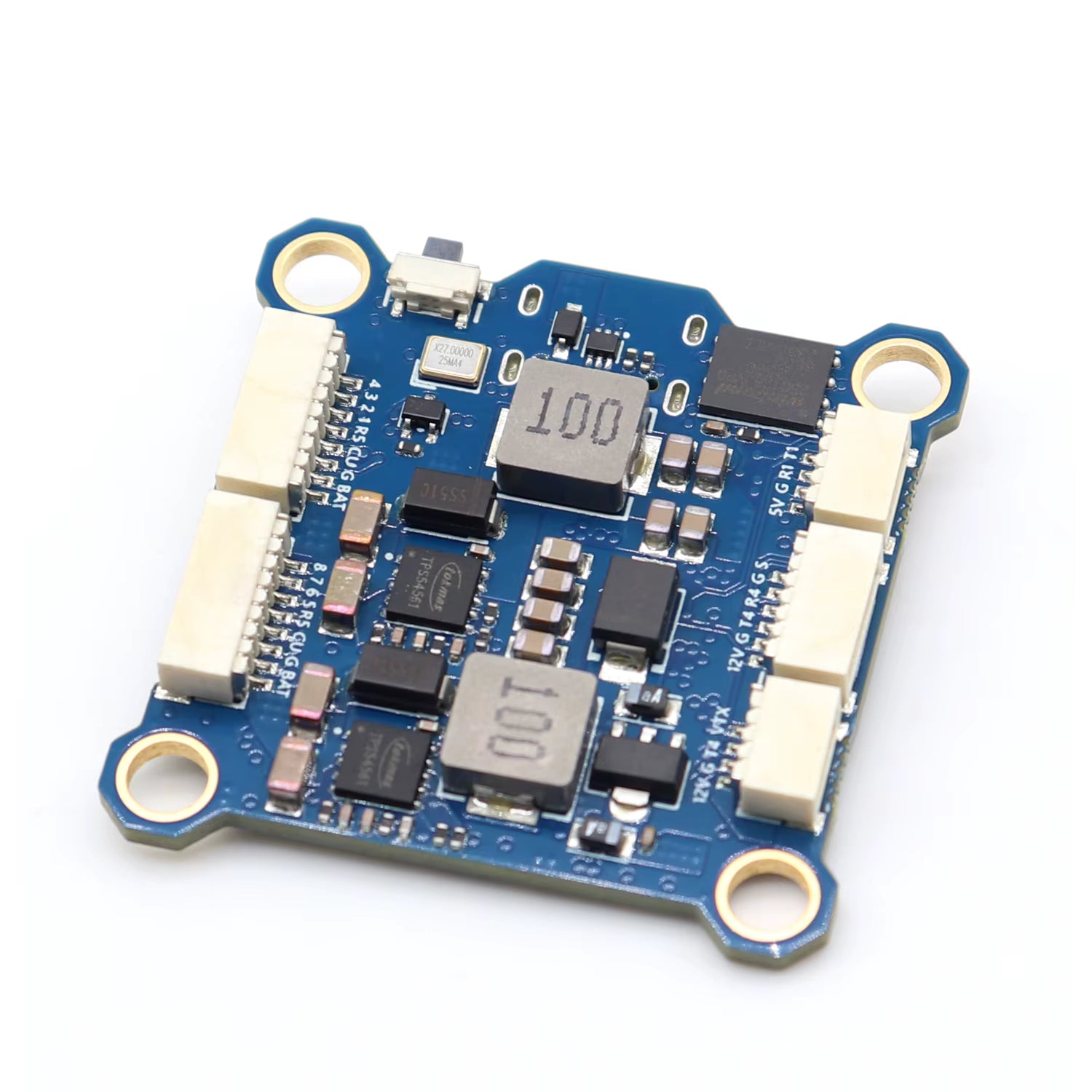

FC:

- MCU: STM32F405RGT6

- Gyroscope: ICM42688

- Target firmware: MATEKF405TE

- Battery: 3-8S

- BEC: 5V 3A / 12V 2A

- USB: Type-C

- Barometer: SPL06

- OSD chip: AT7456E

- Camera: Supports dual camera switching

- BLack box: 16M

- Installation hole size: 30.5x30.5mm/M4

- Size: 37mm x37mx8m

- Weight: 8g

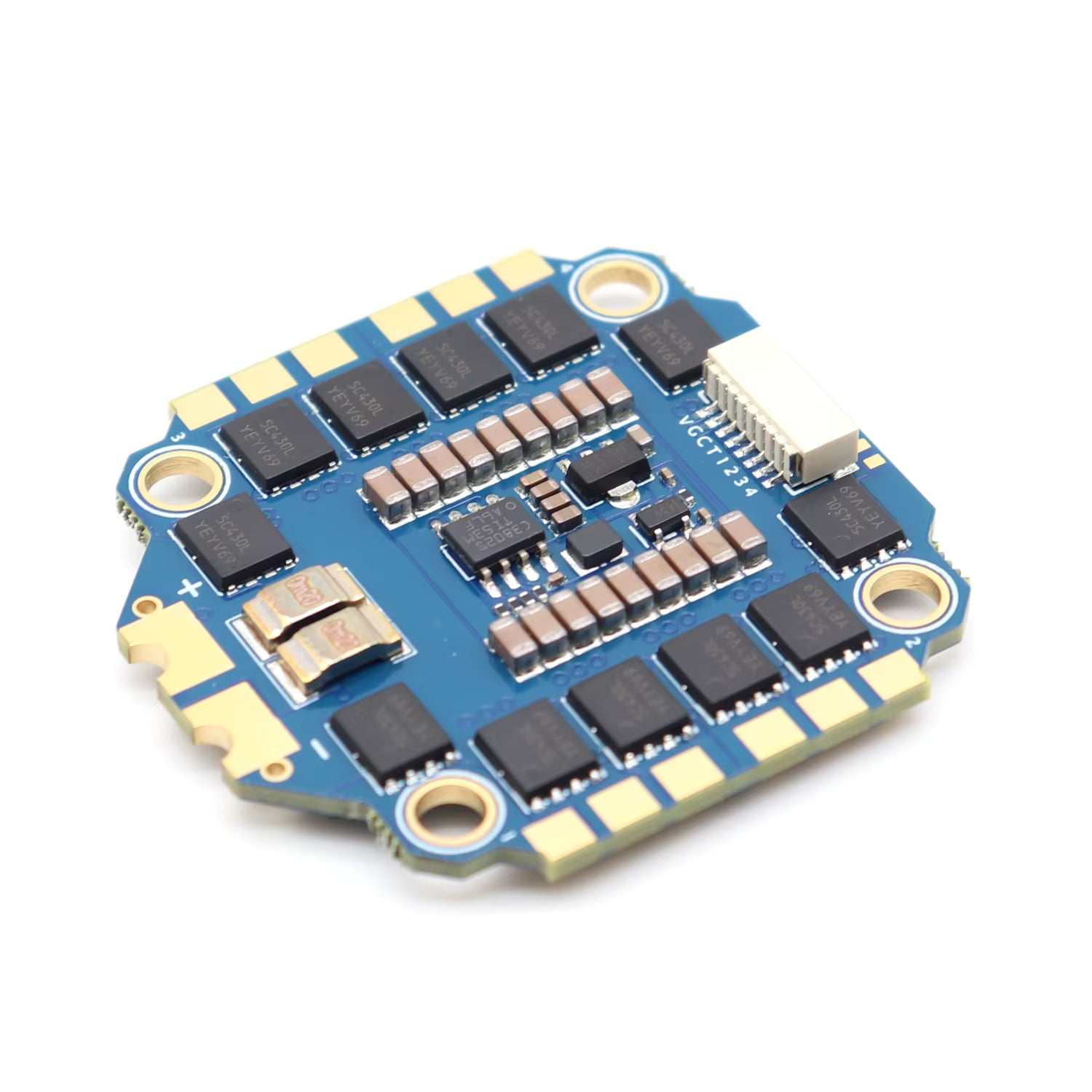

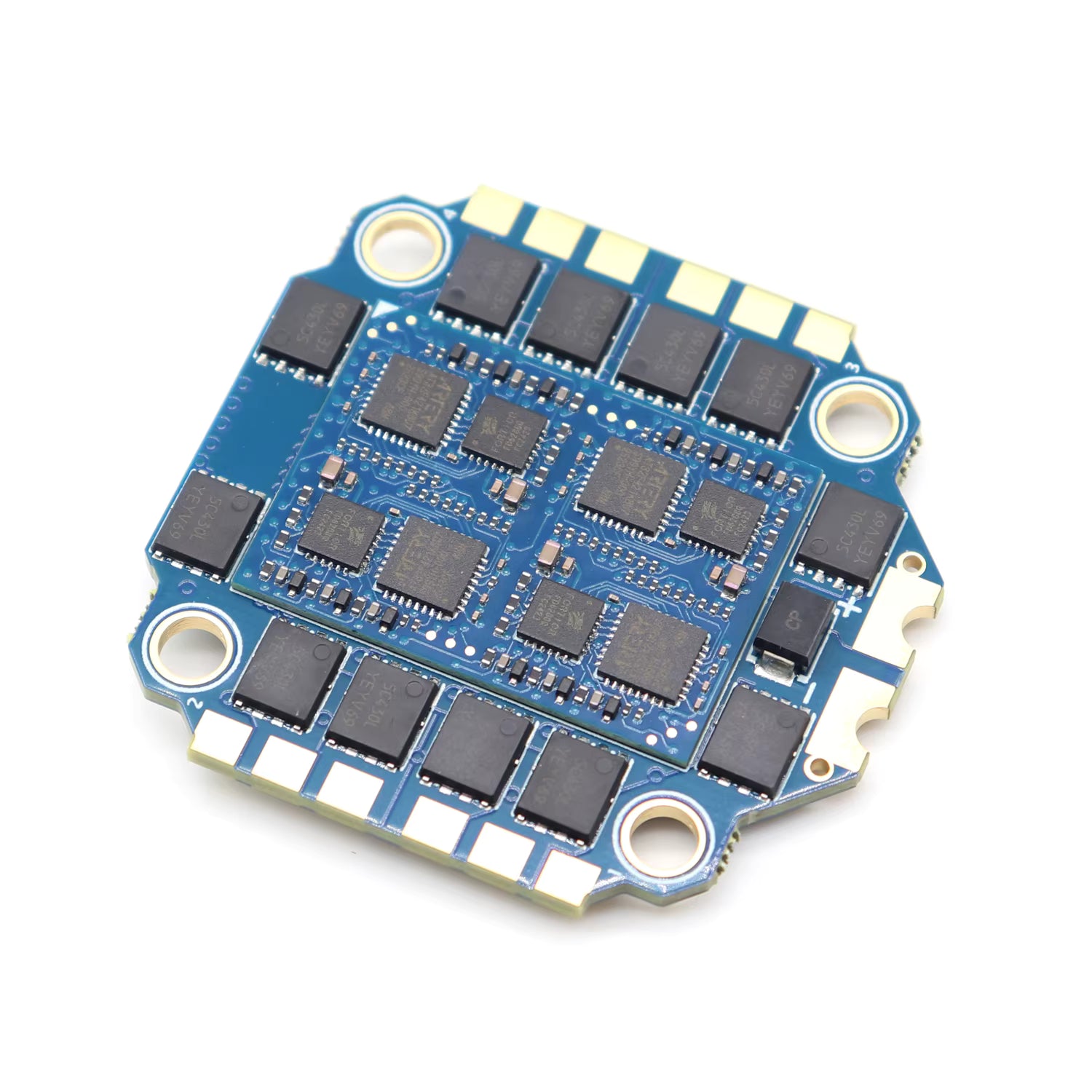

ESC:
- MCU: AT32F421K8U7

- Specifications: 70A

- Program: AM32_2.18

- MOS: ONSEMI_NTMFS5C430NLT1G

- Continlous current: 70AX4

- Transient current: 75A-10S

- TVS protection diode: Yes

- Electrolytic capacitor: 1000uF Low ESR Capacitor

- Motor protocol: Dshot(All),PwM, Oneshot,Multishot, etc

- Battery: 3-8S Lipo

- Ameter: support

- Installation hole size: 30.5x30.5mm/M4

- Size: Length 45x43x7mm

- Weight: Bare board 16g
