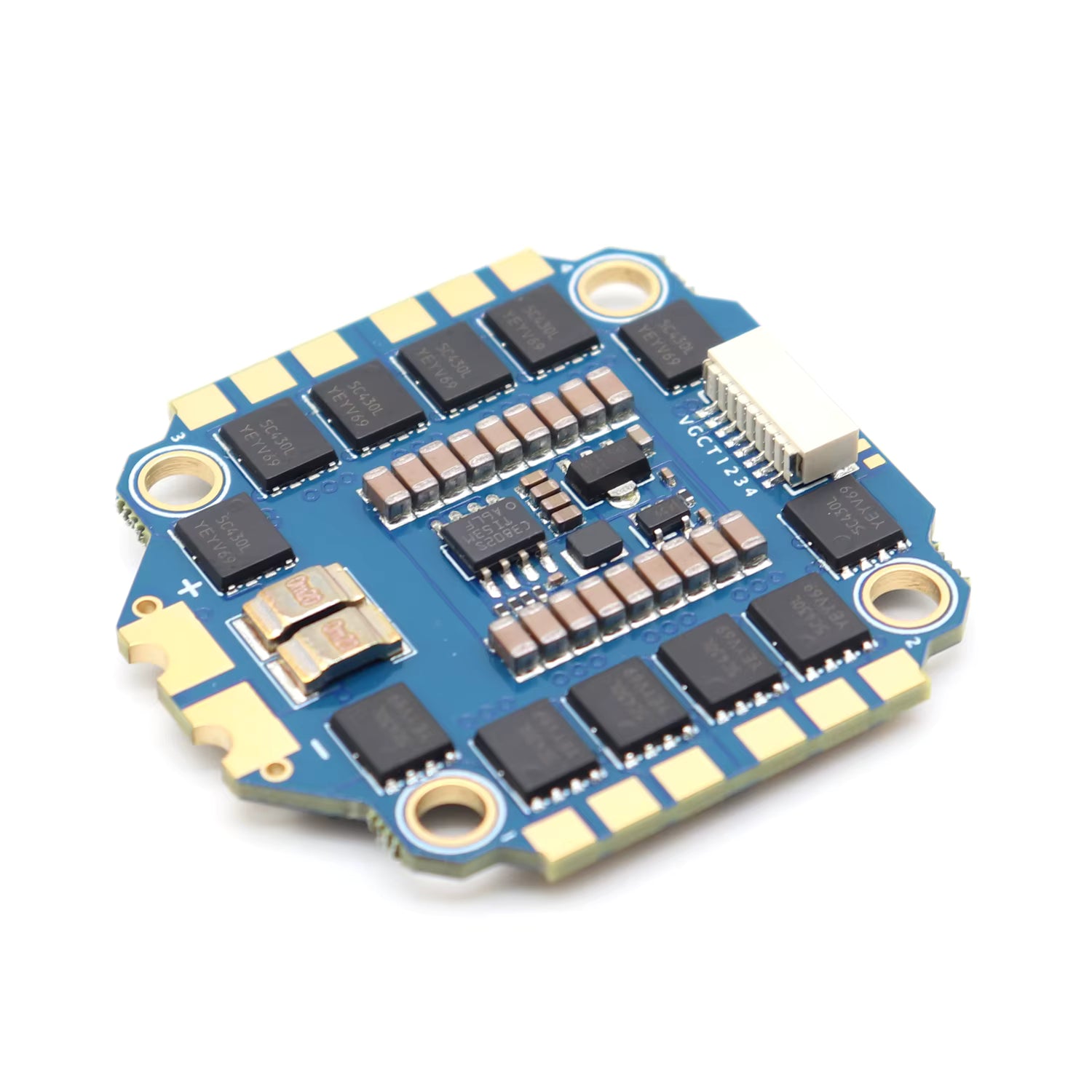

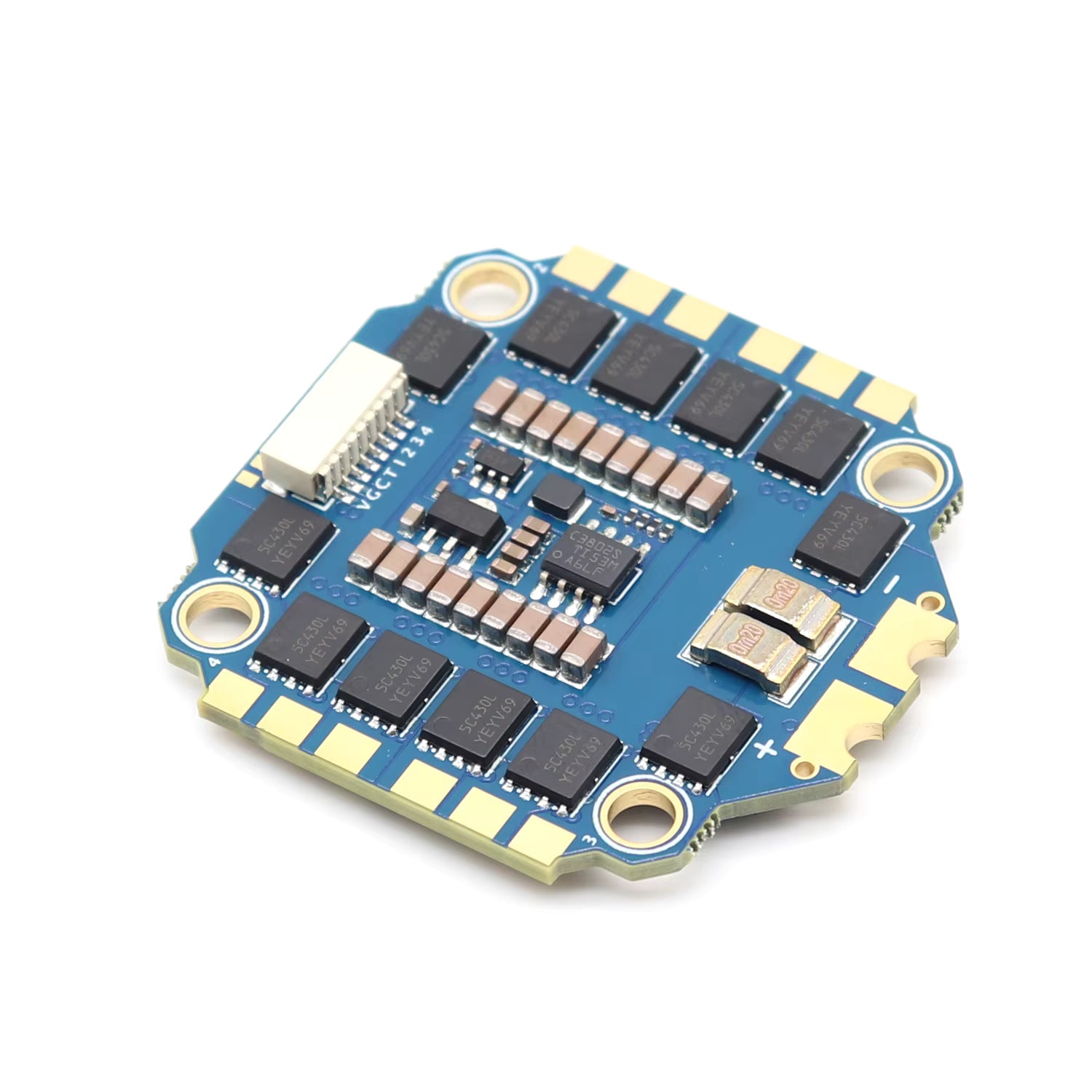

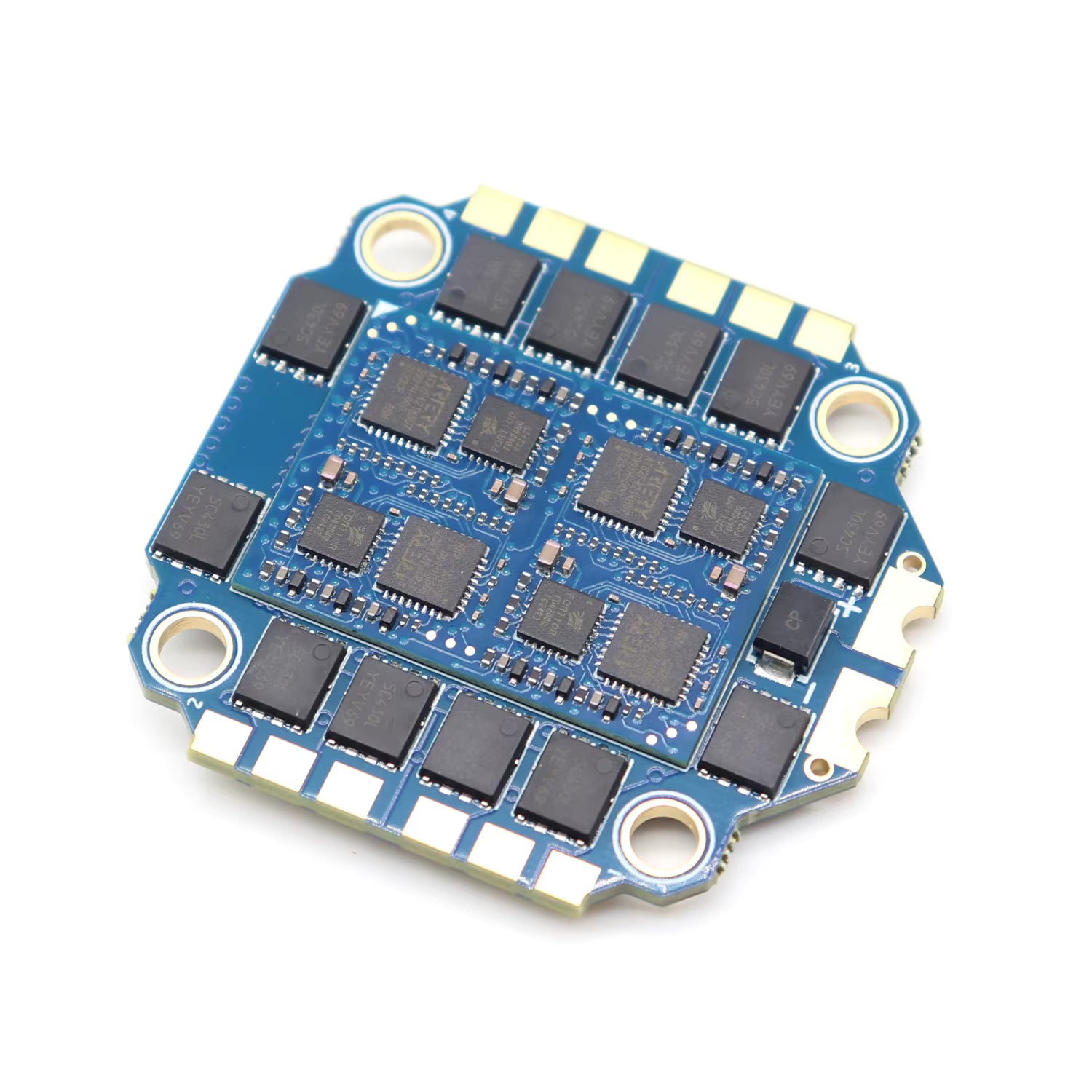

PAURC AM32 8S 70A ESC

Specifications:

MCU: AT32F421K8U7

Specifications: 70A

Program: AM32_2.18

MOS: ONSEMI_NTMFS5C430NLT1G

Continlous crent: 70AX4

Transient curent: 75A-10S

TVS protection diode: have

Electrolytic capacitor: 1000uF Low ESR Capacitor

Motor protocol: Dshot(All),PwM, Oneshot,Multishot, etc

Battery imput: 3-8S Lipo

Ameter: support

Power Output: VBAT

Installation hole position: 30.5x30.5mm/M4

Size: Length 45x43x7mm

Weight: Bare board 16g
