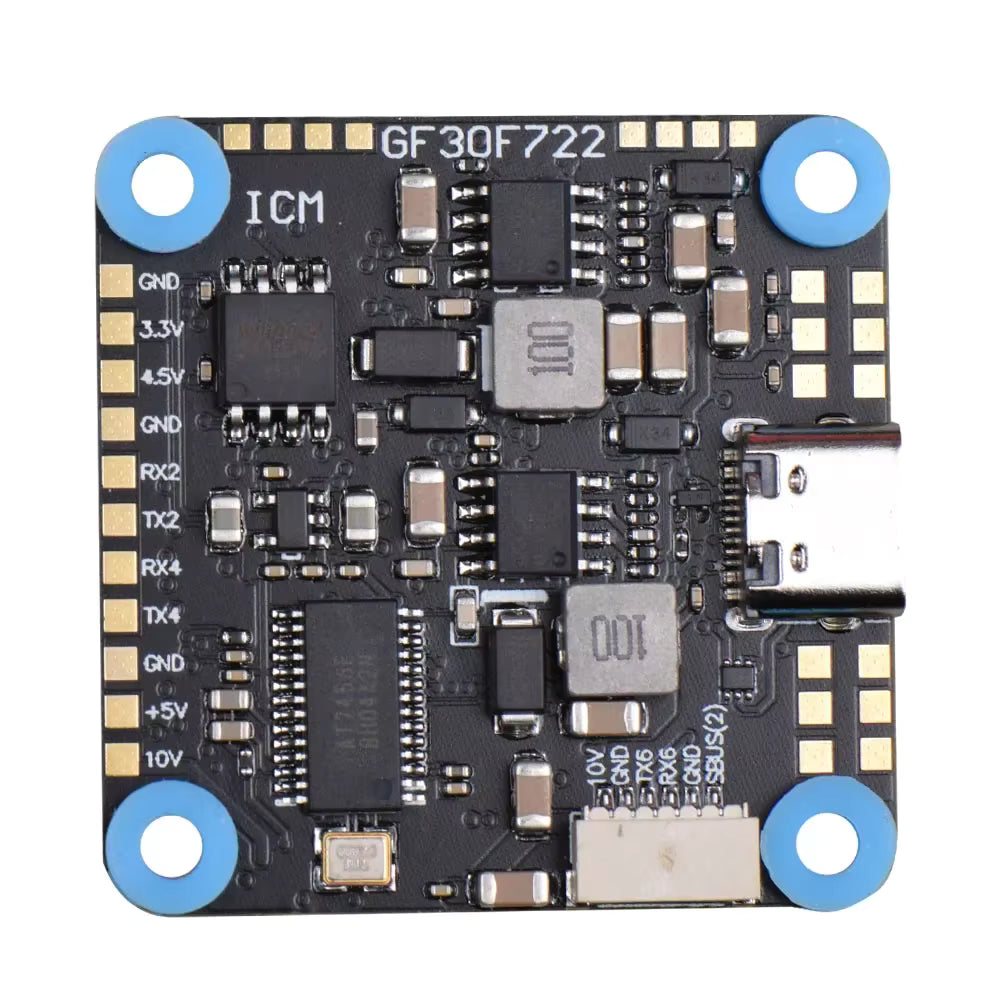

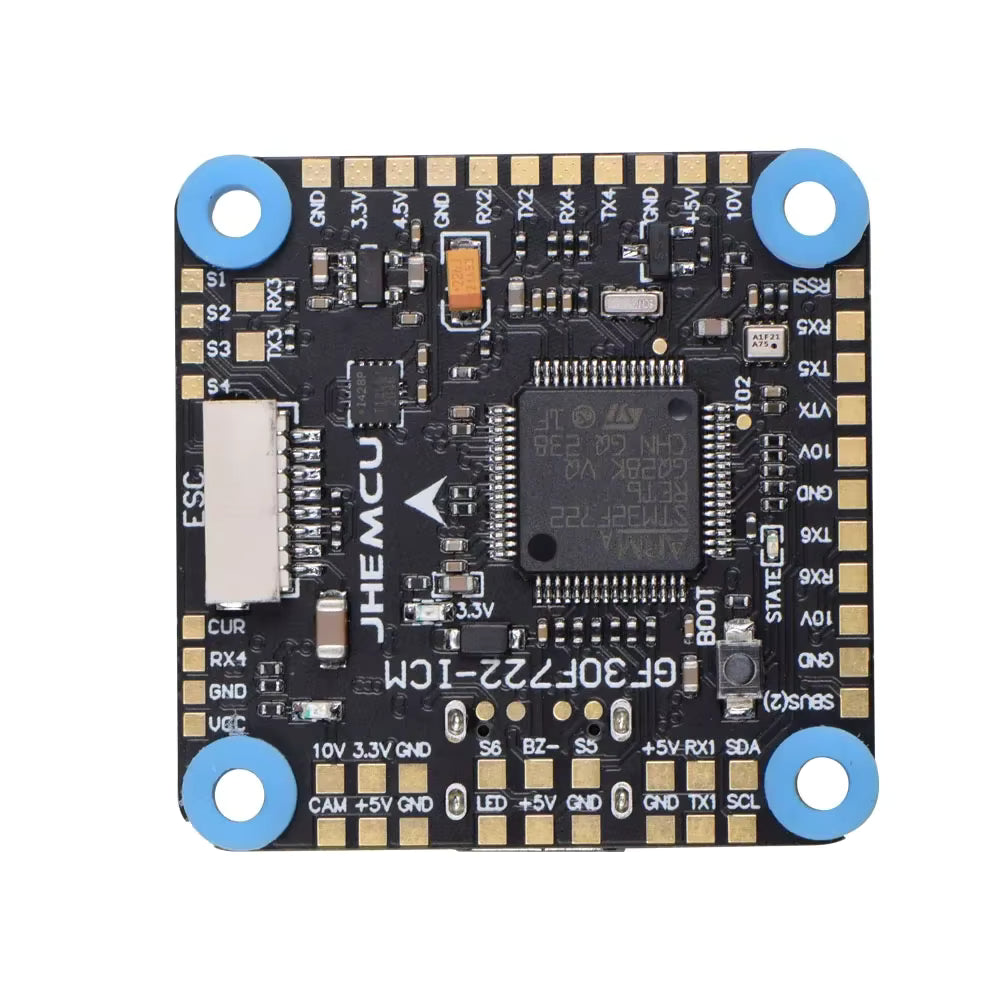

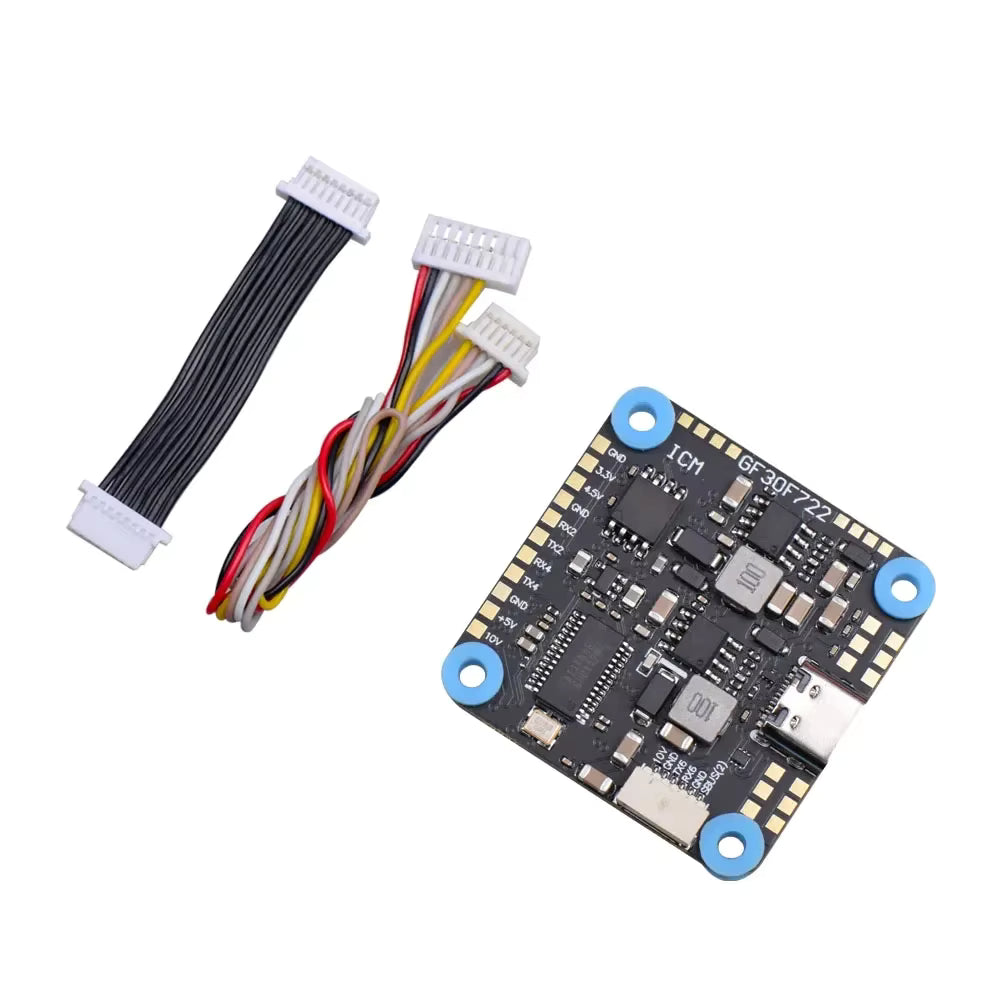

JHEMCU GF30F722-ICM FC

JHEMCU GF30F722-ICM F7 Flight Controller – 3–8S with ICM42688 & Barometer

The JHEMCU GF30F722-ICM is a powerful 30×30mm F7 flight controller built for high-performance FPV drones running 3S–8S LiPo. Powered by the STM32F722 MCU and the ultra-clean ICM42688 gyro, it delivers fast processing, smooth flight performance, and excellent noise resistance. With built-in OSD, barometer, blackbox, dual BECs, and full digital video support, it’s ideal for freestyle, racing, and cinematic builds.

Key Features

- STM32F722RET6 MCU (F7) – fast and ultra-responsive processing

- ICM-42688-P Gyro + Accelerometer – clean signal & stable flight

- Built-in AT7456E OSD – direct Betaflight OSD support

- Integrated Barometer – altitude hold & advanced navigation

- 16MB Blackbox – onboard flight data logging

- Wide 3–8S LiPo Input (11.4–36V)

- Dual BEC Output:

- 5V / 2.5A (±0.1V)

- 10V / 2A (user-controlled)

- 6 UARTs – maximum peripheral support

- HD Digital VTX Port Support

- LED Strip Support

- Current Sensor + Voltage Sensor Built-in

- Type-C USB Connector

- DFU Button for Easy Firmware Flashing

- Ultra-lightweight: 8.8g

ESC Signal Support

- PWM, Oneshot125, Oneshot42, Multishot, DShot150, DShot300, DShot600

Specifications

Brand: JHEMCU

Model: GF30F722-ICM

MCU: STM32F722RET6

IMU: ICM-42688-P (Gyro + Accelerometer)

OSD: AT7456E

Barometer: Yes

Blackbox: 16MB

Input Voltage: 3–8S LiPo (11.4–36V)

5V BEC: 5V / 2.5A

10V BEC: 10V / 2A (user-controlled)

UARTs: UART1–UART6

I2C: I2C1

USB: Type-C

Firmware: Betaflight 4.3.1 (JHEF7DUAL.HEX)

Board Size: 36 × 36 mm

Mounting Pattern: 30.5 × 30.5 mm (M4)

Weight: 8.8 g

Ideal For

- 5"–7" FPV drones

- Freestyle & racing builds

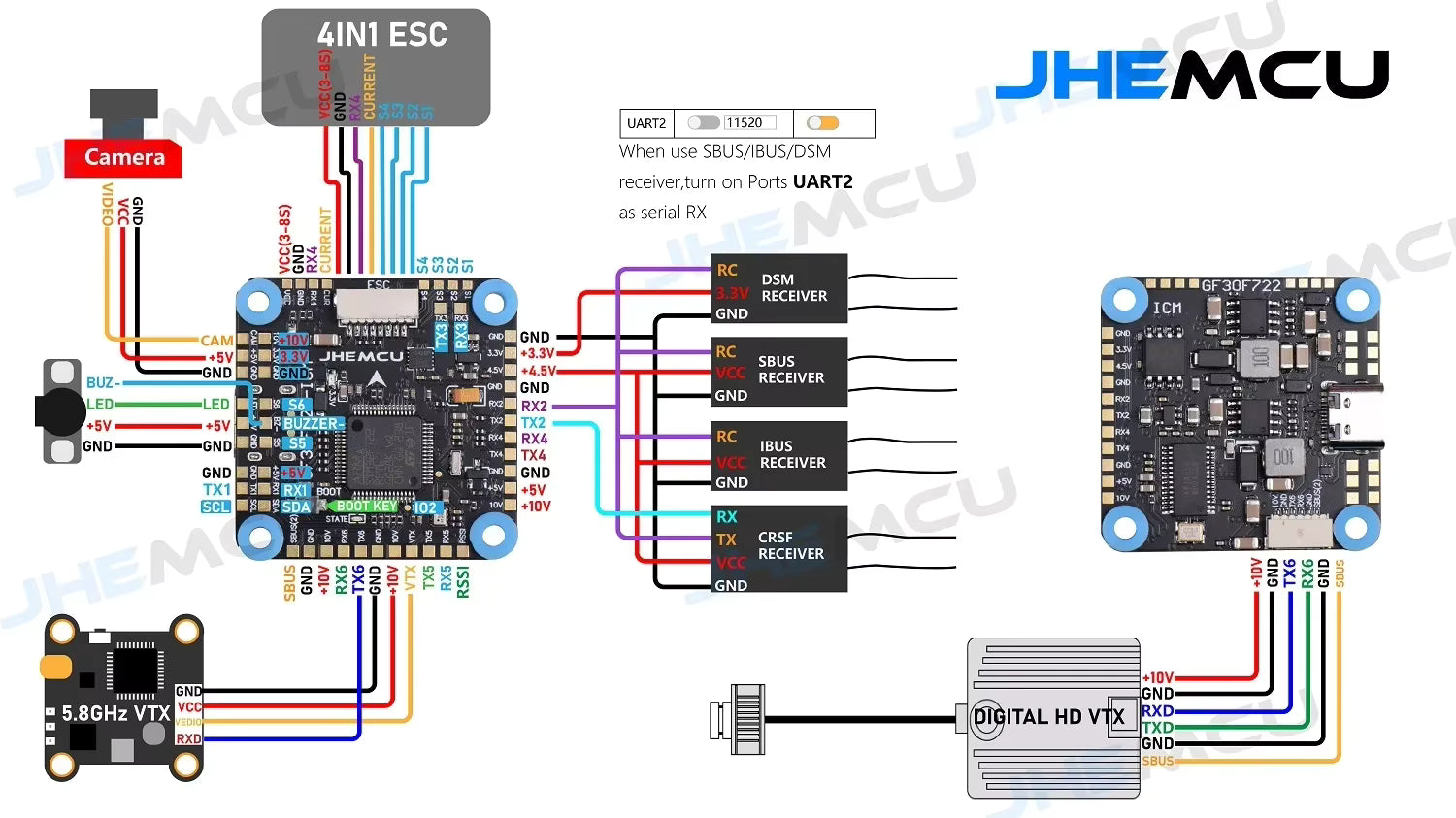

- DJI / Walksnail / HDZero digital systems

- Pilots who want clean gyro performance on 8S power
