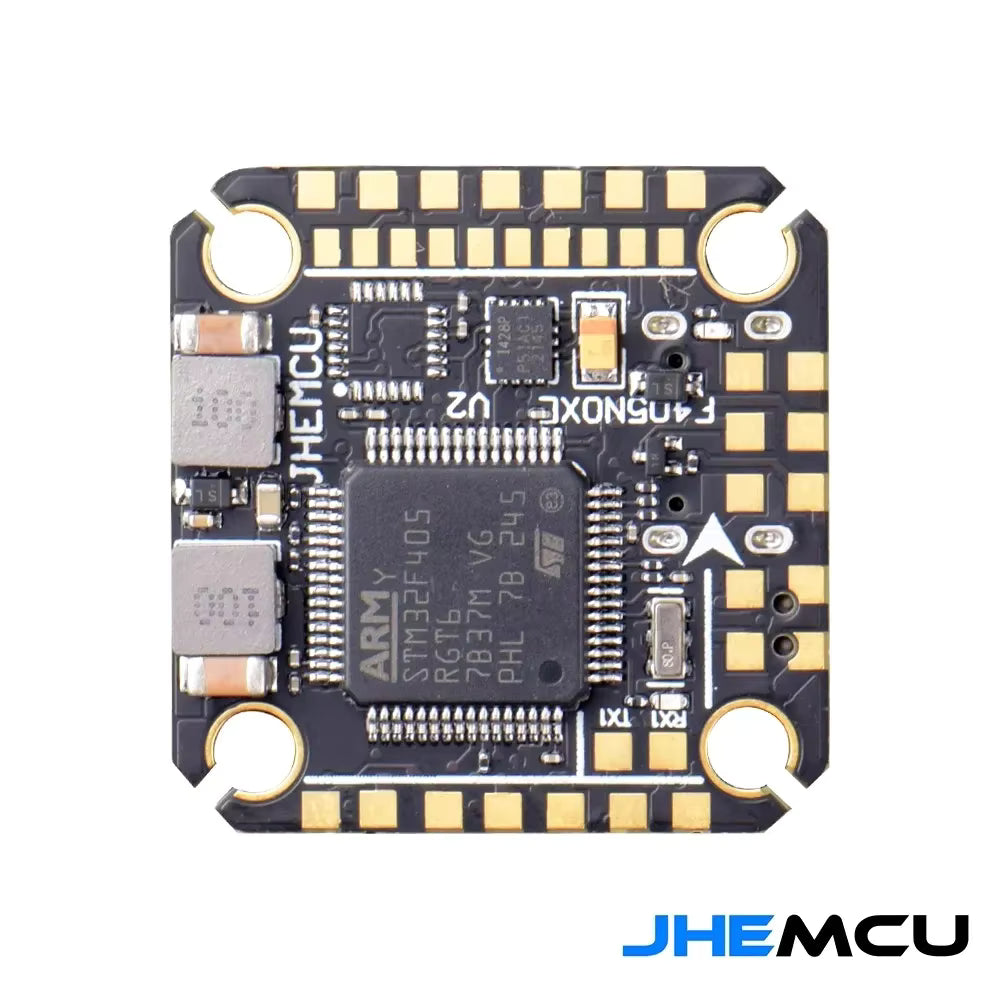

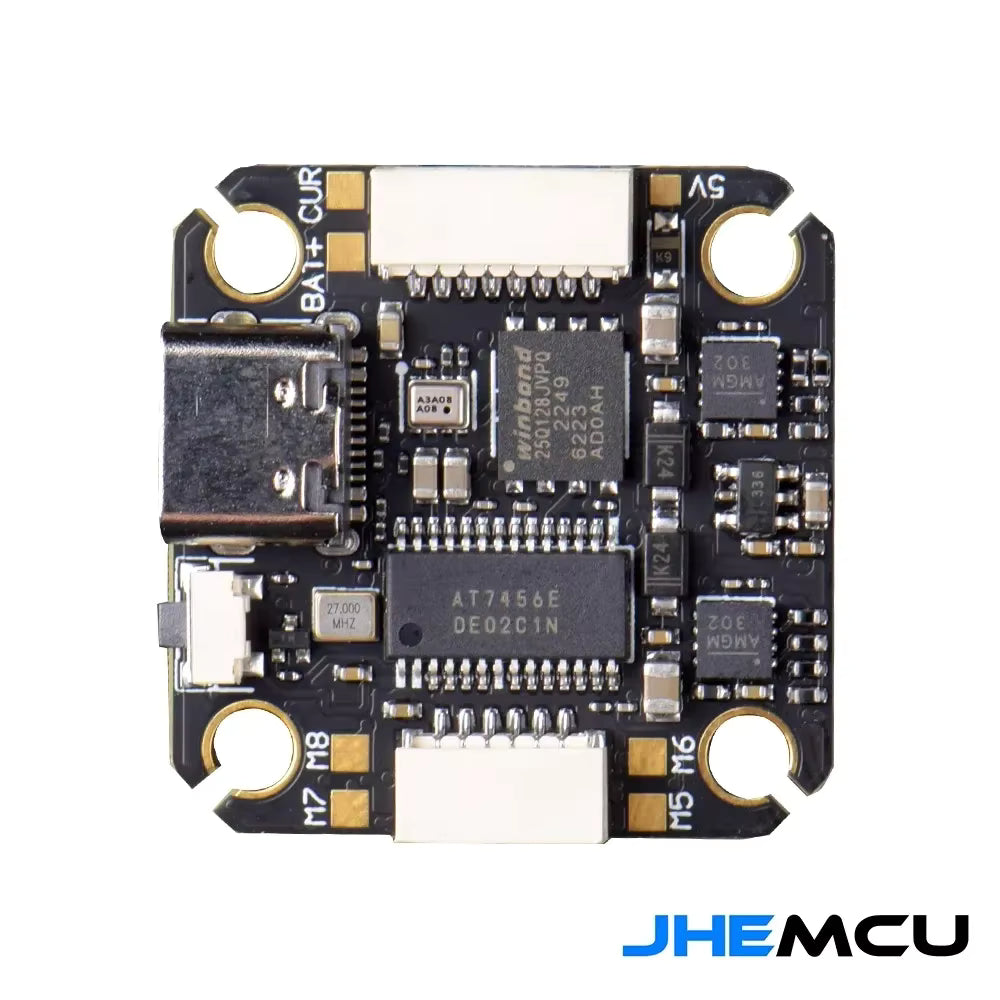

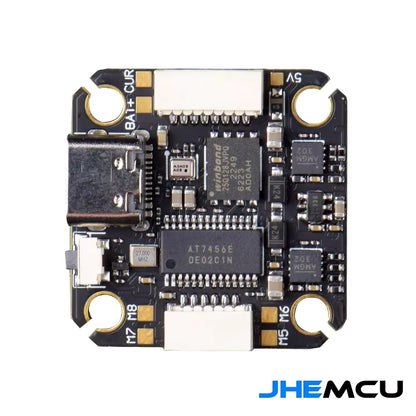

JHEMCU F405 NOXE V2 20x20mm
JHEMCU F405 NOXE V2 20x20mm
Couldn't load pickup availability
The JHEMCU F405 NOXE V2 20x20 Flight Controller is a powerful and compact FC built for performance-driven freestyle and racing builds. Featuring the reliable STM32F405 processor and a modern ICM42688 gyro, it delivers smooth flight performance and excellent noise handling. Its 20x20 mounting makes it perfect for lightweight 3–5” builds where space and weight matter. With multiple UARTs, onboard OSD, and broad Betaflight support, it offers strong flexibility for digital or analog setups.
Specifications:

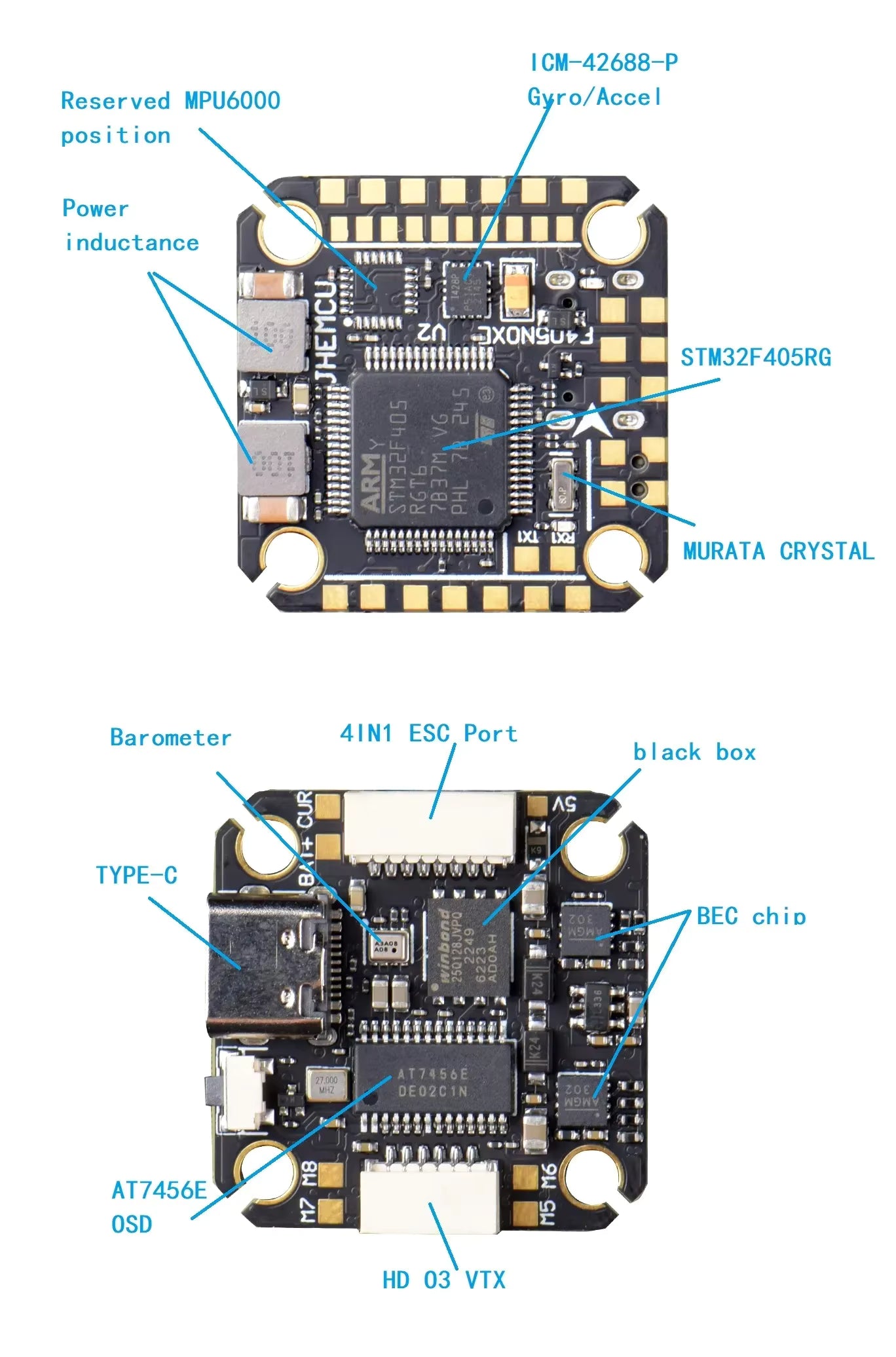

- MCU: STM32F405/168MHZ
- IMU: ICM-42688-P/Gyro/Accel
- OSD: AT7456E
- Baro: YES
- Blackbox:1 6MB
- Input voltage: 3S-6S(11.5V-26V)
- 5V-BEC: 5V/2.5A ±0.1V
- 10V-BEC: 10V/2A ±0.1V

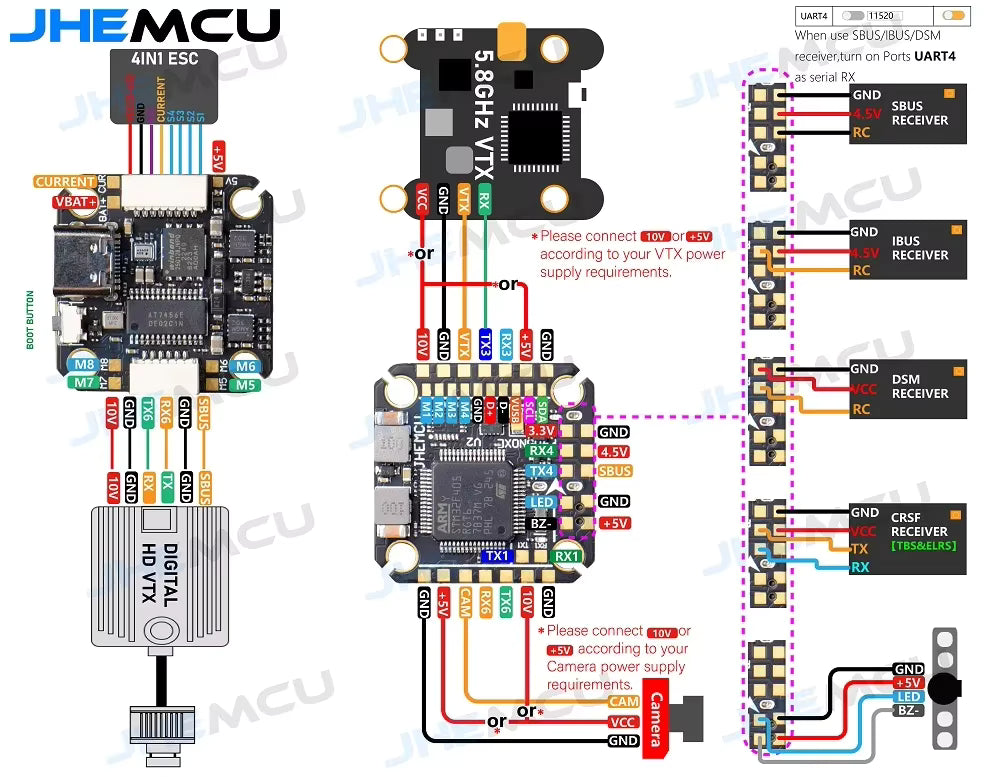

- Receiver: ELRS(CRSF), TBS(CRSF), SBUS, IBUS, DSM2, DSMX
- GPS pads: YES
- HD O3: YES
- UART: UART1, UART3, UART4, UART6
- IIC: IIC1
- Led Strip: YES
- Buzzer: 5V
- ESC signal: Dshot150, Dshot300, Dshot600
- USB: Micro USB
- Current port: YES
- Voltage sensor: YES
- FC Firmware: betaflight_4.4.2 JHEF405PRO.HEX
- Size: 27*27MM
- Mounting Hole: 20*20*3MM
- Weight: 4.6g

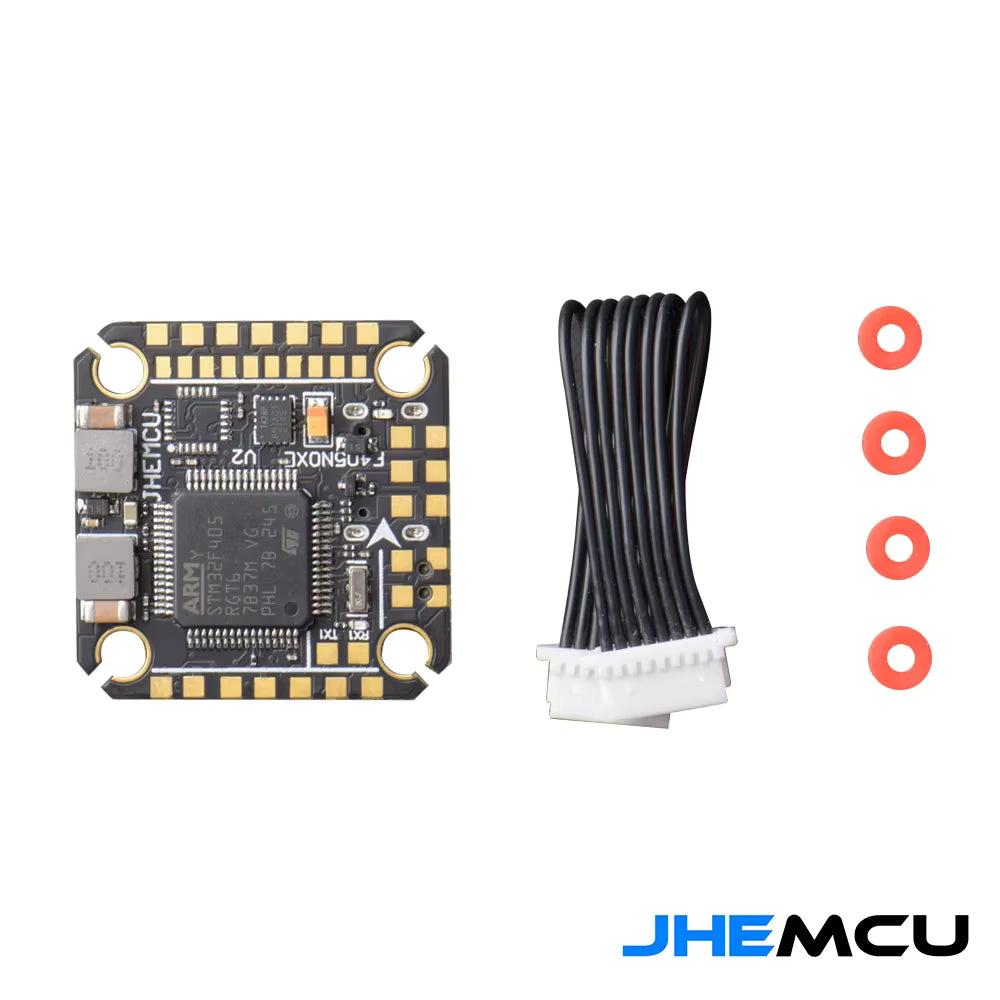

Packaging List:
- F405 NOXE V2 * 1
- M2 * 6.5MM shock absorber * 4
- 8P*1.0MM *1
