JHEMCU 5IN1 AIO

JHEMCU 5IN1 AIO

Regular price $60.00 USD
Regular price Sale price $60.00 USD
Sale Sold out
Quantity

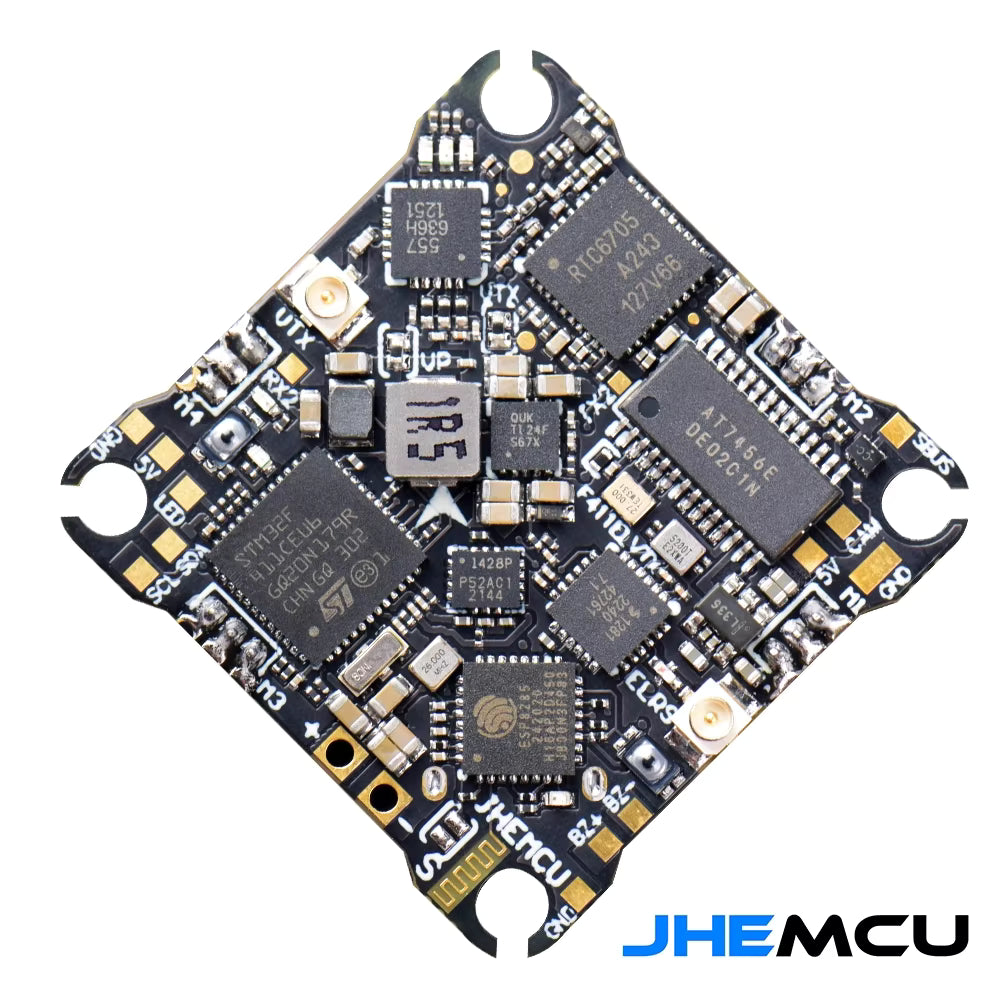

The JHEMCU F411EL ELRS VTX AIO (1S–2S 12A 400mW) is a compact all-in-one flight controller built for ultralight whoops and micro builds. Combining an F411 flight controller, integrated 12A ESC, SPI ELRS receiver, and 400mW analog VTX on a single board, it keeps wiring clean and weight to a minimum. Designed for 1S–2S setups, it’s ideal for 65–85mm whoops or lightweight toothpick builds. With built-in ELRS and adjustable VTX power, it delivers reliable control link and solid video performance in a tiny footprint.



Specifications:

- MCU: STM32F411

- Gyro: ICM42688 (varies by batch)

- ESC: 12A 4-in-1 (BLHeli_S)

- Input Voltage: 1S–2S LiPo

- Receiver: SPI ExpressLRS (2.4GHz)

- VTX Power: 25mW / 100mW / 200mW / 400mW

- VTX Protocol: SmartAudio

- OSD: Built-in Betaflight OSD

- Mounting Pattern: 25.5x25.5mm (whoop pattern)

- Recommended Use: 65–85mm whoops, 2” ultralight builds
