HPXGRC 8S 100A ESC

Specifications:

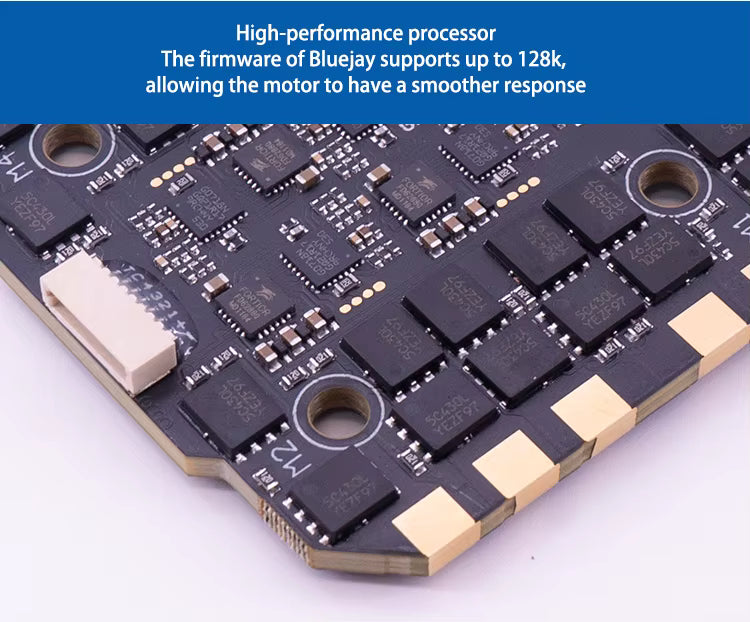

- ESC firmware : blheli_s/bluejay
- Firmware target and version : Q_H_30_24_v0.19.2
- MCU : efm8bb2f16g-c-qfn20r

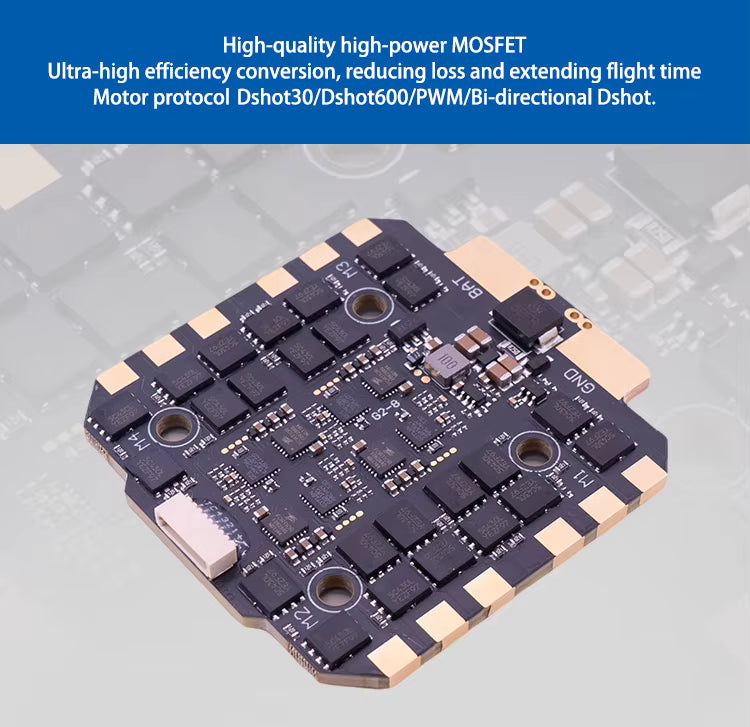

- MOSFET : ON5C430NL
- Continuous maximum current : 100Ax4
- Instantaneous maximum current : 105Ax4 (1s)
- Tvs : Yes
- Electrolytic capactor : 50v 4700uf low ESR capacitor x 1
- Motor protocol : DSHOT300/ DSHOT600/ PWM/ BidirectionalDSHOT.
- Battery input : 3-8S

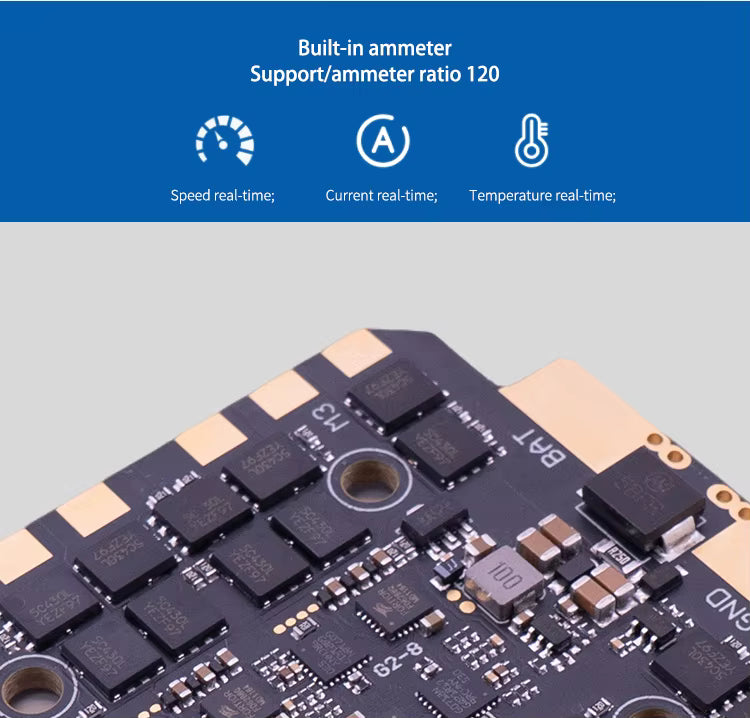

- Ammeter : Support/current meter ratio 120
- Power output : VBAT
- Dimensions : 56mm59mm7mm

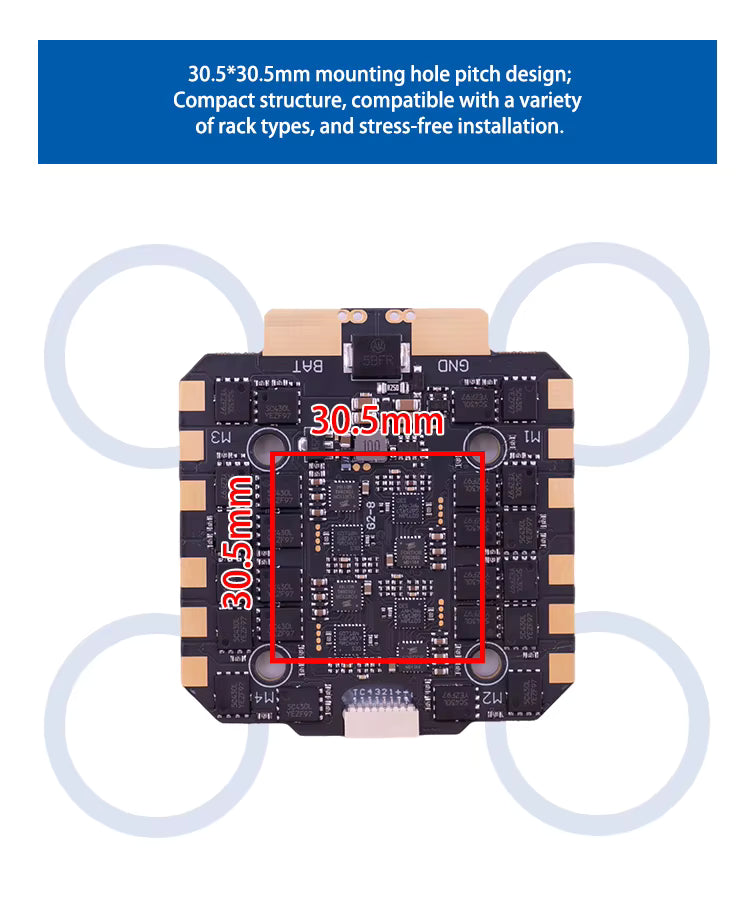

- Mounting holes: 3.5mmx*30.5/m4
- Weight : 30g
- Operating humidity : 20%~85%
- Storage humidity : 20%~ 70%
- Operating : 20-95%
