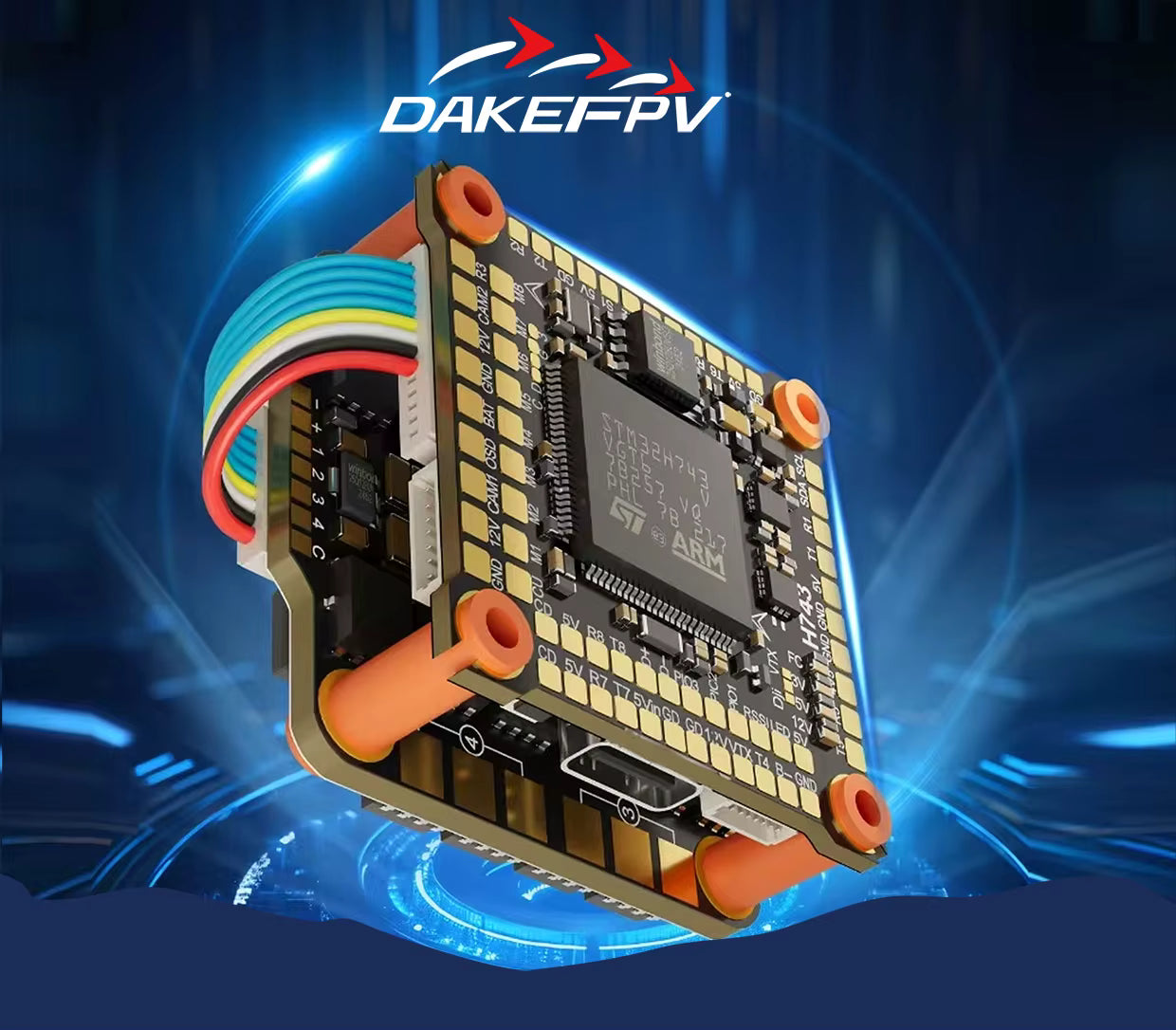

Upgrade your FPV build with the powerful H743 8S 70A Stack — a feature-packed, high-performance FC/ESC combo designed for smooth flight, clean gyro performance, and reliable 6S–8S power delivery. With dual ICM42688P gyros, an independent clean power supply, upgraded MOSFETs, and a true 70A ESC, this stack delivers professional-grade stability at an unbelievable price.

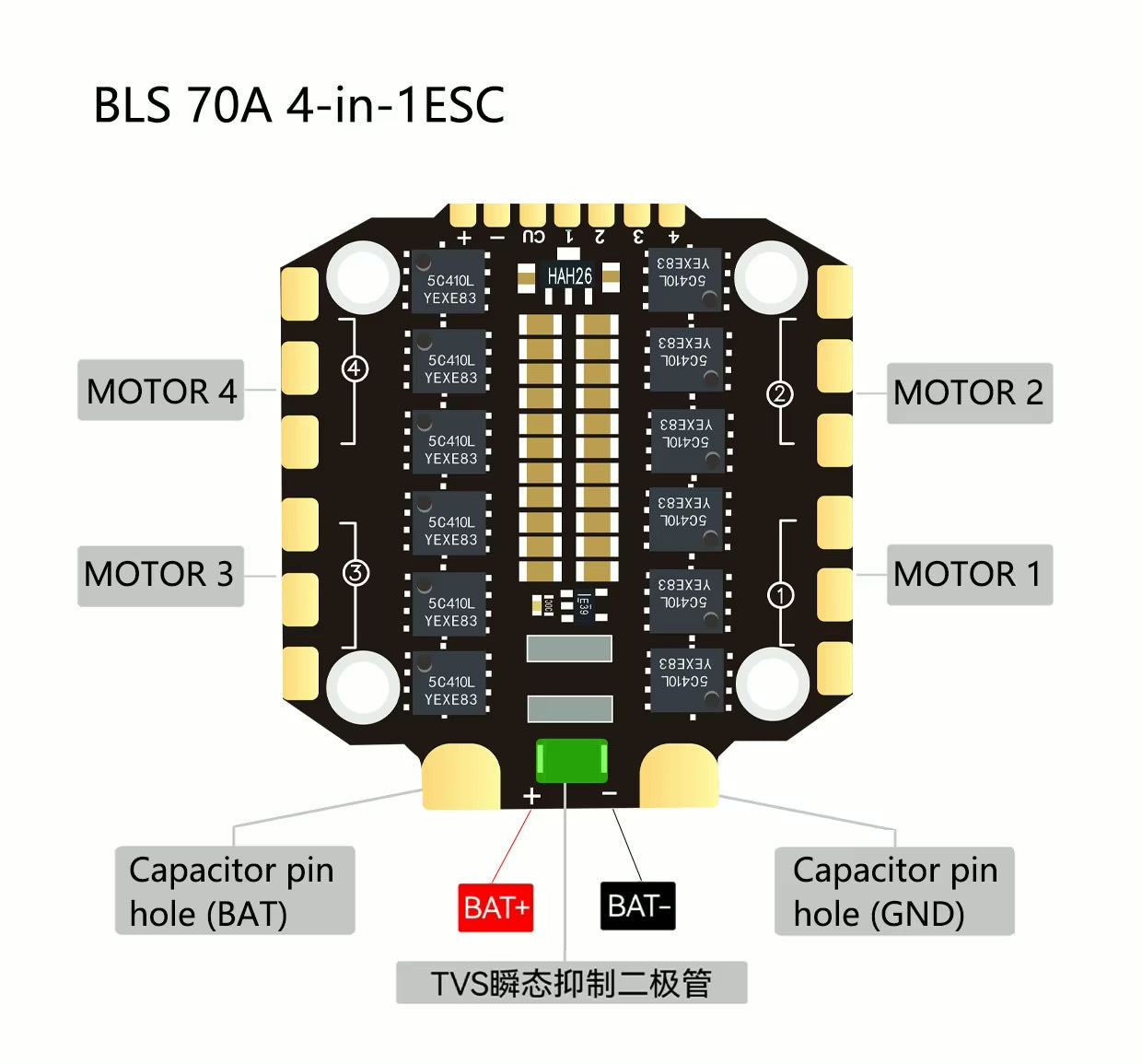

ESC Specifications:
Continuous Current: 70A
Peak Current: 80A (10 seconds)
Voltage Input: 3S–8S LiPo

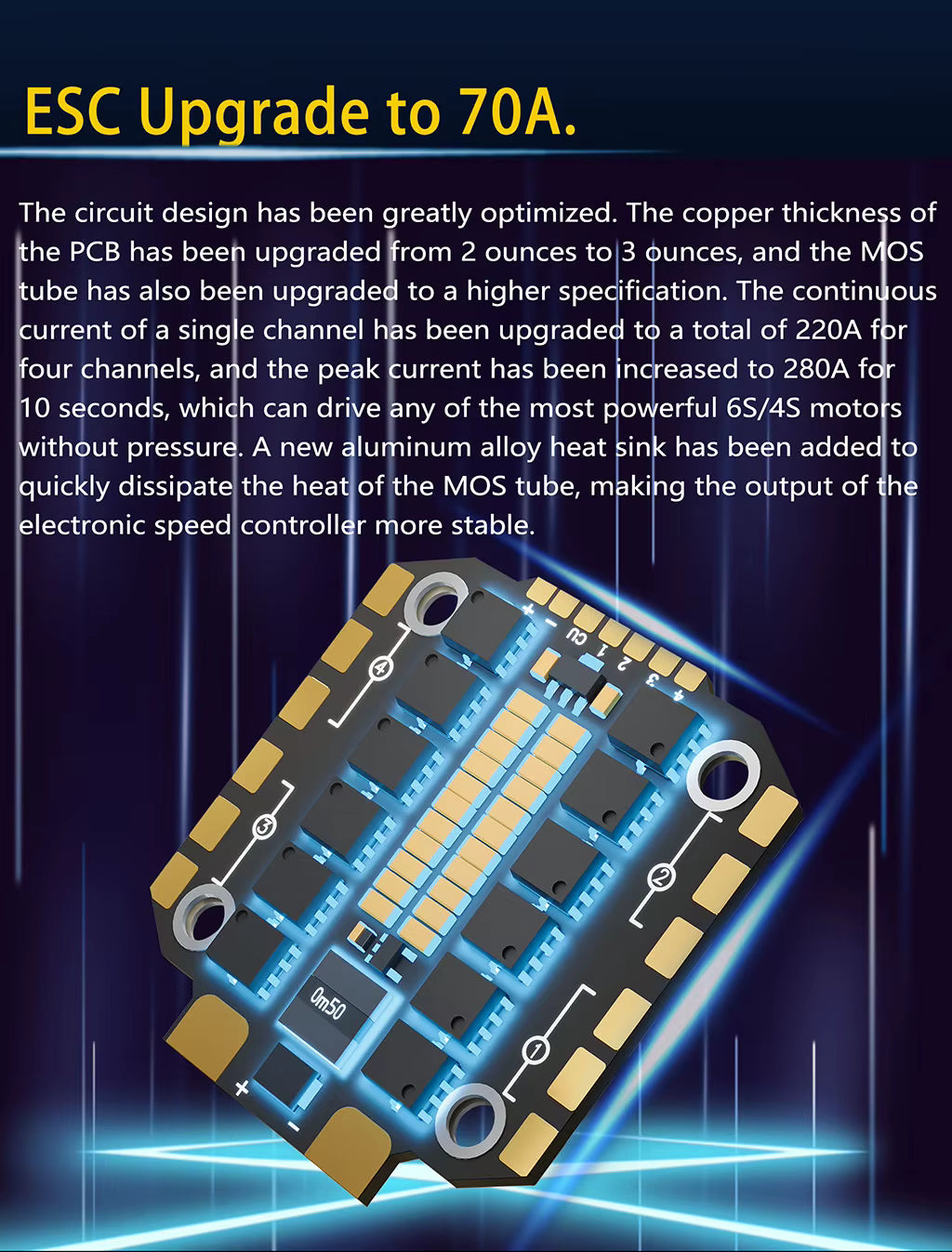

Copper Thickness: Upgraded to 3 oz PCB
Enhanced MOSFETs + aluminum heat-sink for better cooling
Firmware: BLHeli_S

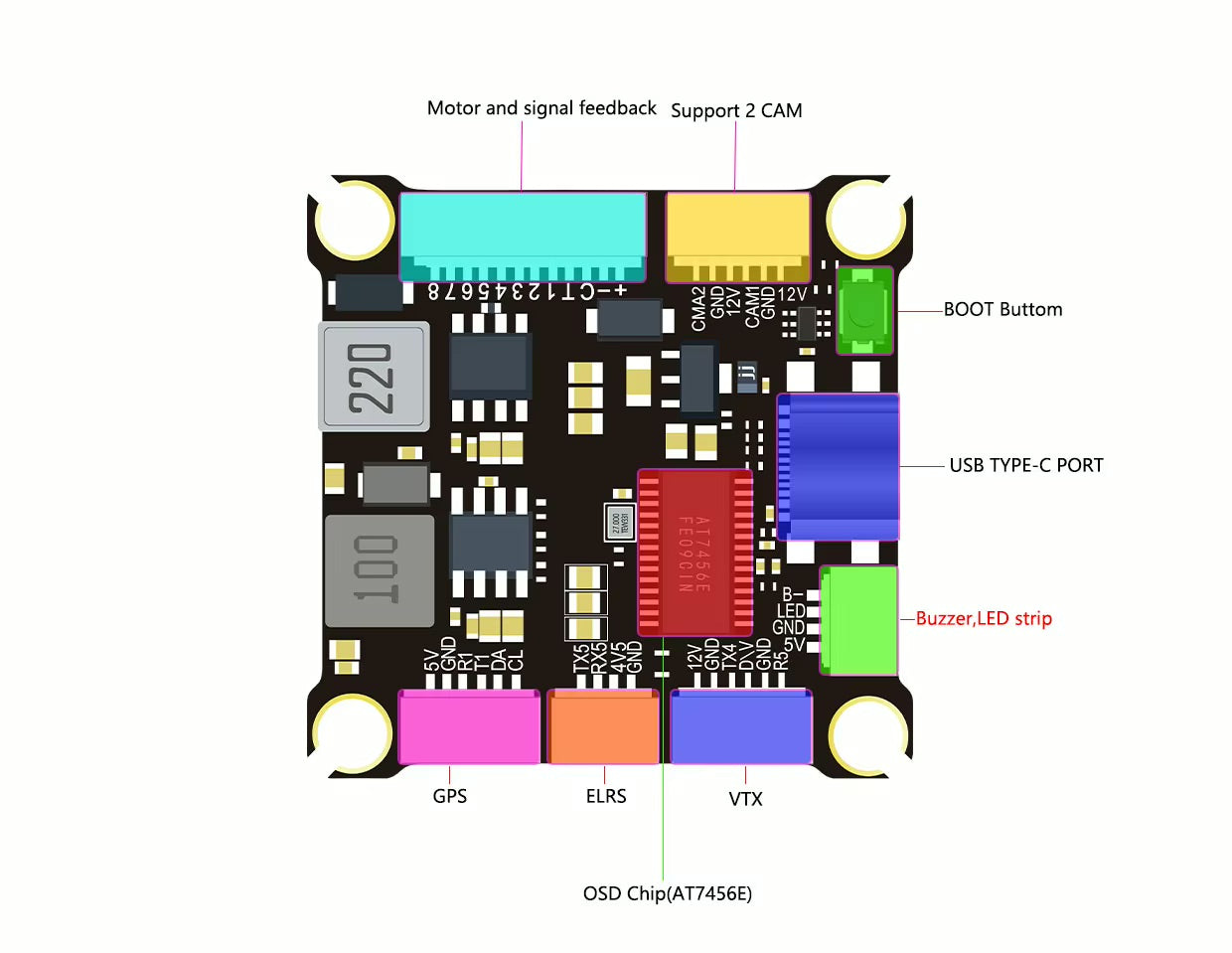

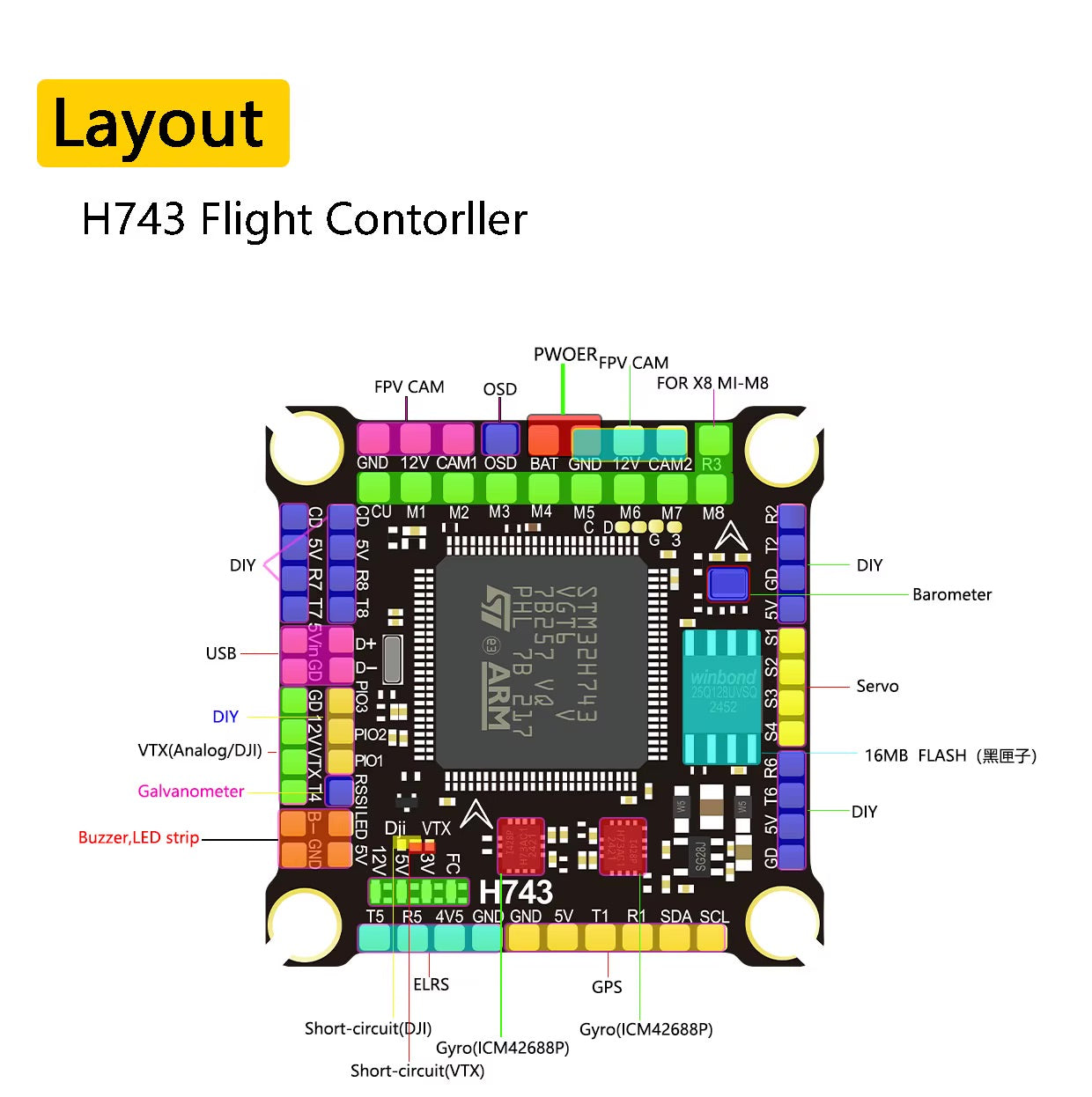

FC Specifications:
Main Chip: STM32H743
Gyros: Dual ICM42688P

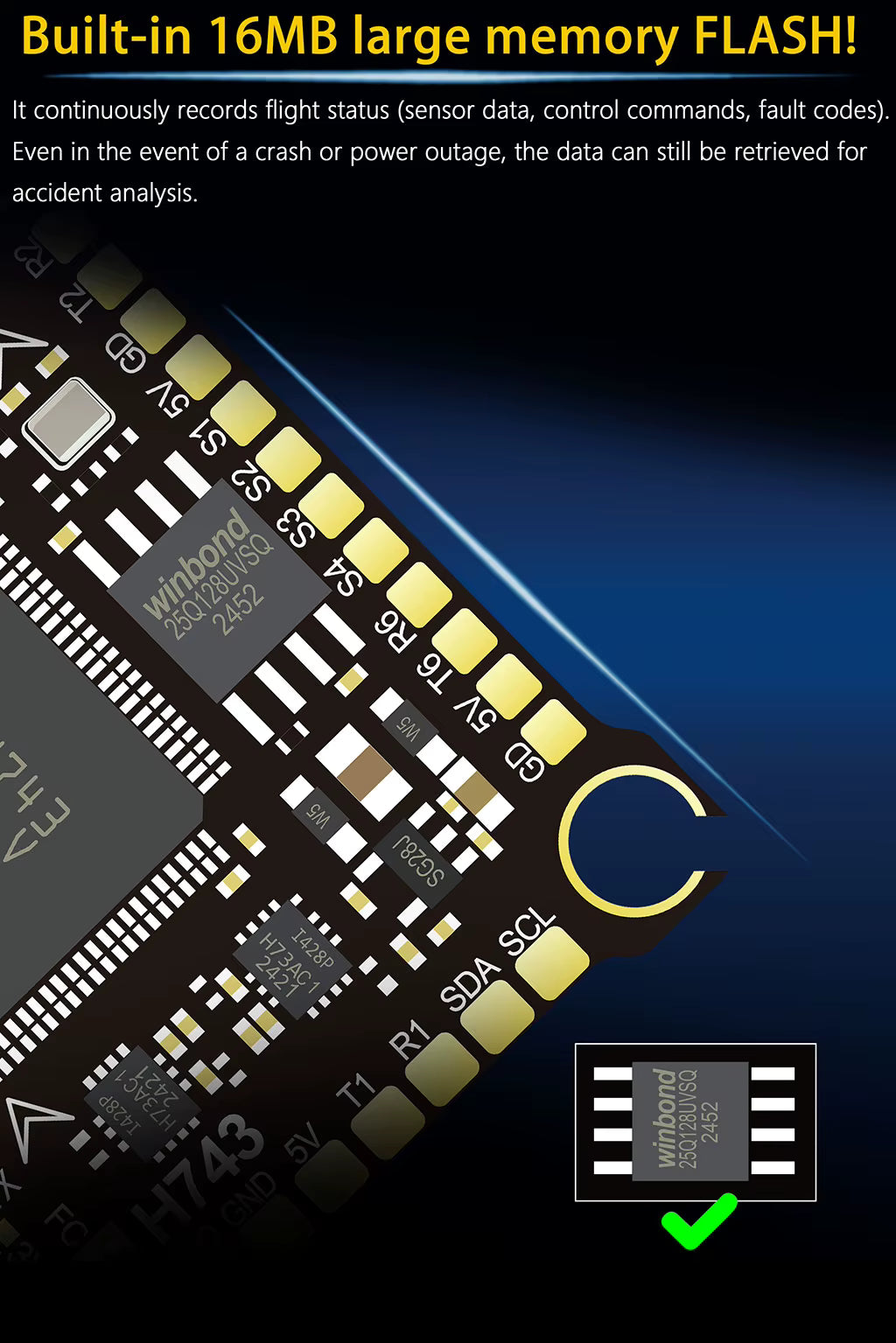

Blackbox: 16MB Flash
BEC: 5V 3A + 12V 3A
Supported Protocols: Betaflight & ArduPilot
Motor Outputs: M1–M8
UART Ports: 8
Sensors: Built-in Barometer
LED Control: Onboard LED mode switching
Battery Indicator: 12V / 5V / 3V LED indicators

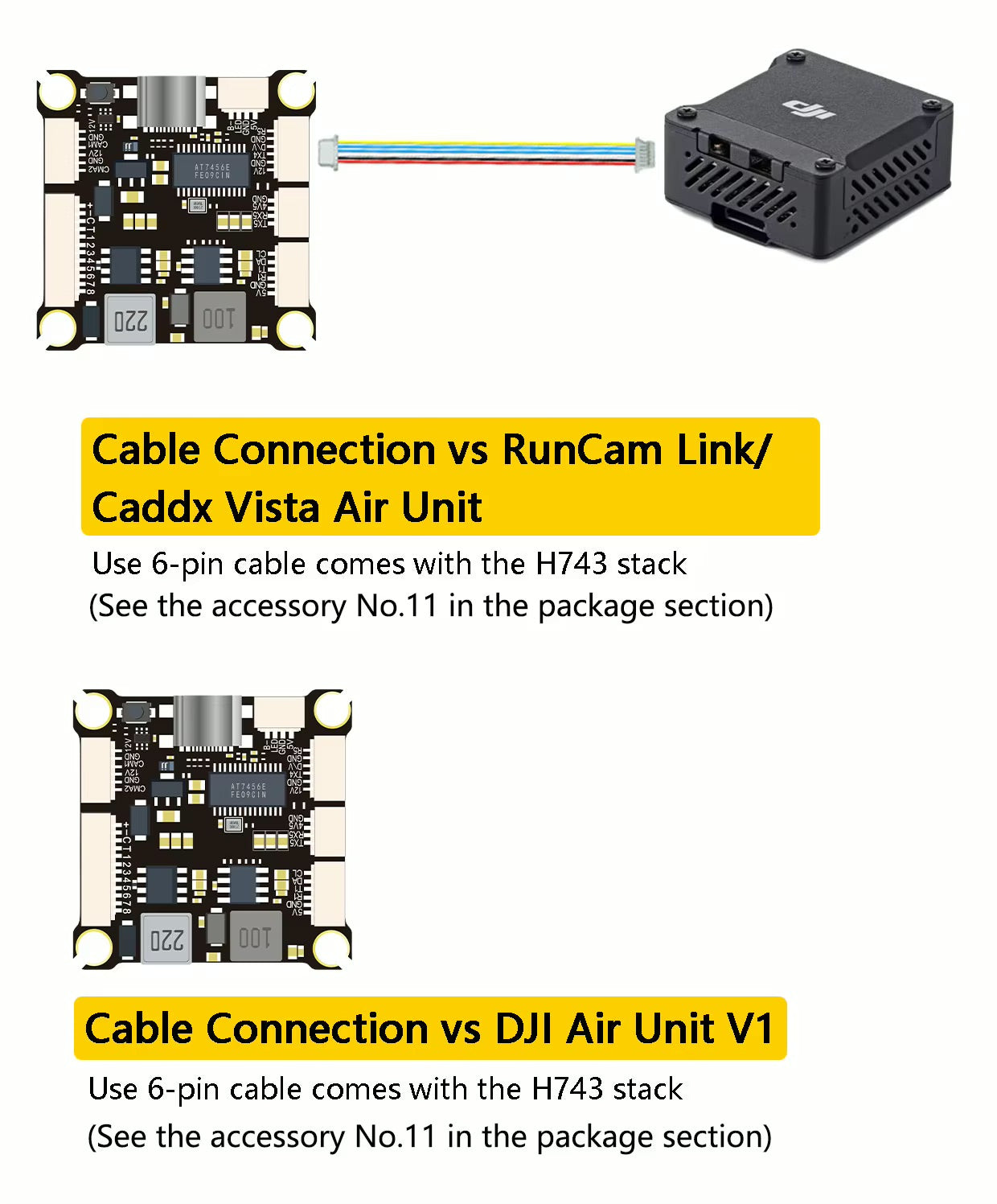

DJI Compatibility: O3 / Vista / Air Unit V1 direct plug
