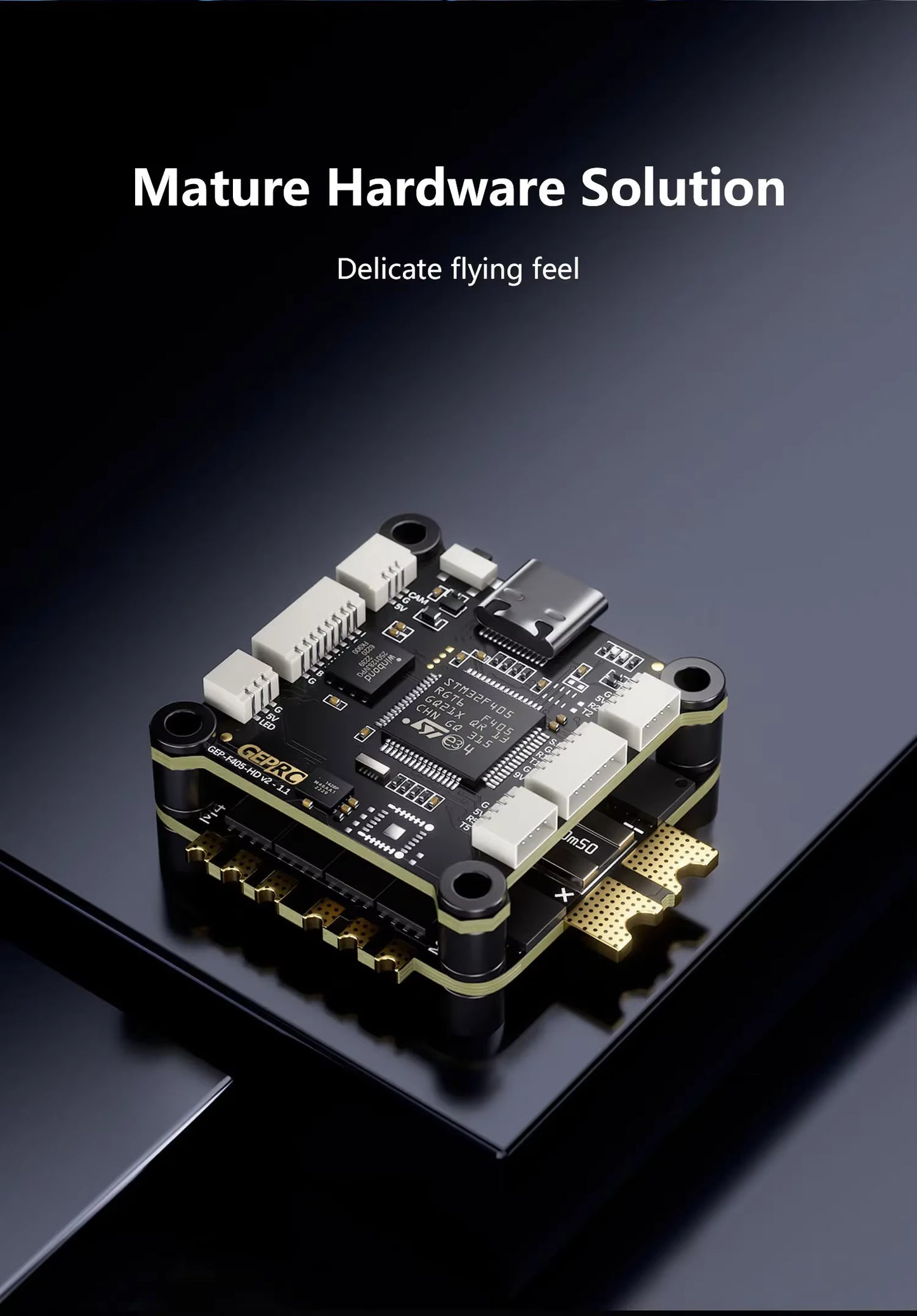

GEPRC TAKER F405-HD V2 flight controller is specially designed for the DJI Air Unit. Uses STM32F405 chip, ICM42688-P gyroscope, and integrated 16M black box to have a more delicate experience.

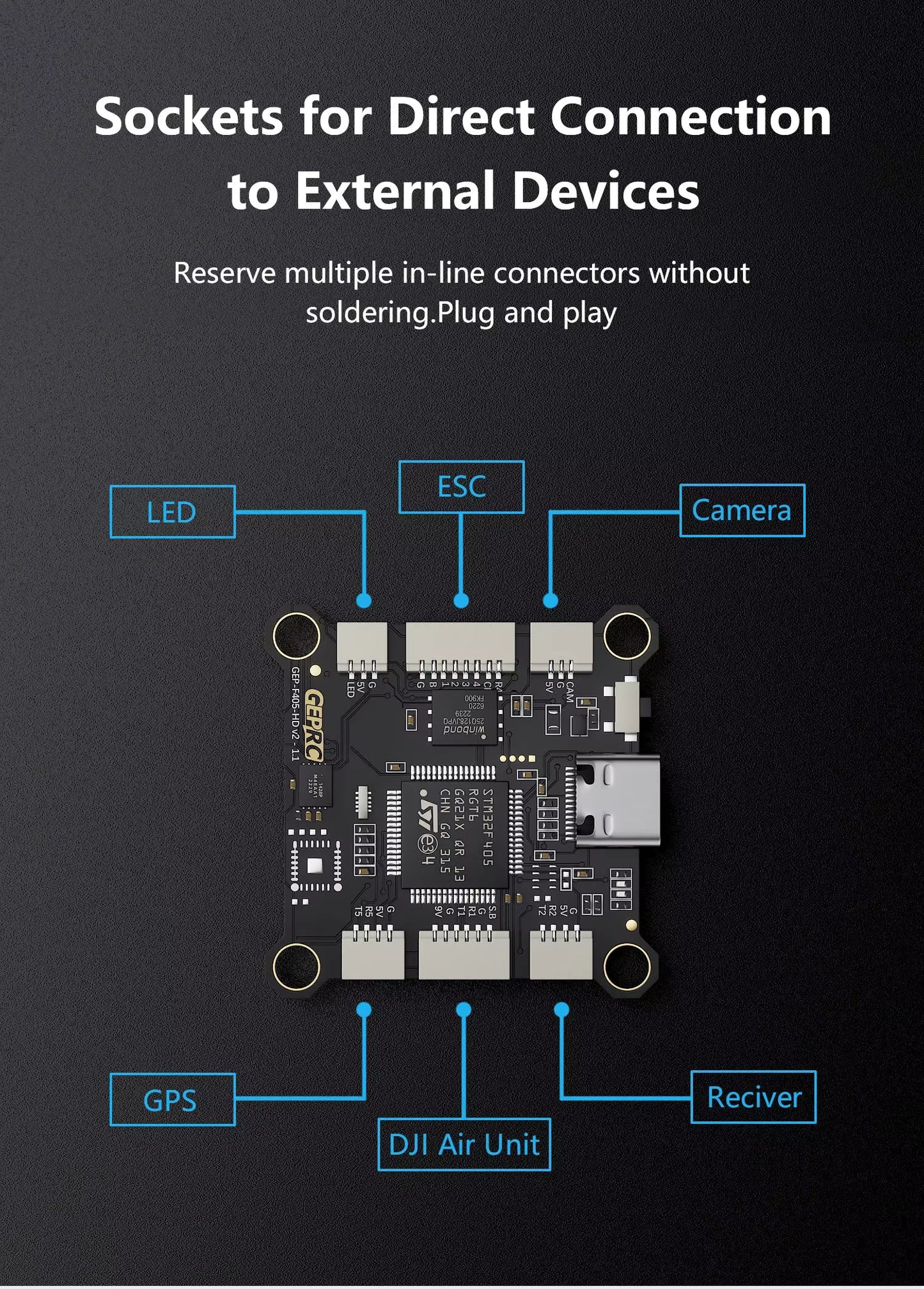

It can be directly plugged into the D JI Air Unit, which can save the trouble of soldering. Upgrade the type-C USB connector, which greatly improves the service life of the socket and reduces the risk of poor contact. 9V 2.5A + 5V 3A dual independent BEC, more stable power supply for external devices.
Â
Specifications
- MCU: STM32F405

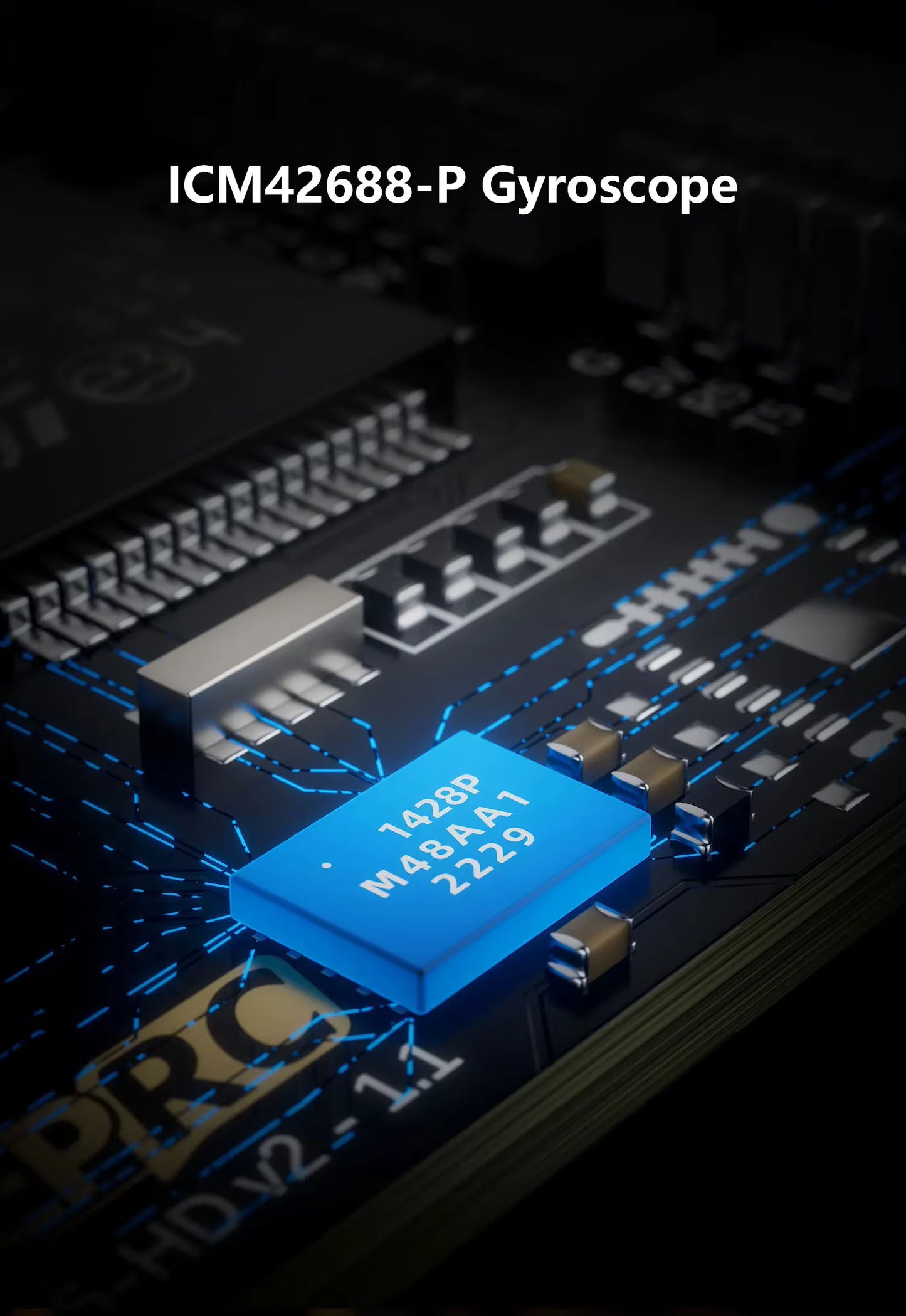

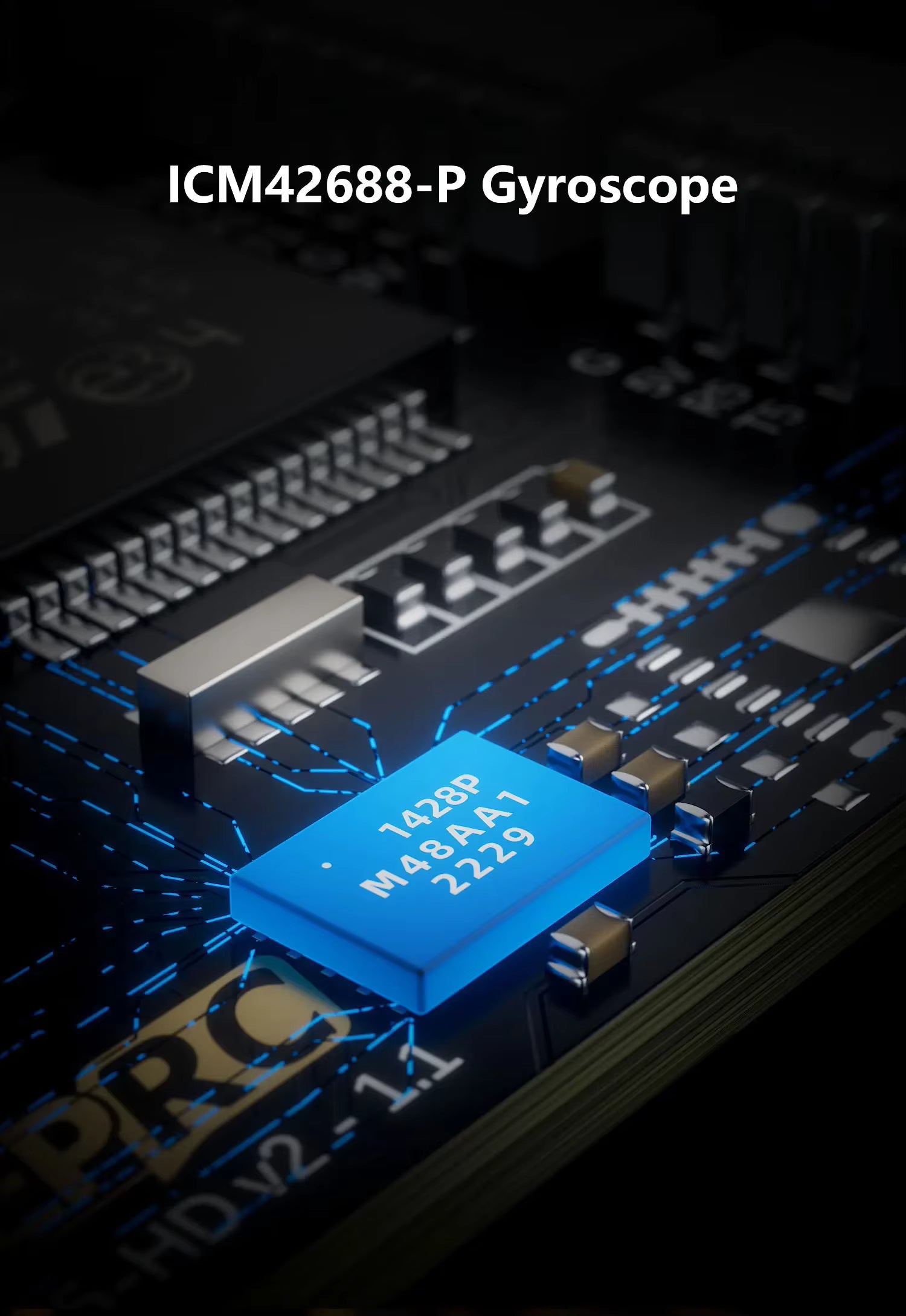

- IMU: ICM42688-P(SPI)
- Air Unit Connection: Direct plugging into DJI Air Unit

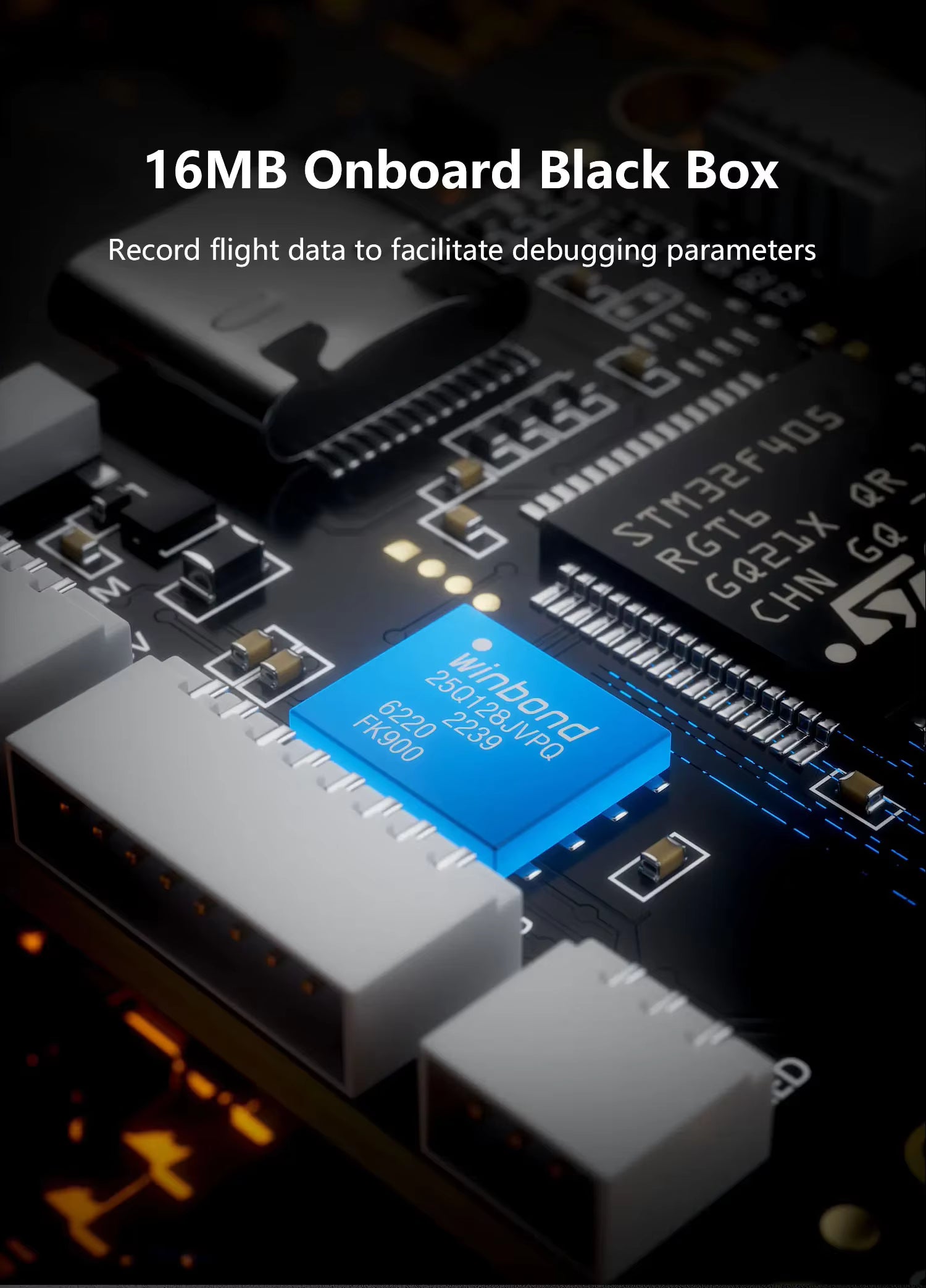

- Black Box: 16M onboard
- USB Connector: Type-C
- OSD: BetaFlight OSD w/ AT7456E chip
- BEC: 9V 2.5A + 5V 3A dual independent BEC
- Firmware Target: GEPRCF405

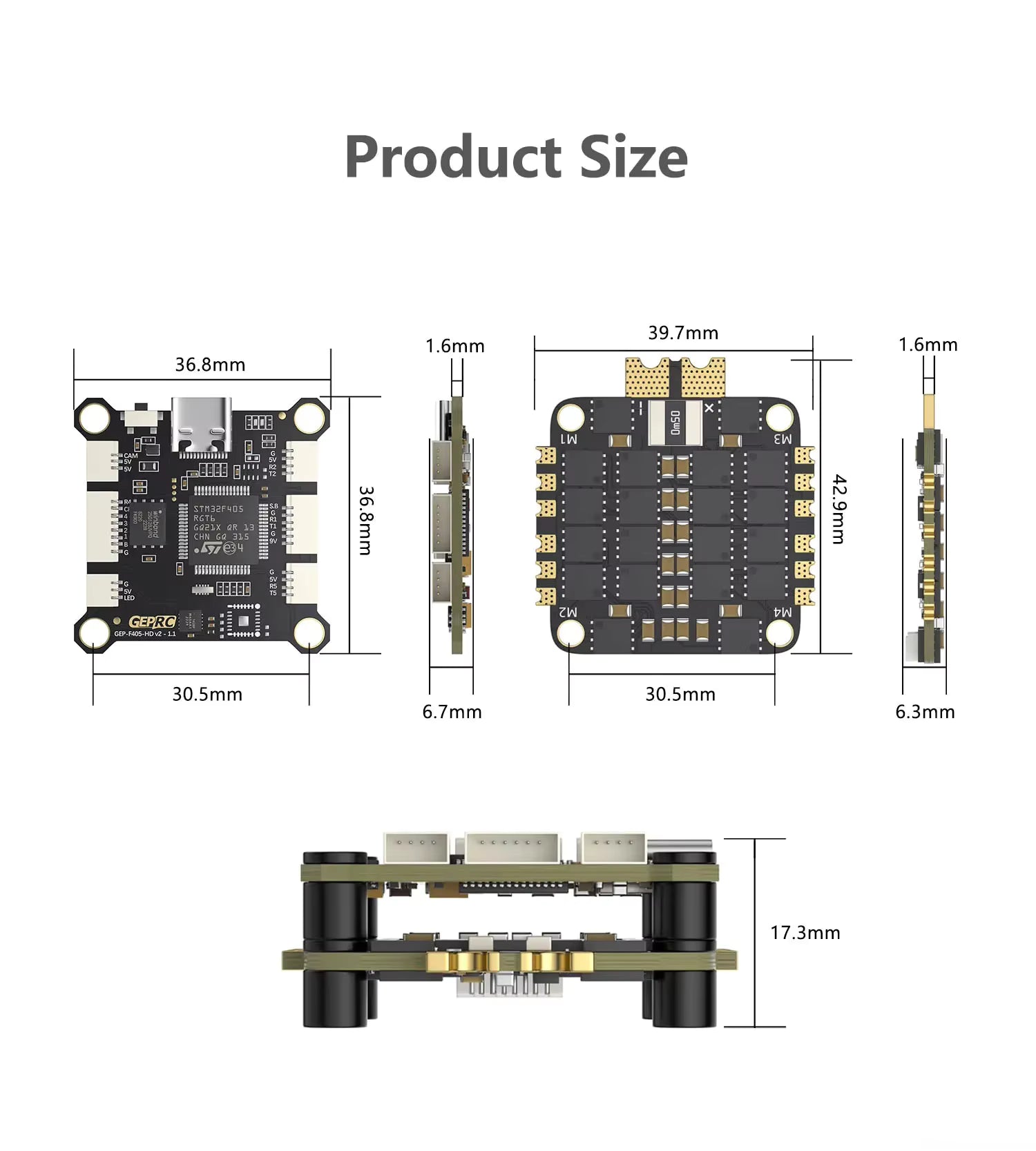

- Size: 36.8×36.8mm, hole 30.5×30.5mm,φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
- Input Voltage: 3-6S LiPo
- UART: 6
- Power Filter: Integrated LC filter
- Weight: 7.7g
Â
Includes
- 1 x Flight Controller
- 1 x D-J-I Air Unit Adapter Cable
- 1 x Flight Controller Adapter Cable
- 4 x Nylon nuts
- 4 x Silicone grommets
- 2 x sh1.0 4-pin ribbon cable
- 1 x Camera connection cable
