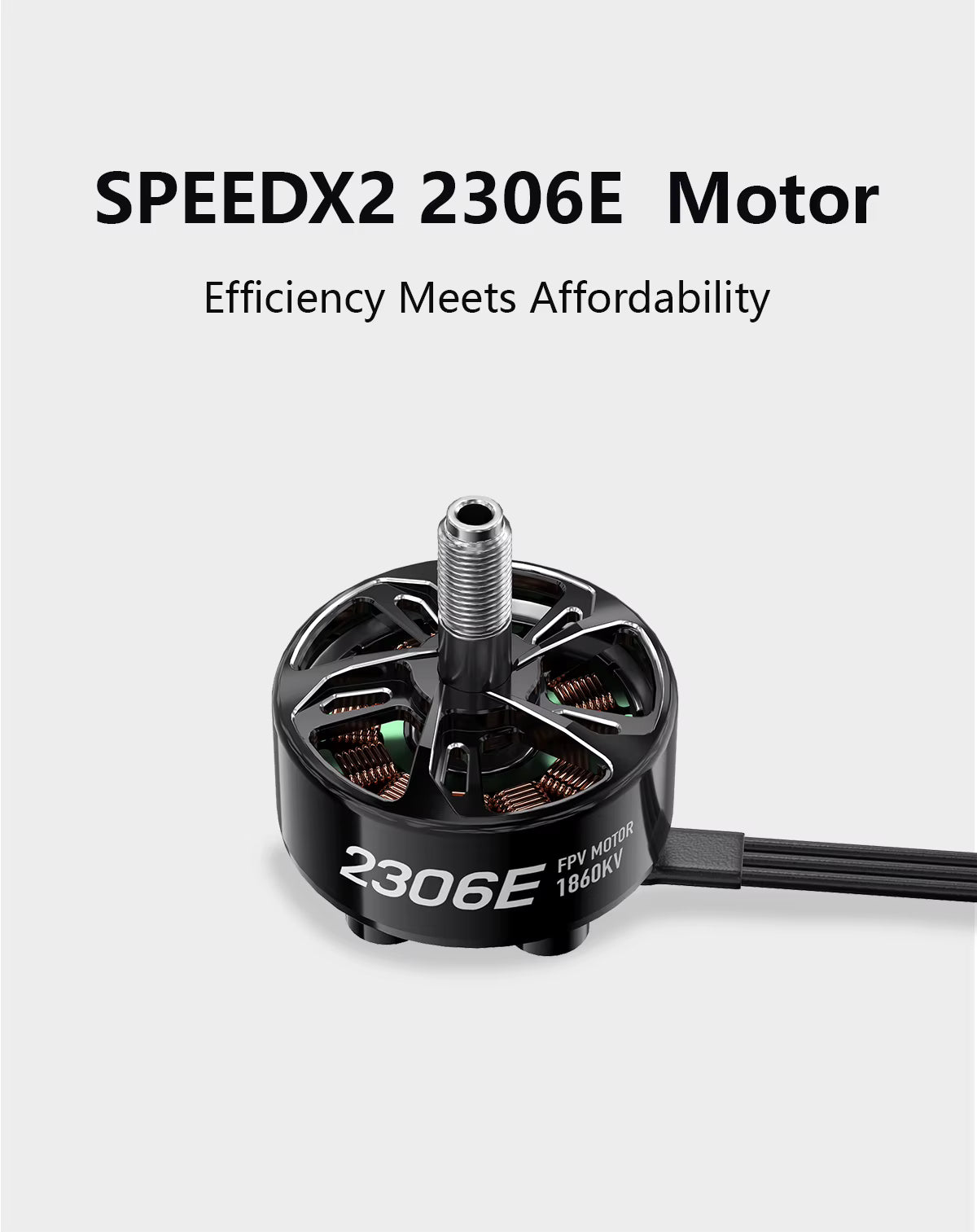

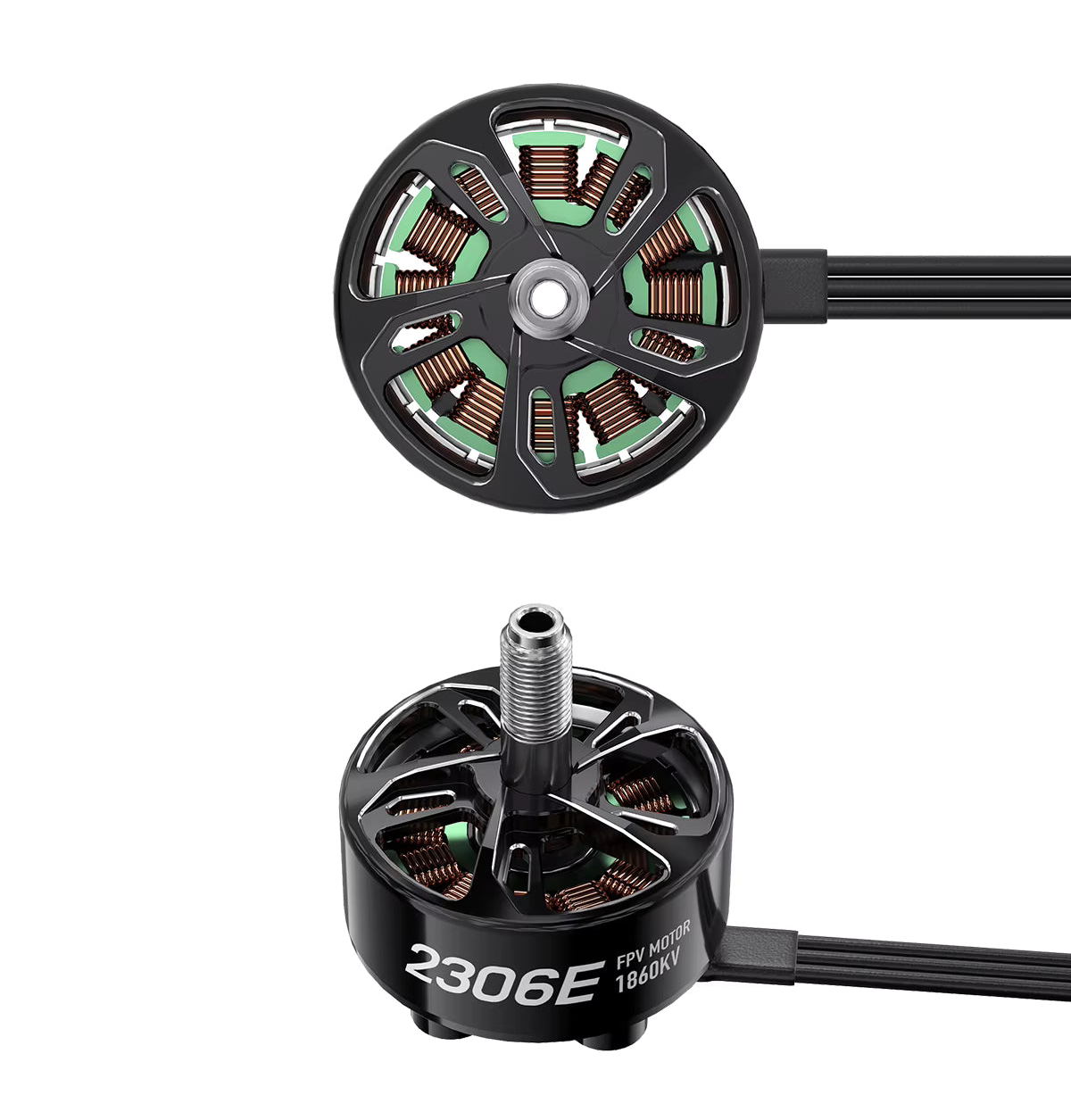

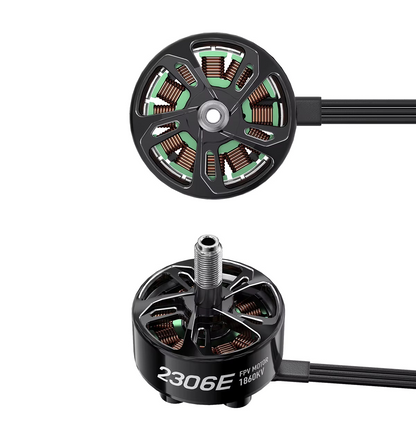

The SPEEDX2 2306E motor features a sleek all-black design with blade-like protrusions that securely lock the propellers. Its extensive cutout structure enhances heat dissipation efficiency. Crafted from aerospace-grade aluminum using precision CNC machining, it is both lightweight and durable.
Features:
- Reduced rotor-stator gap ensures rapid response for seamless freestyle flying.
- he fresh all-black glossy design with extensive cutouts enhances heat dissipation for better performance.
- Crafted from 7075 aerospace-grade aluminum with precision CNC machining for a lightweight design.

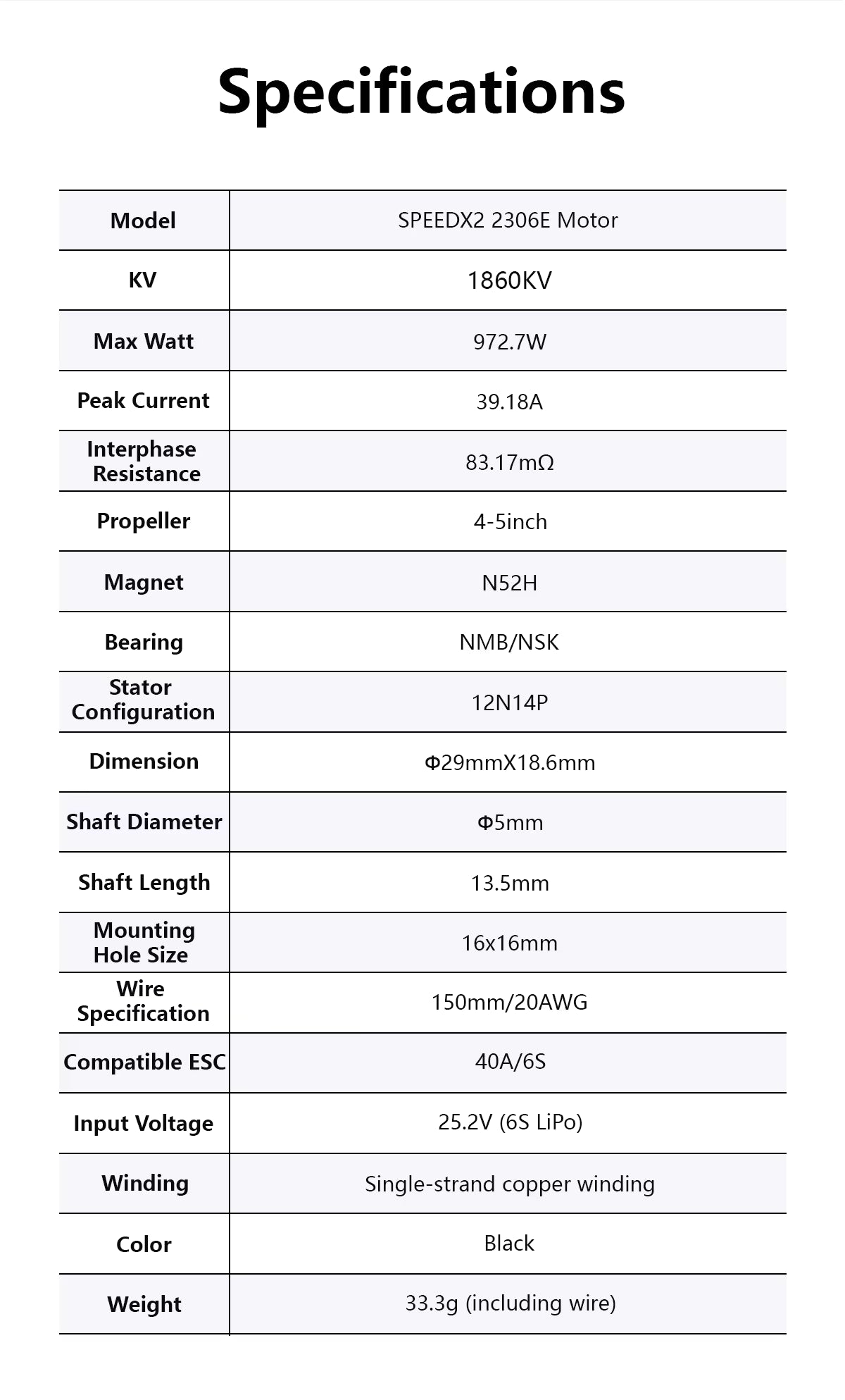

Specifications:
- Model: SPEEDX2 2306E Motor
- KV: 1860kv
- Max Watt: 972.7W
- Peak Current: 39.18A
- Interphase Resistance: 83.17mΩ
- Propeller: 4-5inch
- Magnet: N52H
- Bearing: NMB/NSK
- Stator Configuration: 12N14P

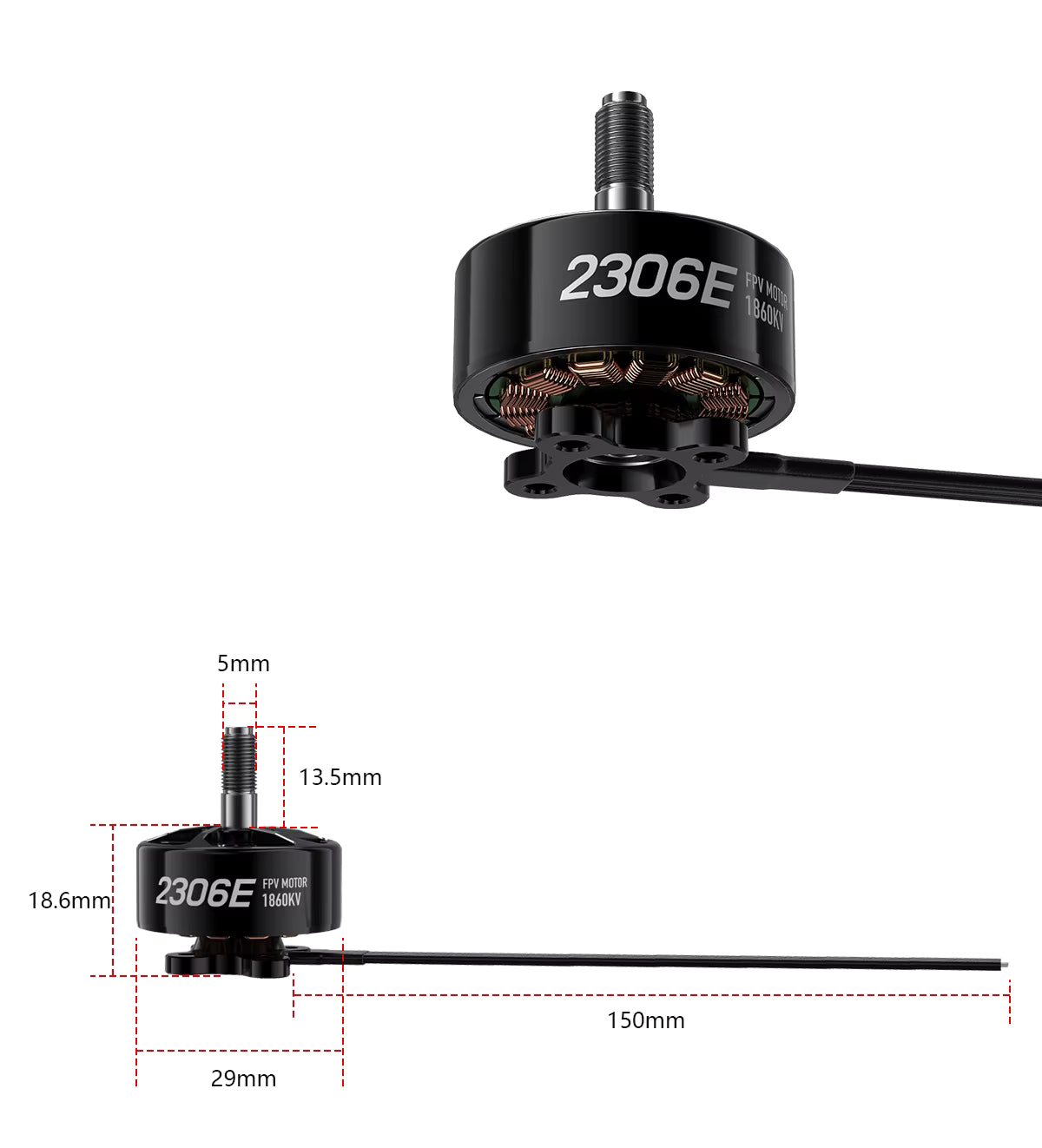

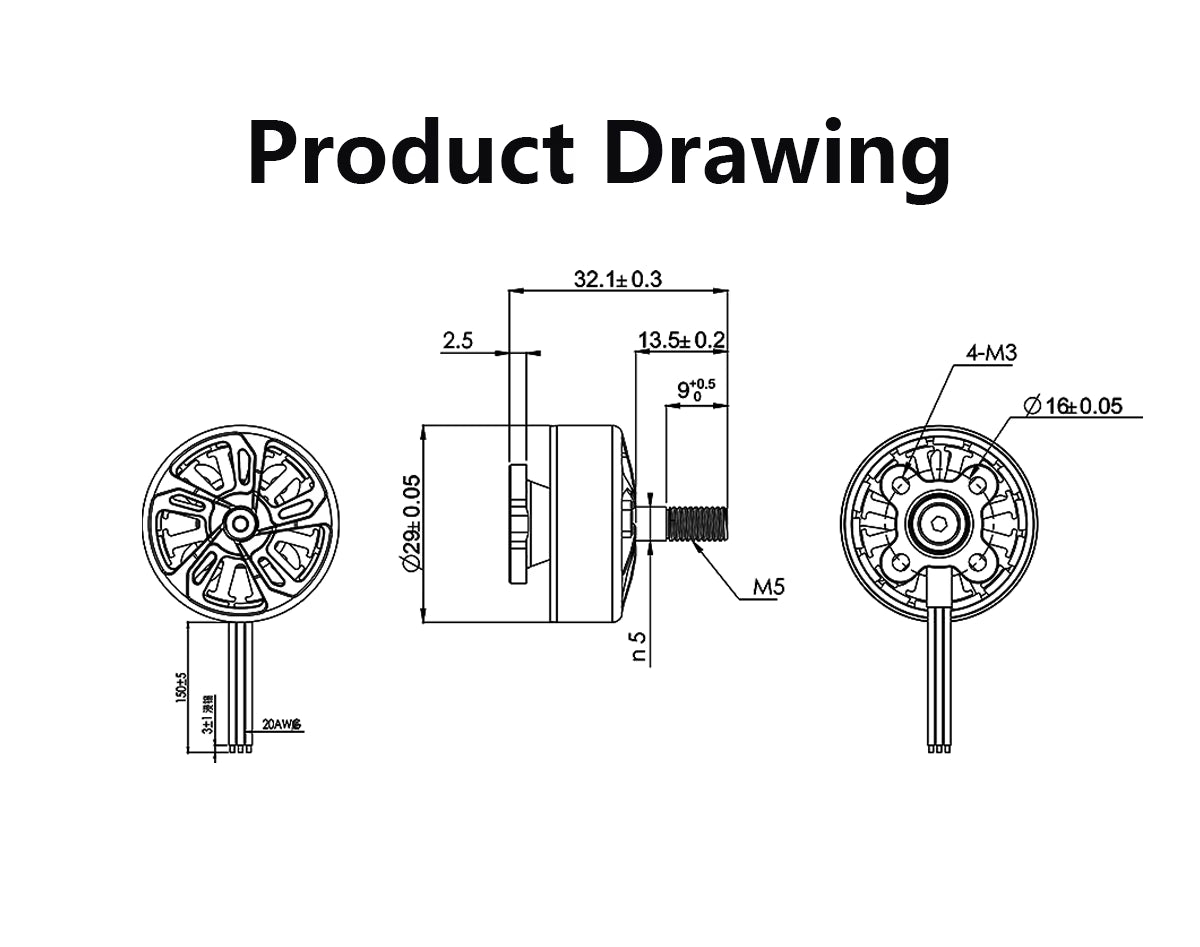

- Dimension: 29*18.6mm
- Shaft Diameter: 5mm
- Shaft Length: 13.5mm
- Mounting Hole Size:16*16mm
- Wire Specification: 20AWG/150mm
- Compatible ESC: 40A/6S
- Input Voltage: 6S
- Winding: Single-strand copper winding
- Color: Black

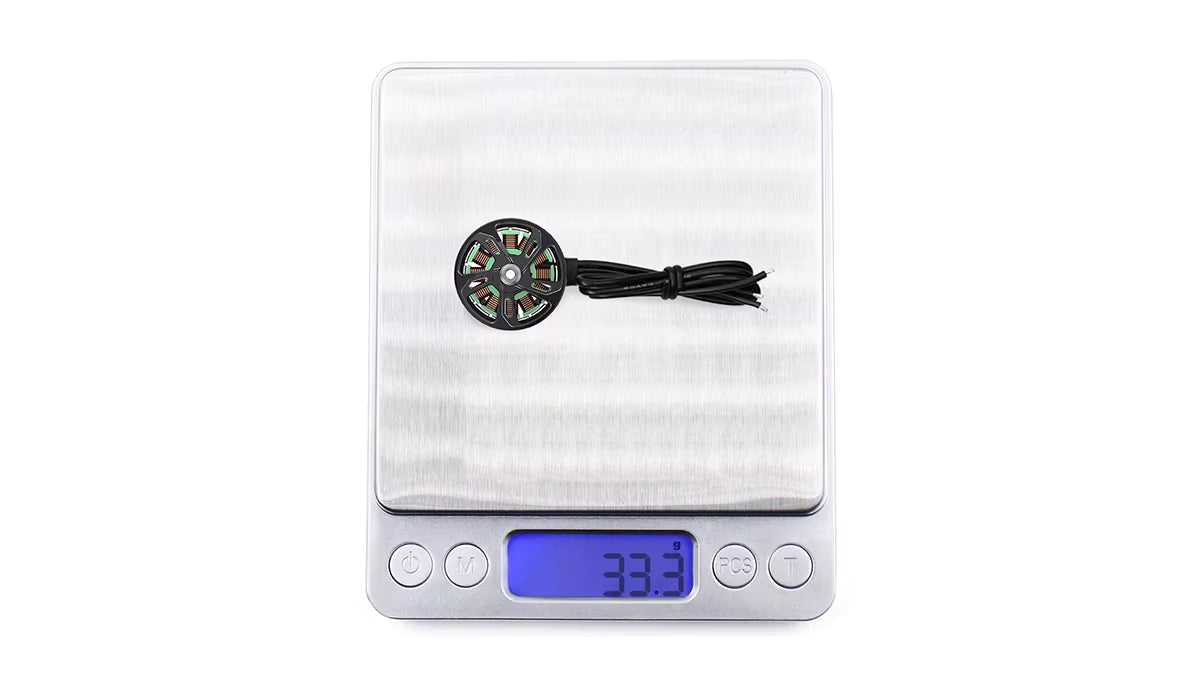

- Weight:33.3g (including wire)
- Compatible Models: Suitable for 4inch-5inch racing FPV quads
