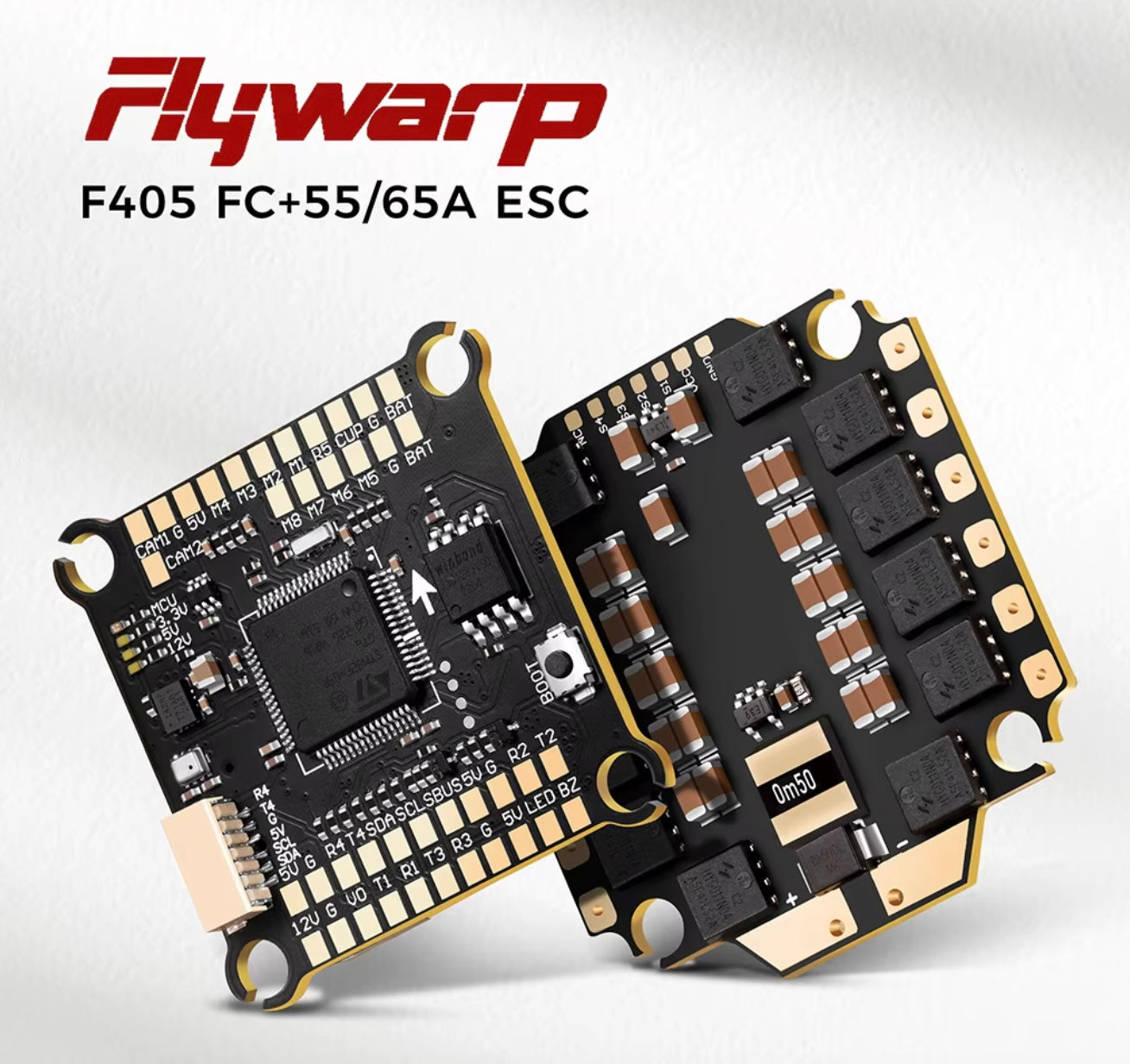

Flywarp F405 65A stack

The Flywarp stack designed for freestyle, racing, and long-range FPV drones that require responsive control, reliable power delivery, and stable performance. Powered by the STM32F405 main processor and the highly stable ICM42688P gyro, this stack offers precise flight handling and excellent anti-vibration performance—ideal for 5"–7" builds and mid-to-large FPV platforms.

The included 65A 4-in-1 ESC supports up to 6S LiPo, providing robust current handling with advanced electrical protection. Combined with multiple BEC outputs, 6 UART ports, full Betaflight compatibility, and convenient Type-C connectivity, this stack delivers a powerful and reliable solution for FPV enthusiasts and professionals.

FC Specifications:

MCU: STM32F405

Gyro: ICM42688P

OSD: AT7456E

Blackbox: 16MB

- BEC Output:
• 5V / 2A (7 × 5V pads available)
• 12V / 2A (2 × 12V pads)

Input Voltage: 4S–6S LiPo

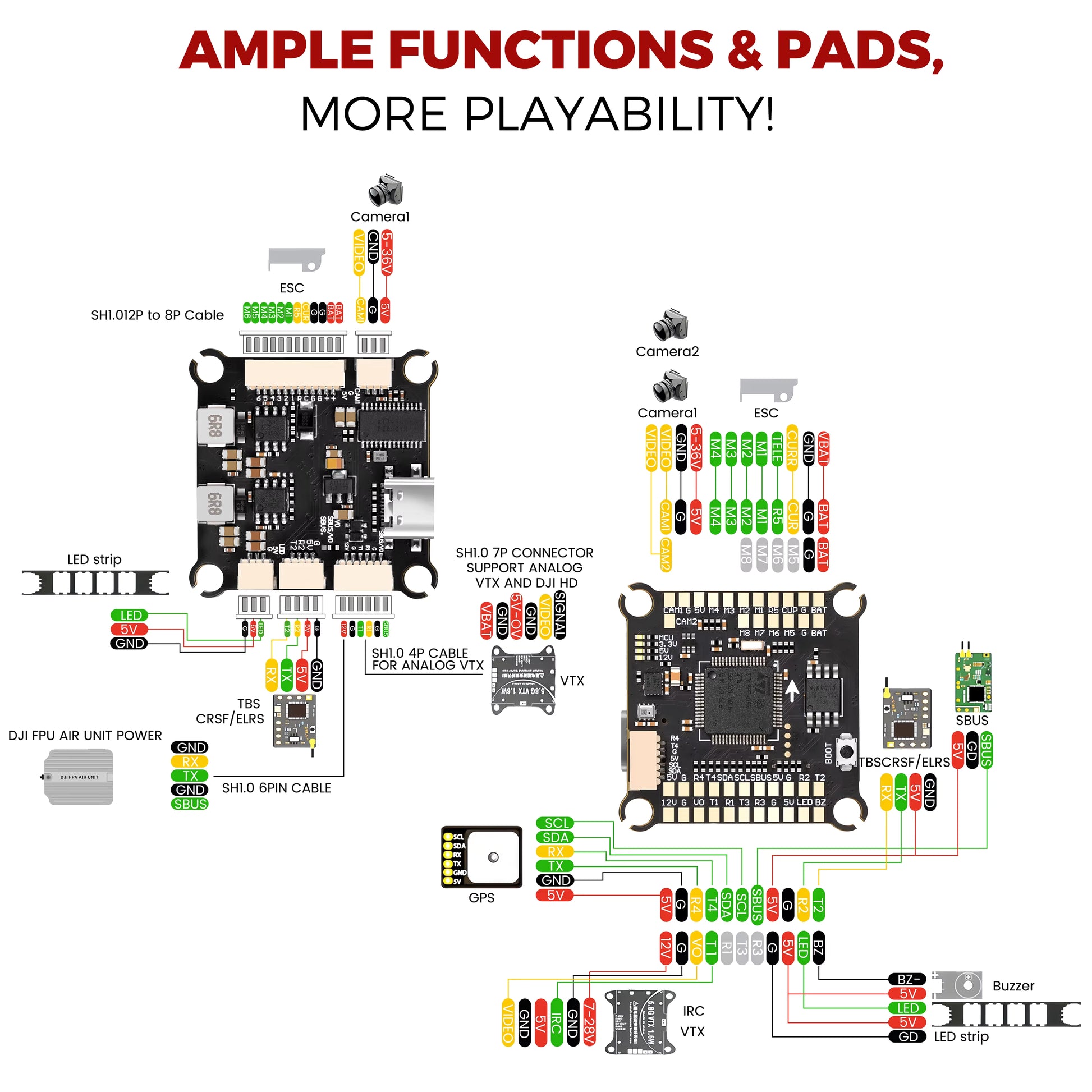

UART Ports: 6 × UART for GPS, VTX, receiver, LEDs, etc.

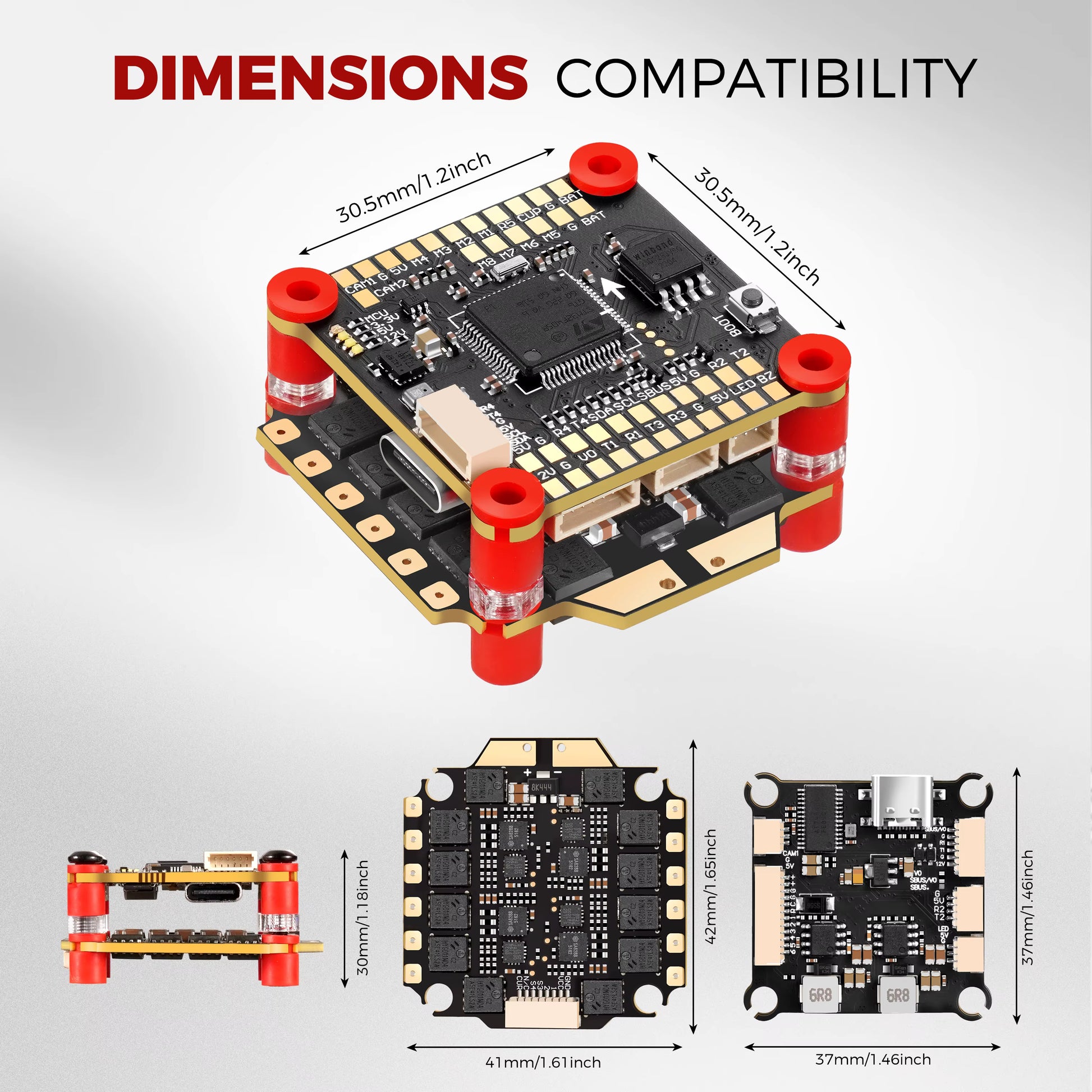

Mounting: Standard 30.5×30.5mm (M4 holes)

Weight: 7g

ESC Specifications:

Firmware: J_H_30_REV16_7

Continuous Current: 65A × 4

Peak Current: 75A (5 seconds)

Input Voltage: 3S–6S LiPo

Output Voltage: VBAT

ESC Protocols: DSHOT300 / DSHOT600

Electrical Protection: TVS diode and 1000uF low-ESR capacitor

Current Sensor: Supported (scale = 386, offset = 0)

Mounting: 30.5×30.5mm (M4 holes)

Dimensions & Weight: 42 × 41mm/ 11.5g
