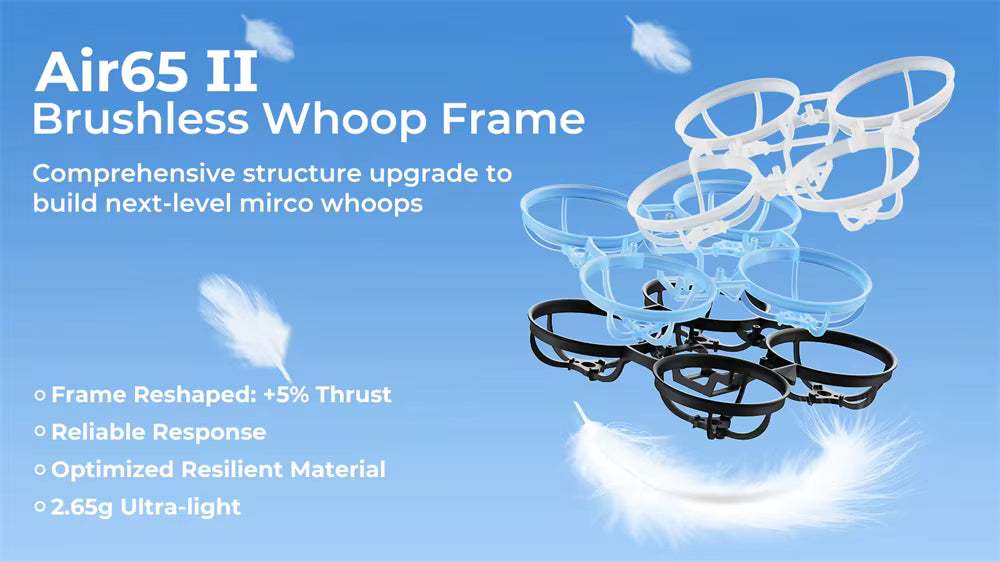

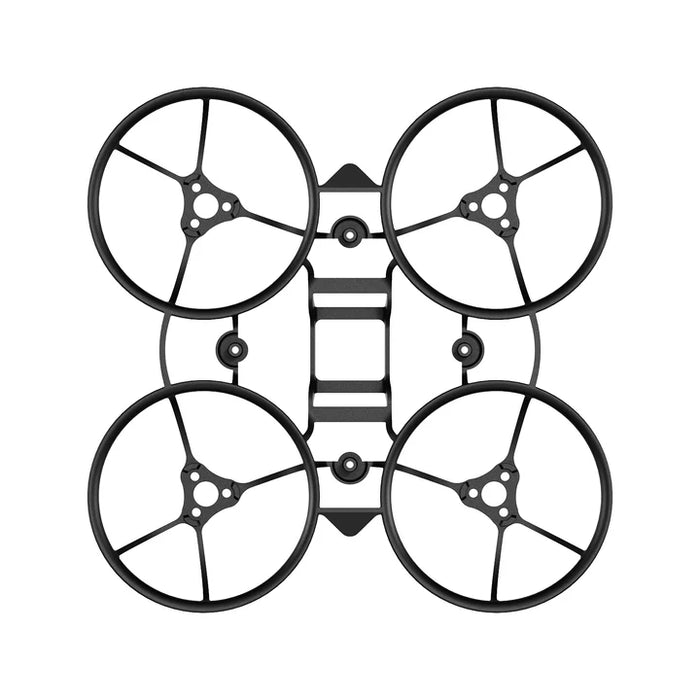

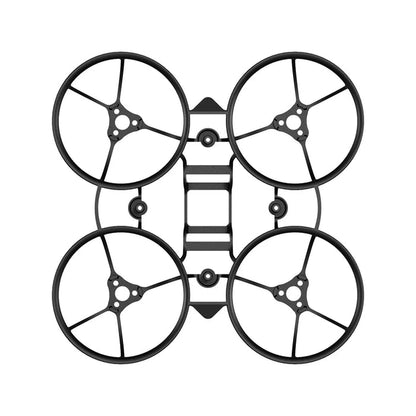

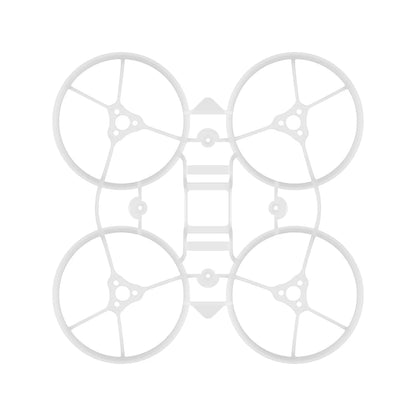

BETAFPV Air65 II Frame

For nearly two years, the Air65 Frame defined lightweight agility. Now, forged alongside our global pilot community, the 2.65g Air65 II Frame reimagines the form. Our R&D team deconstructed every arm brace, duct geometry, and crash point. The result A radcal yet refined frame: 4 arm braces replace 6, paired with optimized ducts and connecting structure. This shaves frame amplitude while adding 5% thrust and delivering near-perfect PID response. Beneath the form lies resilence. An optimized PP matrx absorbs brutal impacts from crashes. Refined details – screw protection structure, enlarged FC holes, and a lowered duct profile – ensure dominance. All engineered for relentless, worry-free flying.

Upgrades:

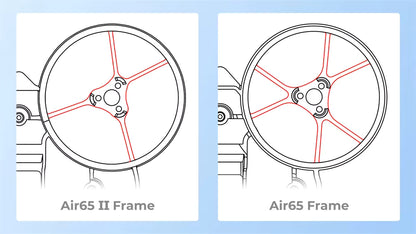

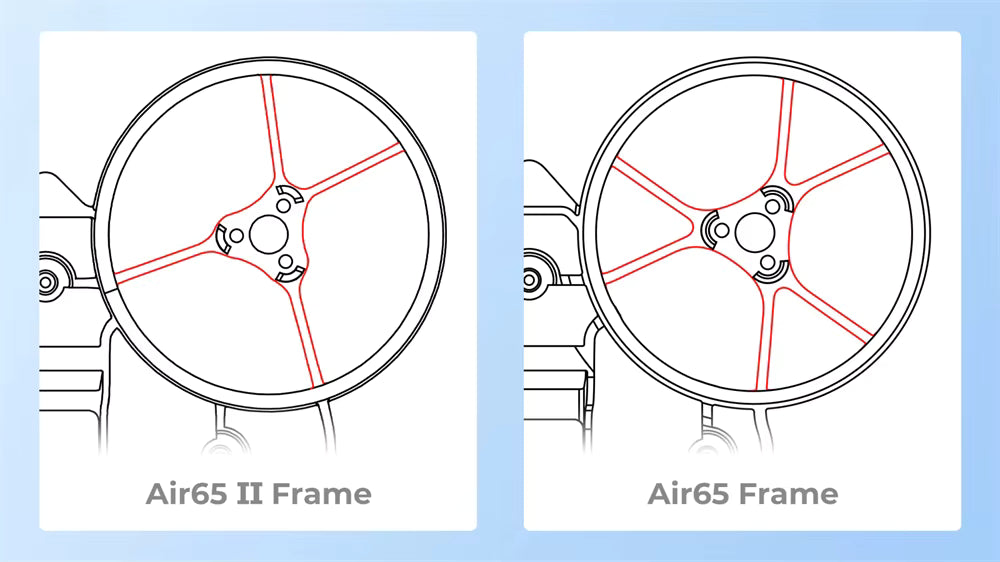

- Arm braces reduced from 6 to 4 + optimized duct geometry increase 5% thrust - while maintaining uncompromising durability.

- Optimized connecting braces reduce frame amplitude and achieve ideal PID step response.

- Optimized PP blend makes it crash ready.

- Pilot-Focused Details: Motor fixed slots, motor screw protection structure, enlarged FC mounting holes (25.5 × 25.5mm), and lowered duct profile.

Details Matter!

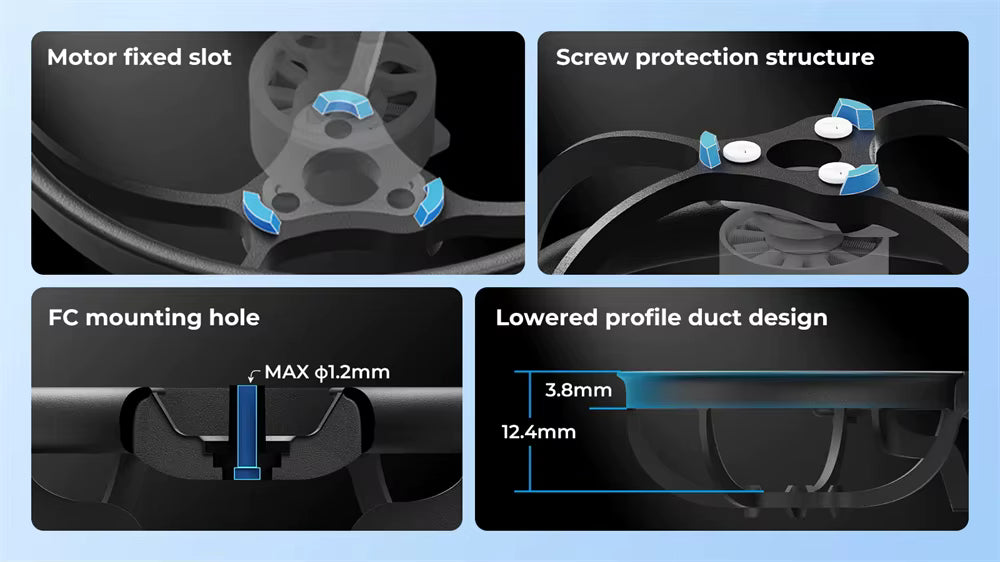

Every gram perfected: Retained motor fixed slots ensure precise alignment, new motor screw protection structures deflect crash impacts, enlarged 1.2mm FC holes fit 1.4mm screws effortlessly, and our 12.4mm lowered ducts (-0.6mm) plus 3.8mm slim profile clear short-can motors. Where pilot priorities meet engineering obsession.

Specifications:

- Brand: BETAFPV

- Item: Air65 II Brushless Whoop Frame

- Material: PP

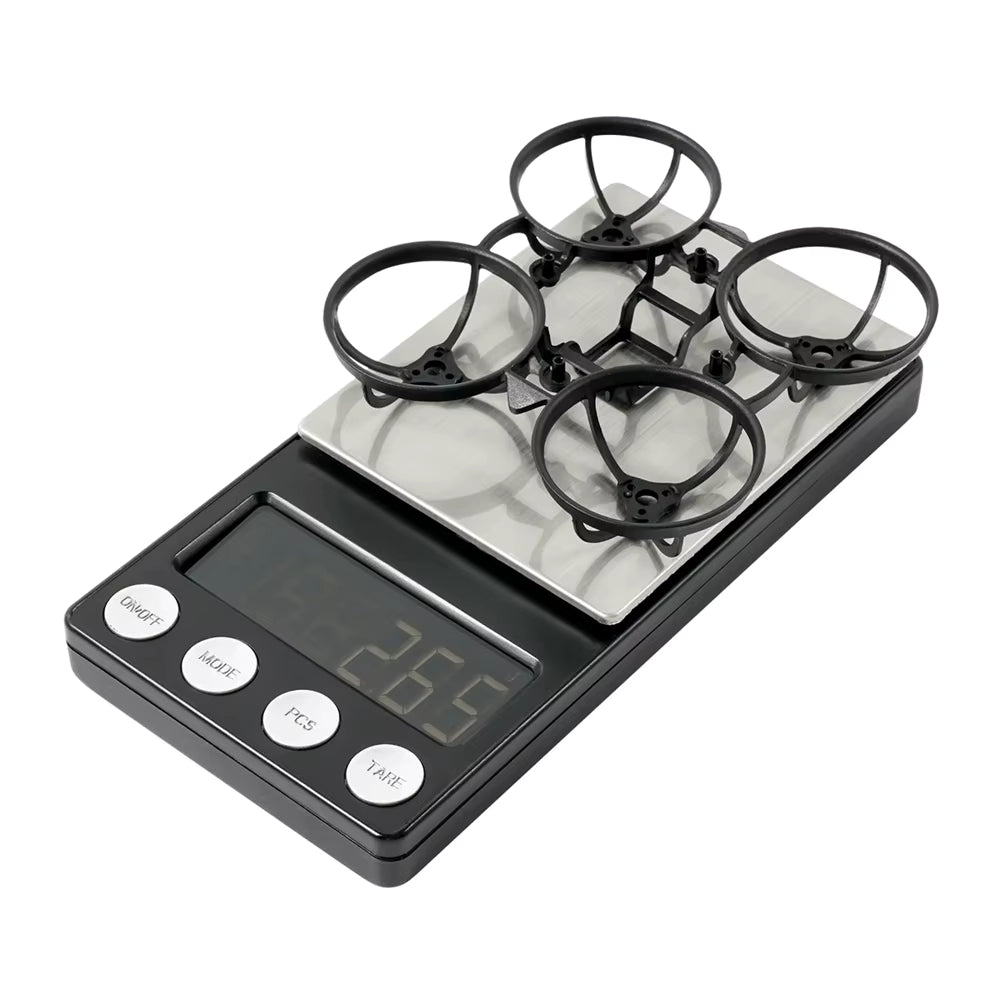

- Weight: 2.65g

- Wheelbase: 65mm

- Motor Mounting: 3-M1.4-6.6mm

- Flight Controller Mounting Hole: 25.5×25.5mm

- Battery Slot Size: 11.4×6.2mm

- Maximum Size: 82.6*82.6*15.1mm
