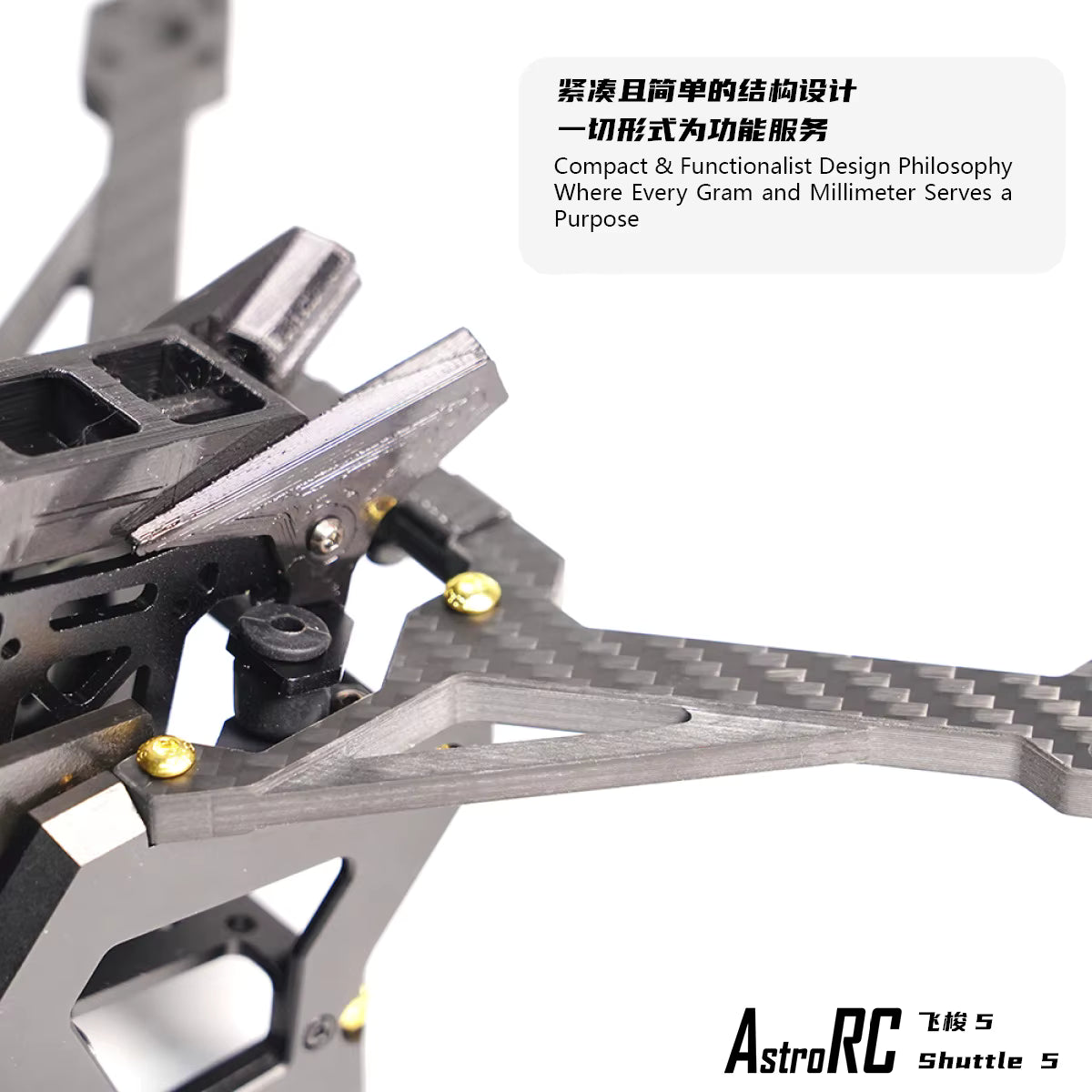

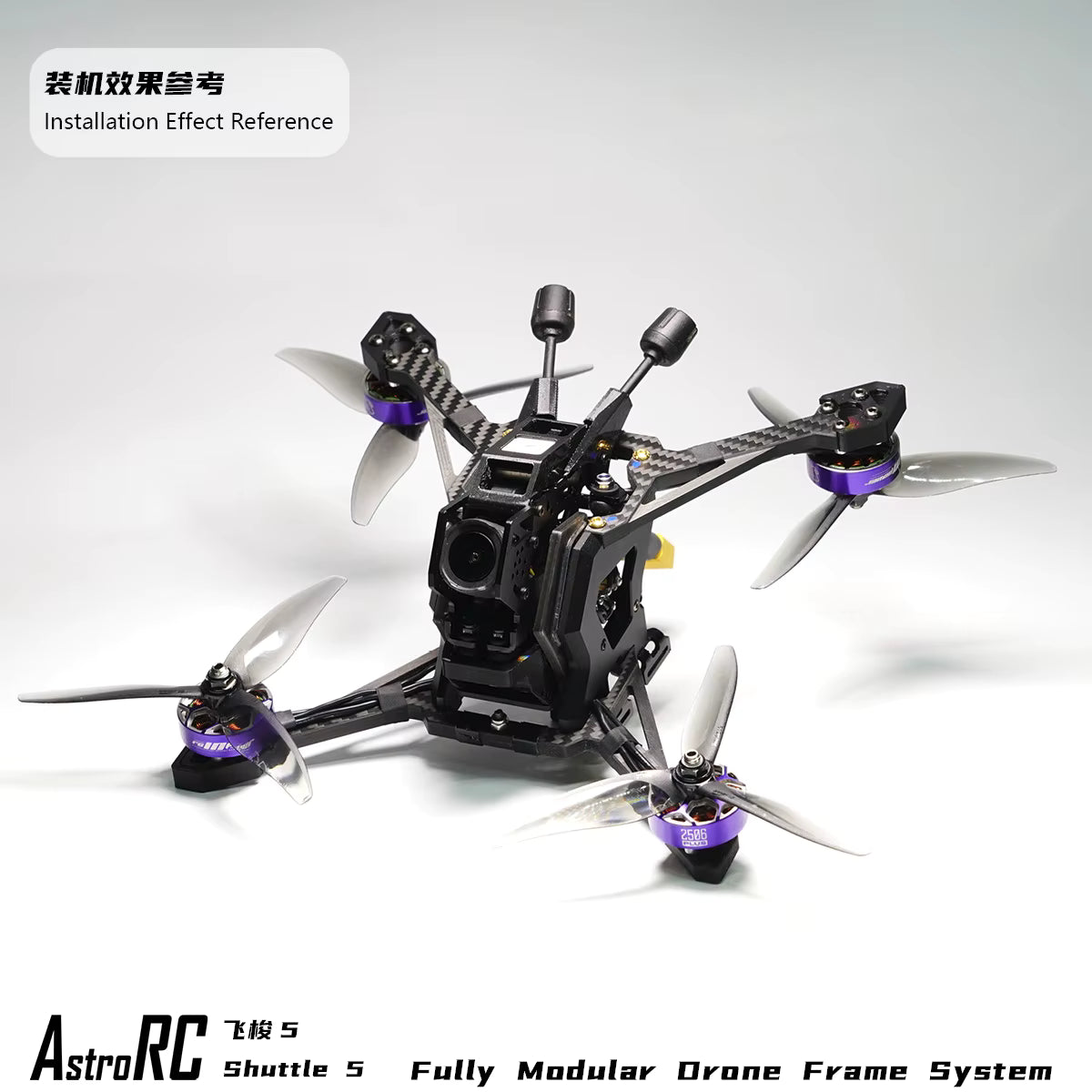

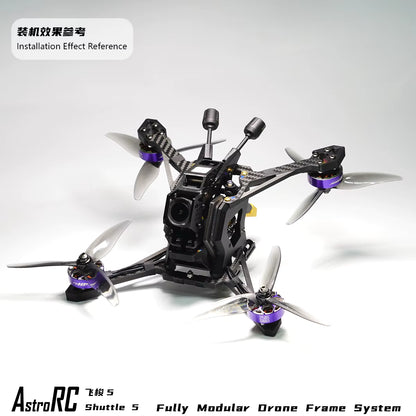

The AstroRC Shuttle 5 is a high-performance, fully modular FPV drone frame engineered for pilots who demand durability, stability, and customization. Designed around a compact, functionalist philosophy, every gram and millimeter of this frame serves a purpose—resulting in a rigid, lightweight platform optimized for cinematic and freestyle flying.
With its 7075 aviation-grade aluminum mid-frame, 6 mm carbon-fiber arms, and vibration-damped camera/VTX modules, the Shuttle 5 delivers exceptional structural integrity and ultra-clean footage, even in demanding flight environments. Its modular arm system supports both 5-inch and 6-inch configurations, giving pilots freedom to switch between agility and long-range efficiency.
The bottom quick-release battery bay accommodates most 6S LiPo and 18650 Li-ion packs, making it suitable for both high-power flights and extended-range missions. Weighing under 200 g, the Shuttle 5 hits the ideal balance between strength and performance.
Features:

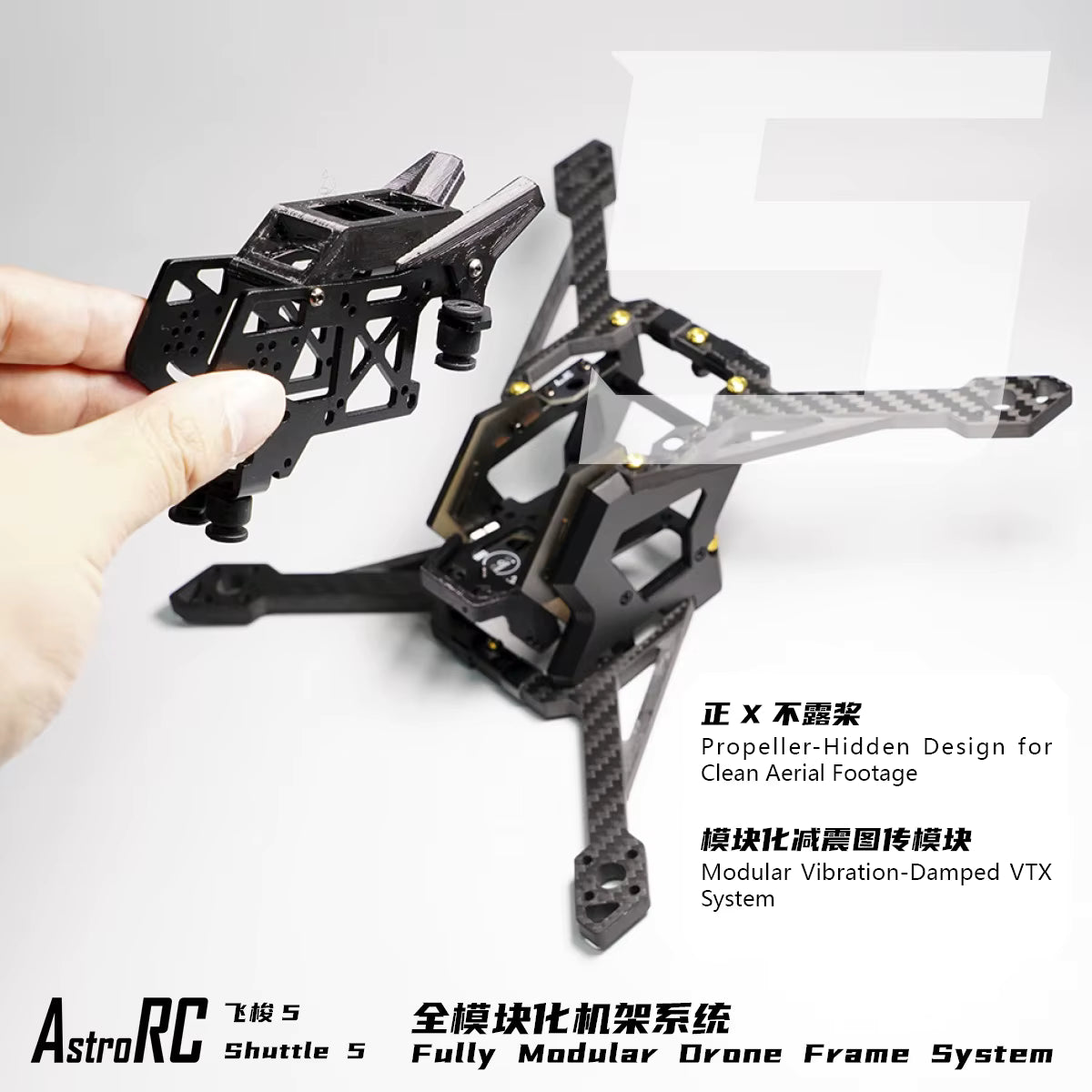

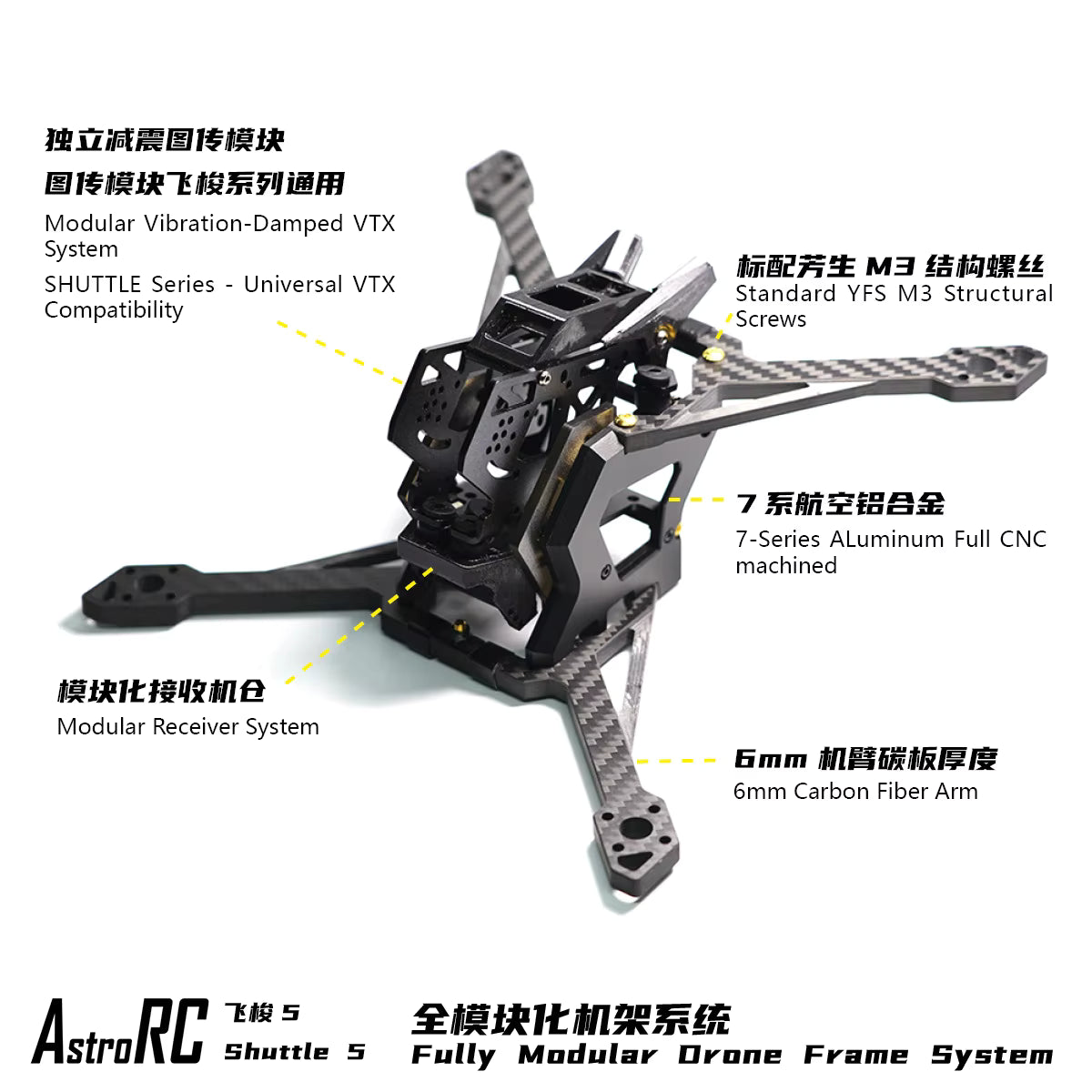

- Fully modular frame system

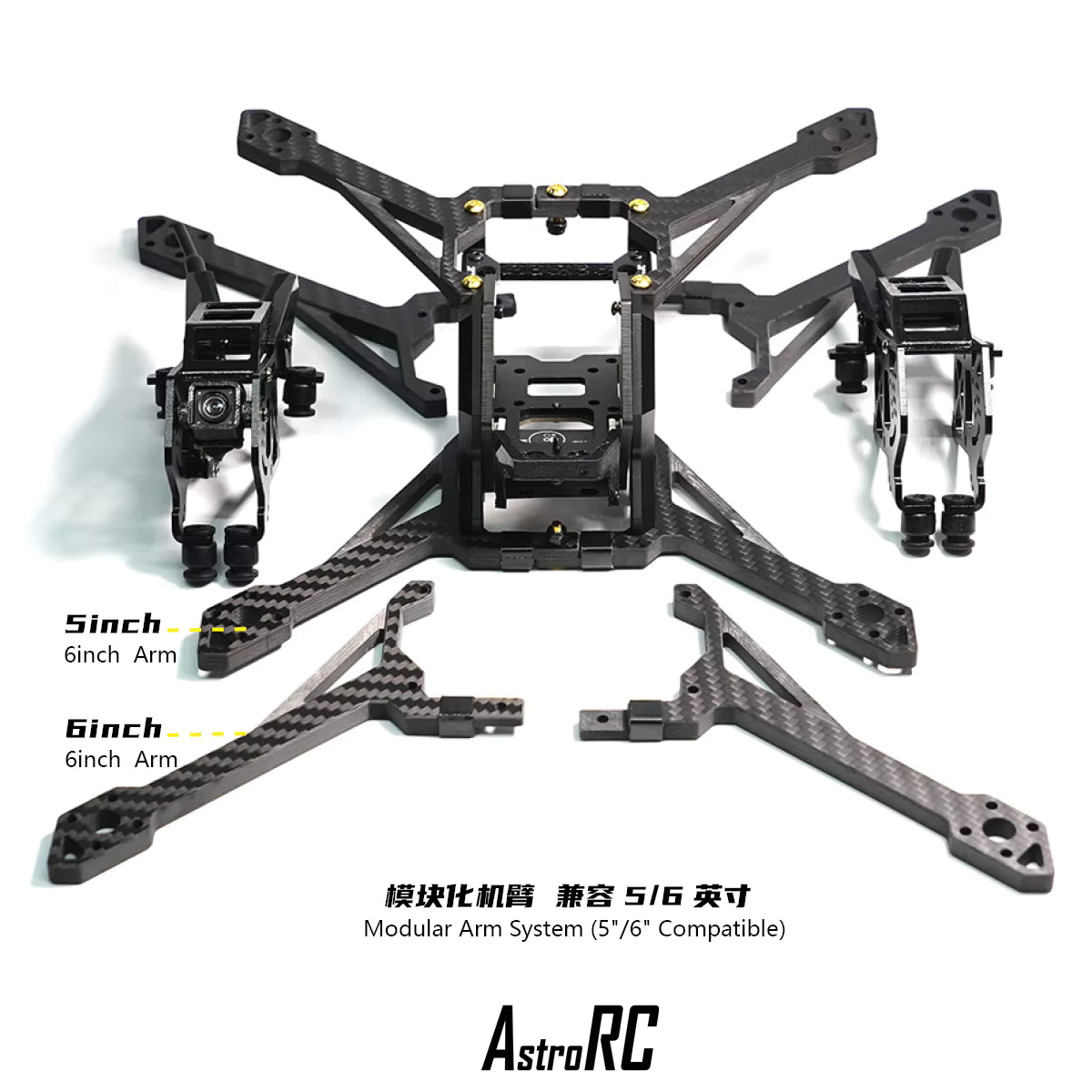

- Supports both 5" and 6" arms (included)

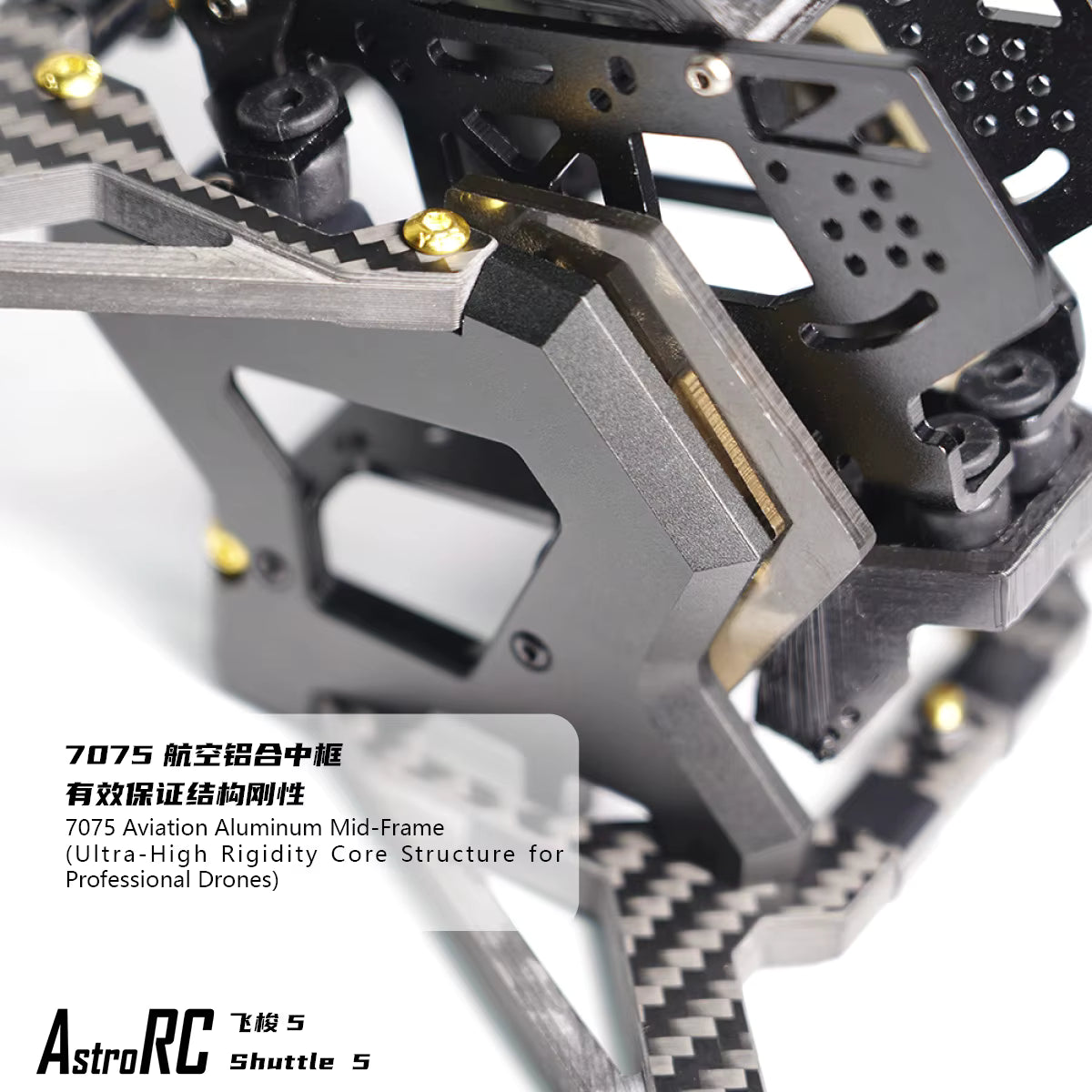

- 7075 CNC-machined aluminum mid-frame for maximum rigidity
- 6 mm carbon-fiber arms for durability

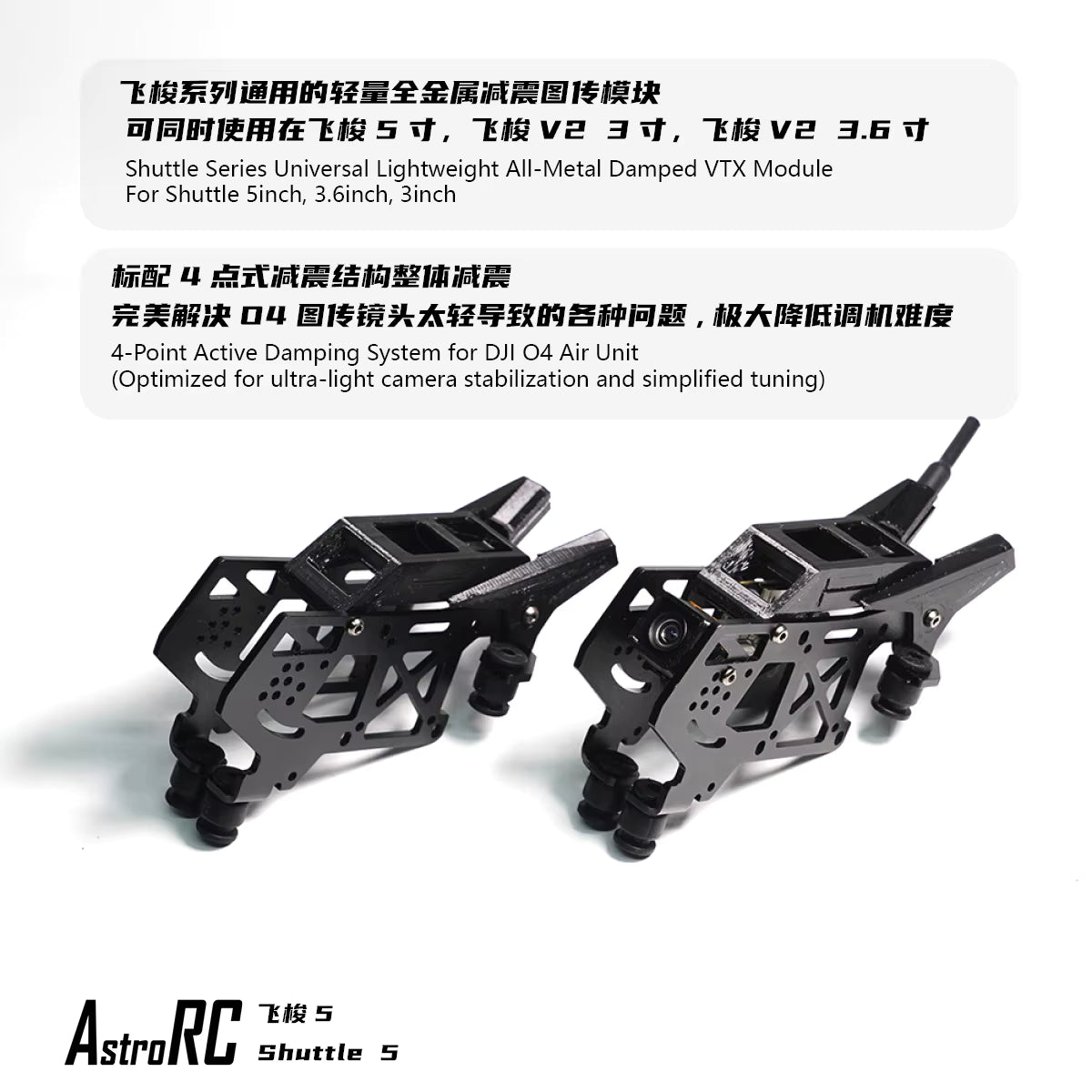

- Modular vibration-damped VTX/camera system

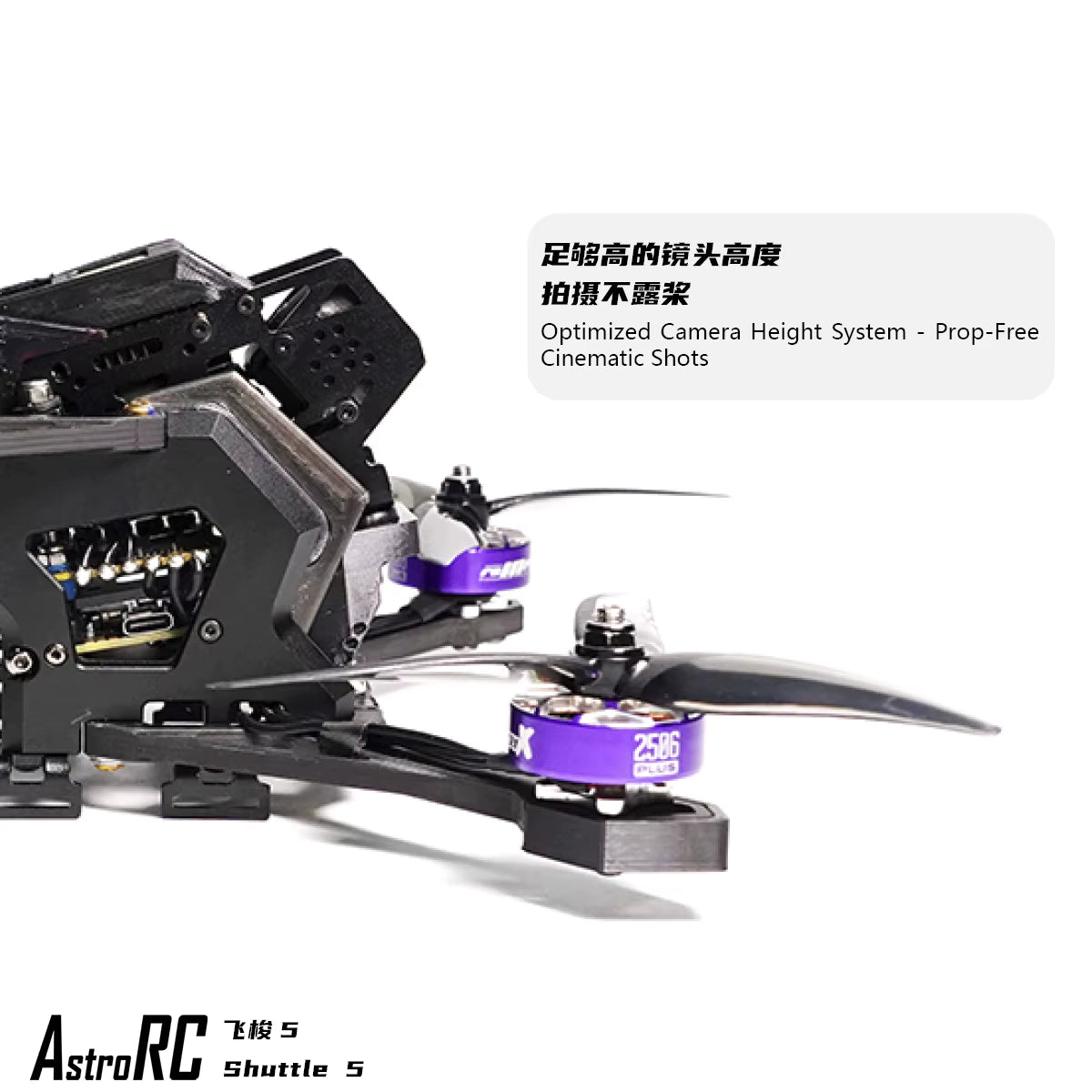

- Prop-hidden camera cage for clean cinematic shots

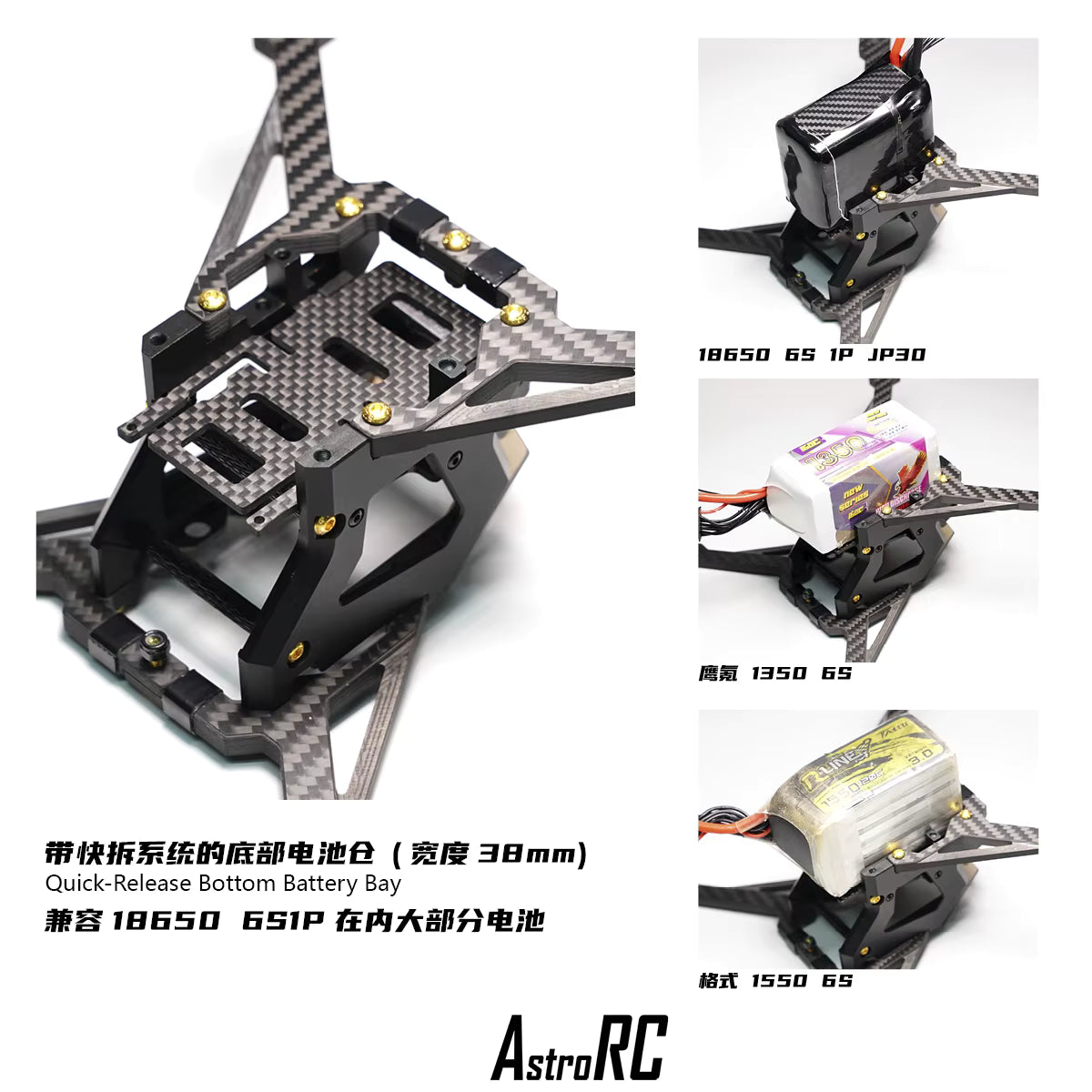

- Quick-release bottom battery bay (≈38 mm width)
- Compatible with 18650 packs, 6S LiPo, and most popular battery formats

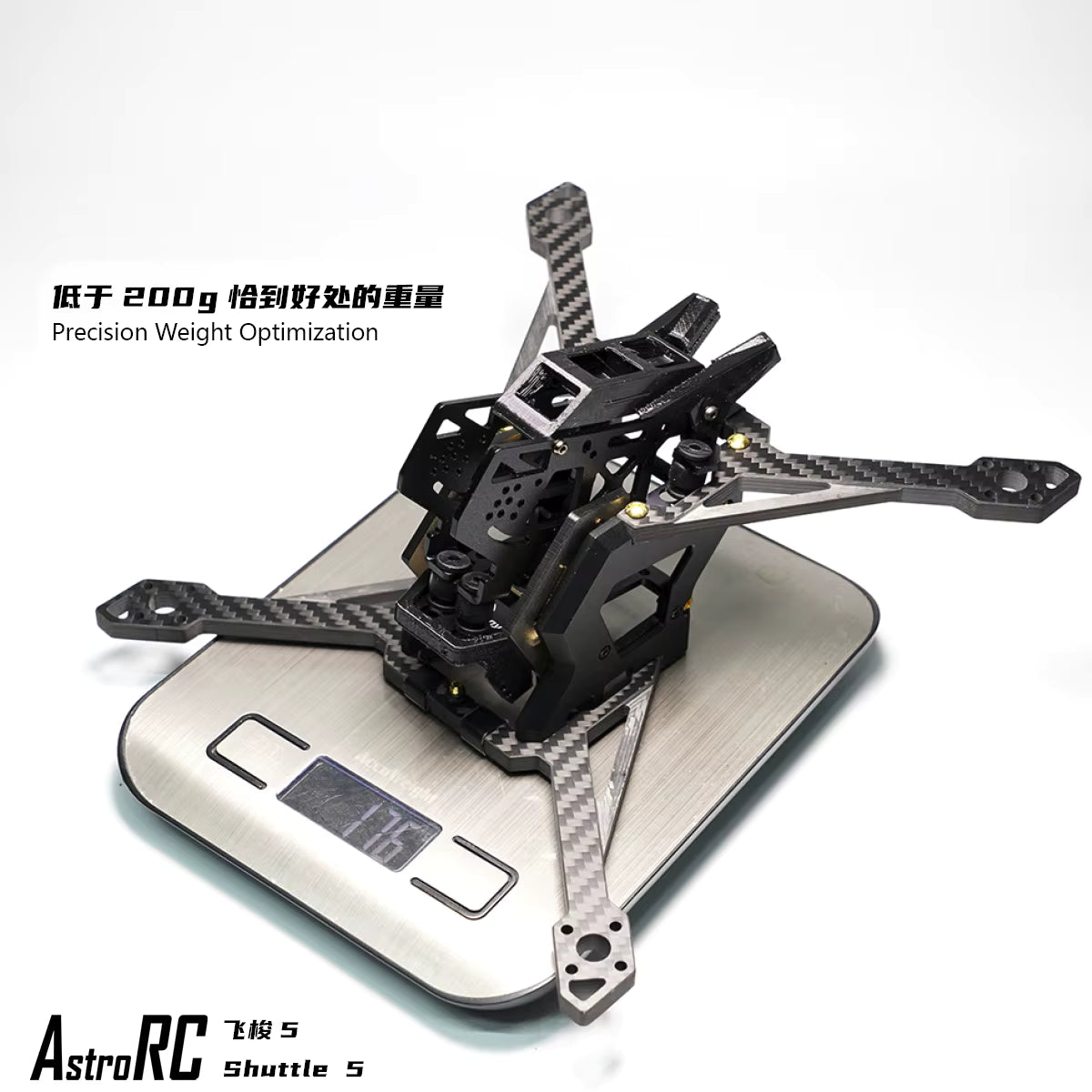

- Under 200 g total frame weight
- Multiple FC/VTX mounting options

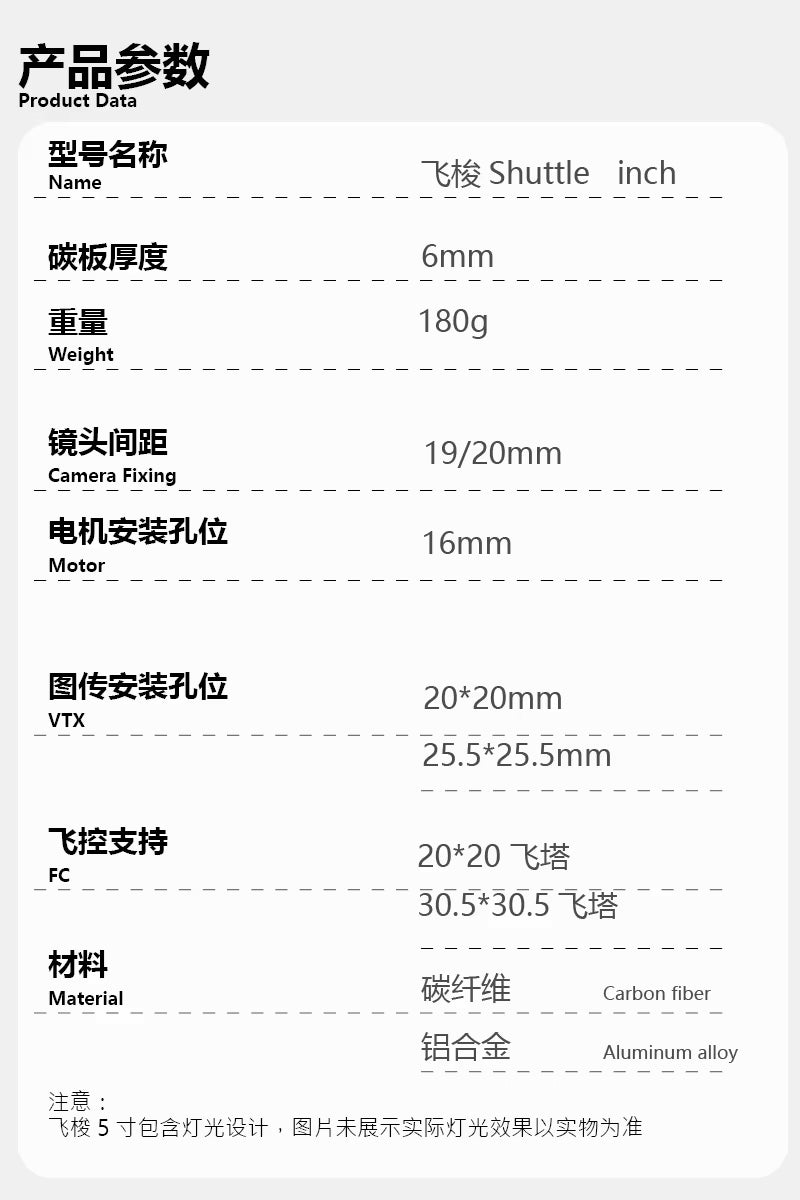

Specifications:
- Weight: 180 g (frame only)
- Arm Thickness: 6 mm carbon fiber
- Camera Sizes: 19 mm / 20 mm
- Motor Mounting: 16 mm pattern
- VTX Mounting: 20×20 mm or 25.5×25.5 mm
- FC Mounting: 20×20 mm / 30.5×30.5 mm
- Materials: Carbon fiber + 7075 aluminum alloy
Ideal For
• Cinematic FPV
• Long-range
• Freestyle
• Professional filming setups
• Pilots who prefer a rigid, modular, easily-serviceable frame
