Eachine VR009 Mini Analog Goggles

Eachine VR009 Auto-Searching Mini FPV Goggles

Specifications:

- Video delay: less than 20ms

- Lens: 4X Fresnel Lens, 92% transparent rate no distort of light

- Languages:English and Chinese

- Power adapter: DC5V/1A (USB interface)

- Battery: 3.7V/1200mAh, 2.5hr working time

- Power Consumption: 300~330mA at 3.7~4.2V

- Built-in battery maximum charge current of 500mA;

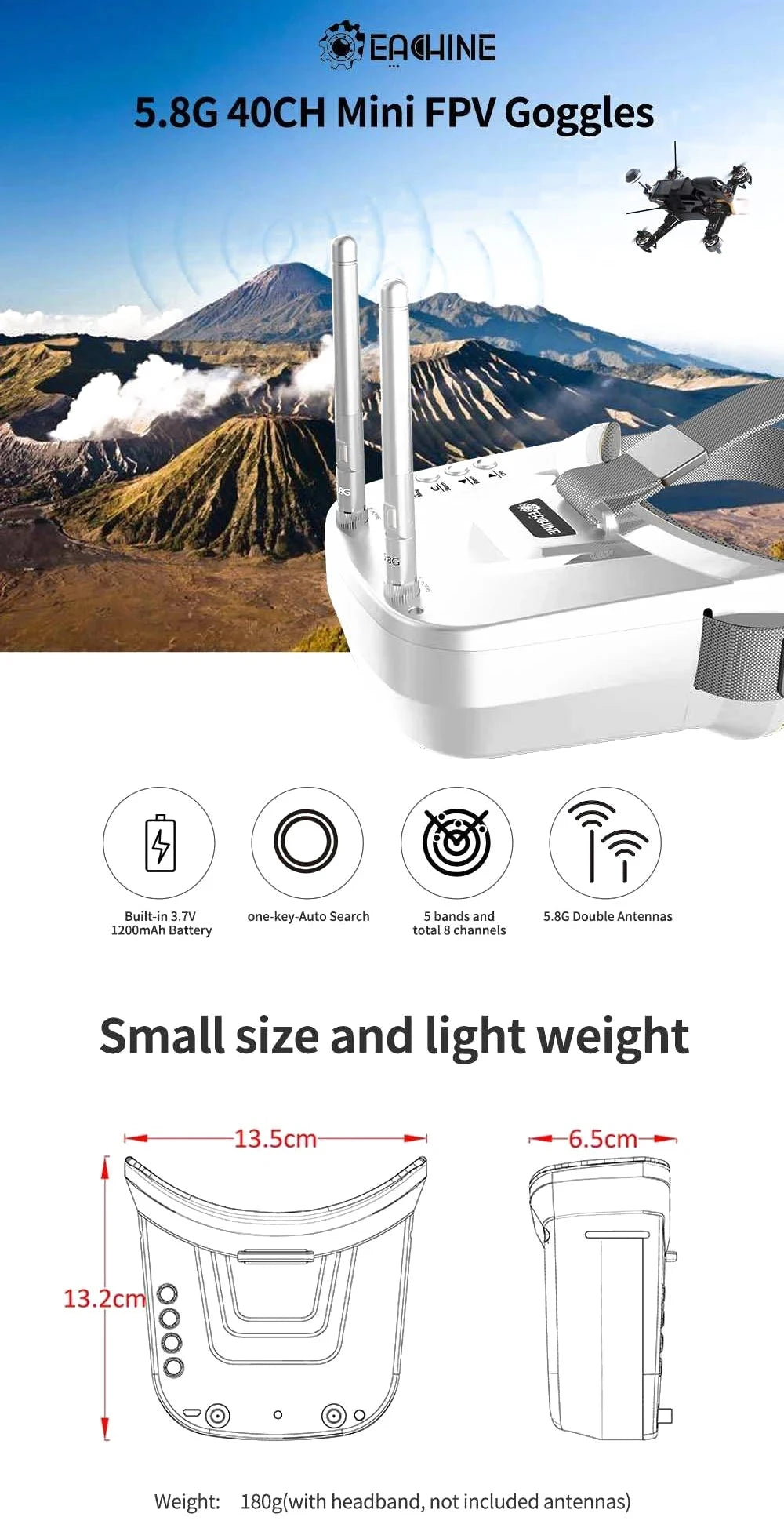

- Body:
Dimension: 13.5cm * 13.2cm * 6.5cm
Weight: 180g (with headband, not included antennas)

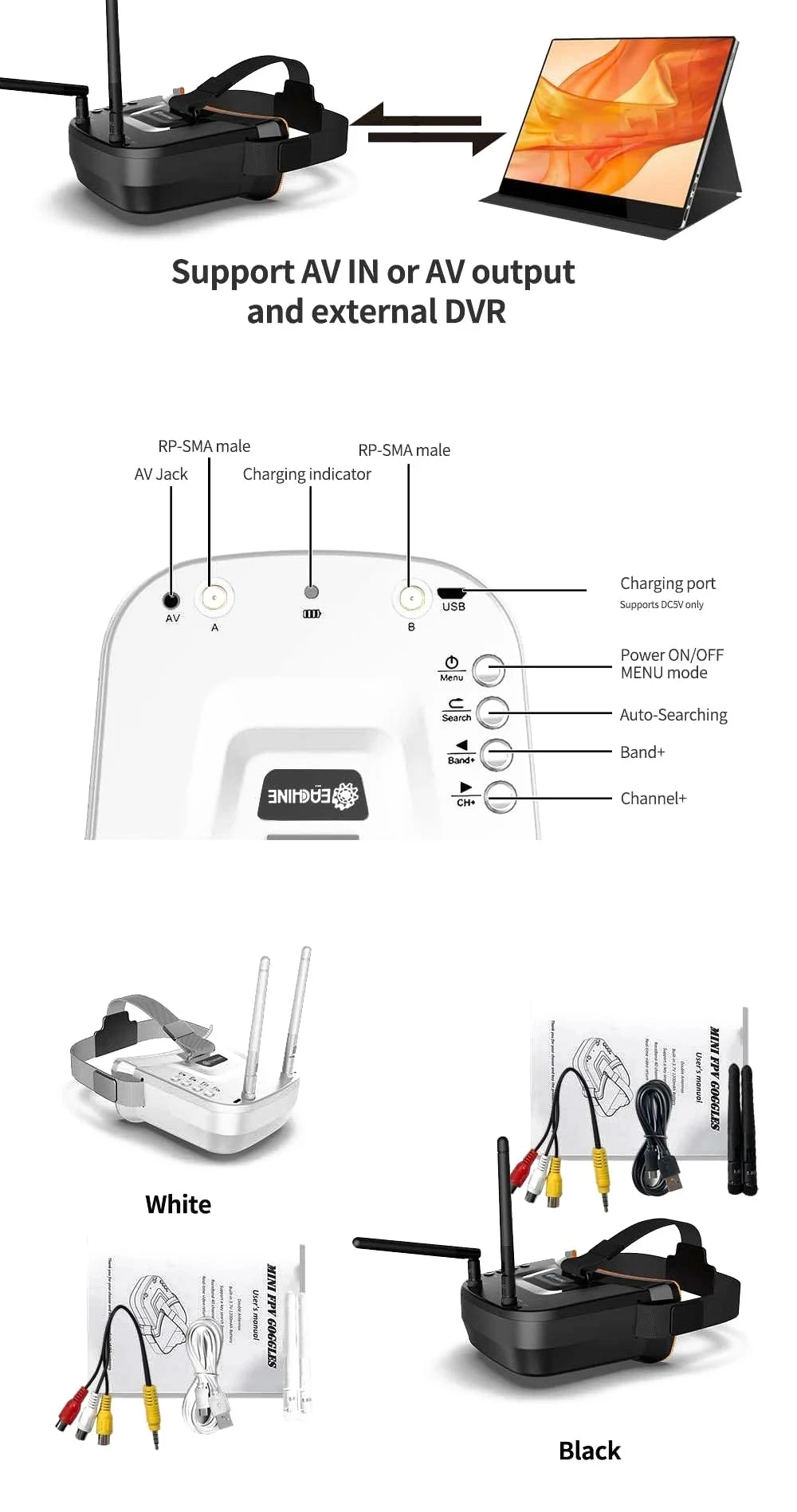

- Interface:
Antenna: 2 X RP-SMA male
USB: To charge the battery
AV Jack: External video signals input or internals AV signal output

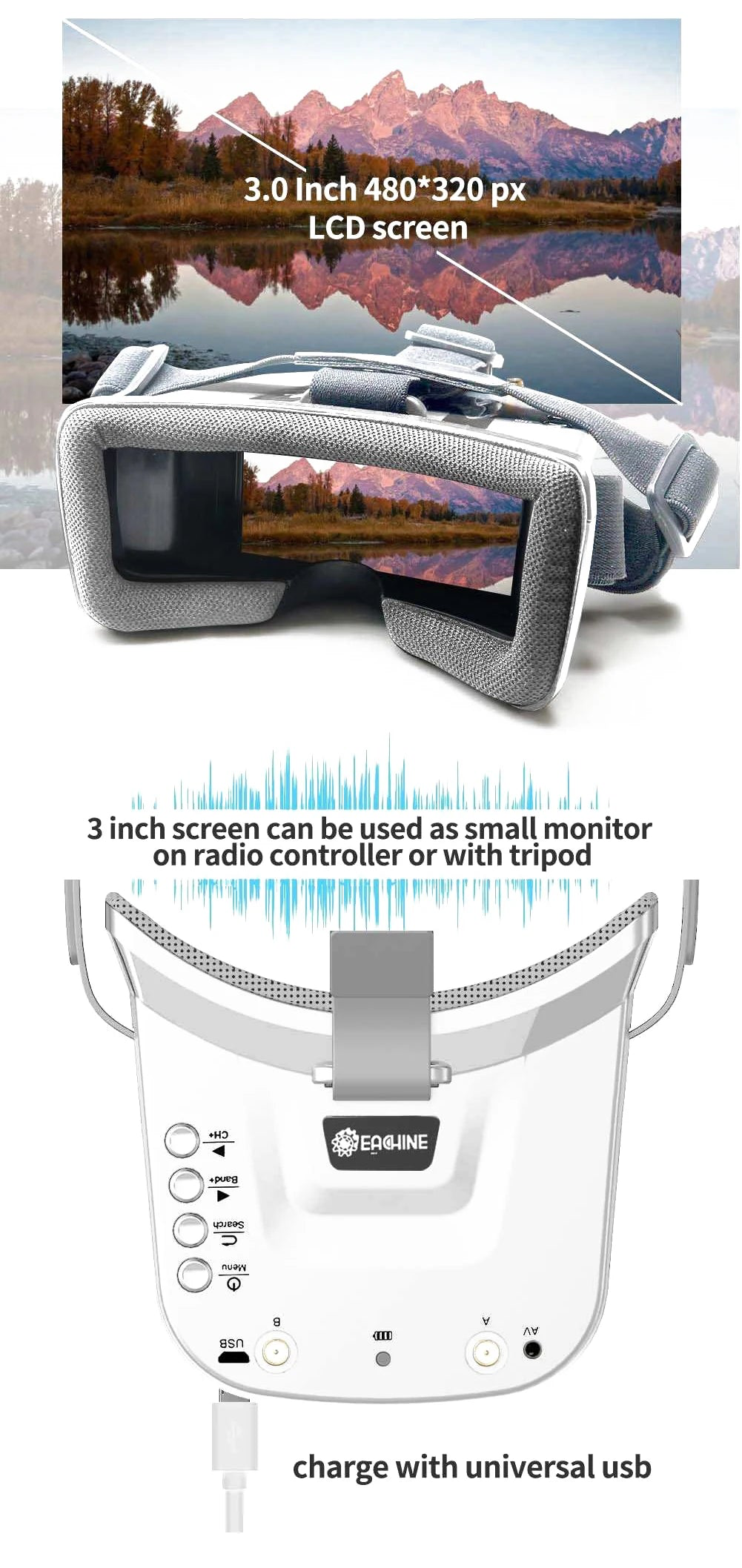

- LCD Screen:
Screen size: 3.0 Inch
Resolution: 480*320
Display Ratio: 16:9
View Angle: 6 o'clock
Brightness: 500cd/m with high brightness backlight LED

Features:
- Small size and light weight;
- Low power consumption, Working current 300~330mA;
- Double antenna reception to make the signal more stable;
- RaceBand 40 channel, Auto-Searching;
- 3.0 Inch 480*320 dot high brightness LCD screen;
- Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
- Built-in 3.7V/1200mAh high-capacity Li-ion polymer Battery;
- Universal USB charging interface;
- Real-time video return, Very low time-delay;
- Bilingual menu in support of Chinese and English;
- Support external video signal input;
- Support AV signal output (Connect external DVR);

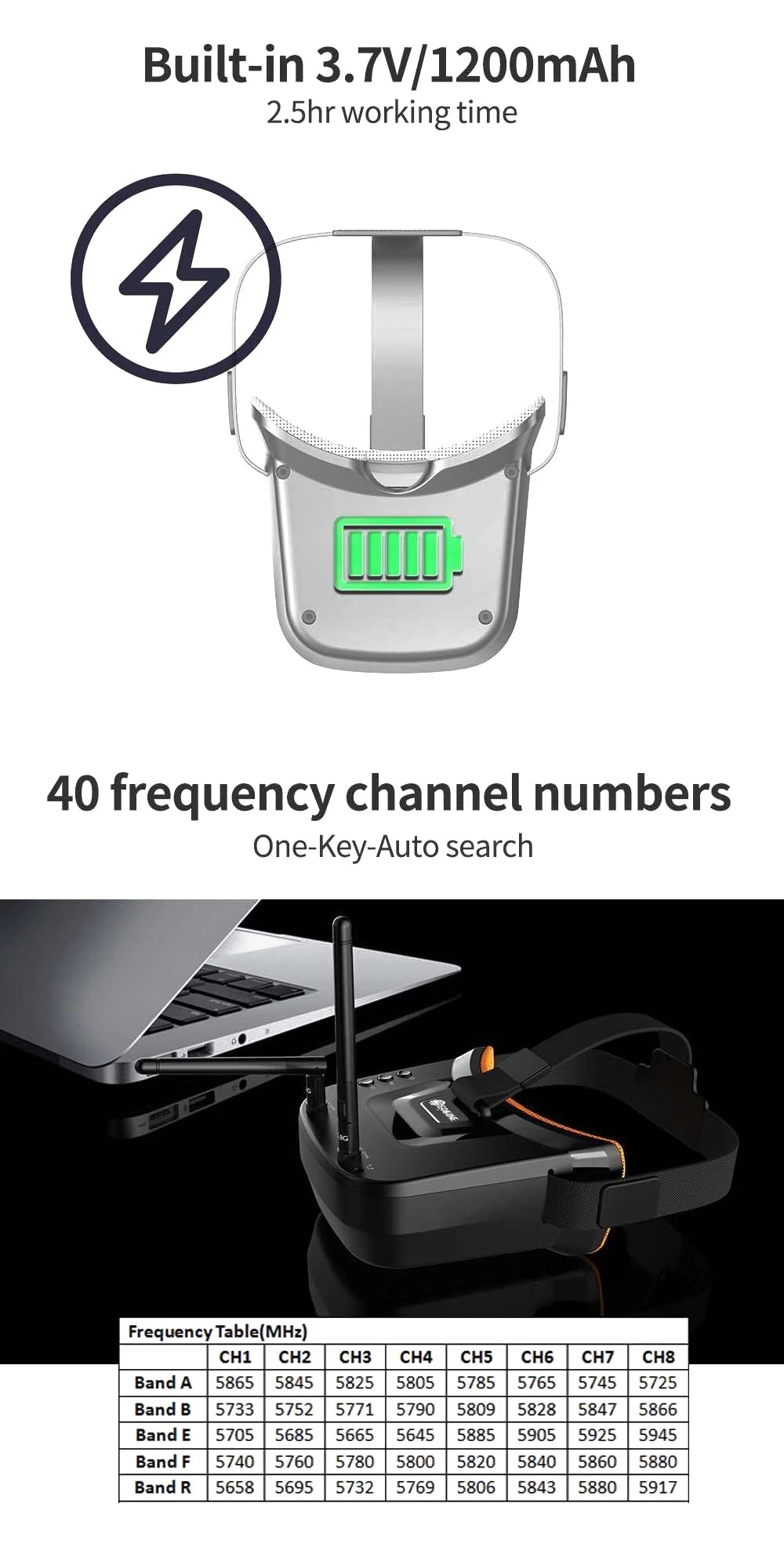

Band and Channel selection:
CH CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8

GROUP
-A 5865 MHZ 5845 MHZ 5825 MHZ 5805 MHZ 5785 MHZ 5765 MHZ 5745 MHZ 5725 MHZ
-B 5733 MHZ 5752 MHZ 5771 MHZ 5790 MHZ 5809 MHZ 5828 MHZ 5847 MHZ 5866 MHZ
-E 5705 MHZ 5685 MHZ 5665 MHZ 5645 MHZ 5885 MHZ 5905 MHZ 5925 MHZ 5945 MHZ
-F 5740 MHZ 5760 MHZ 5780 MHZ 5800 MHZ 5820 MHZ 5840 MHZ 5860 MHZ 5880 MHZ
-R 5658 MHZ 5695 MHZ 5732 MHZ 5769 MHZ 5806 MHZ 5843 MHZ 5880 MHZ 5917 MHZ

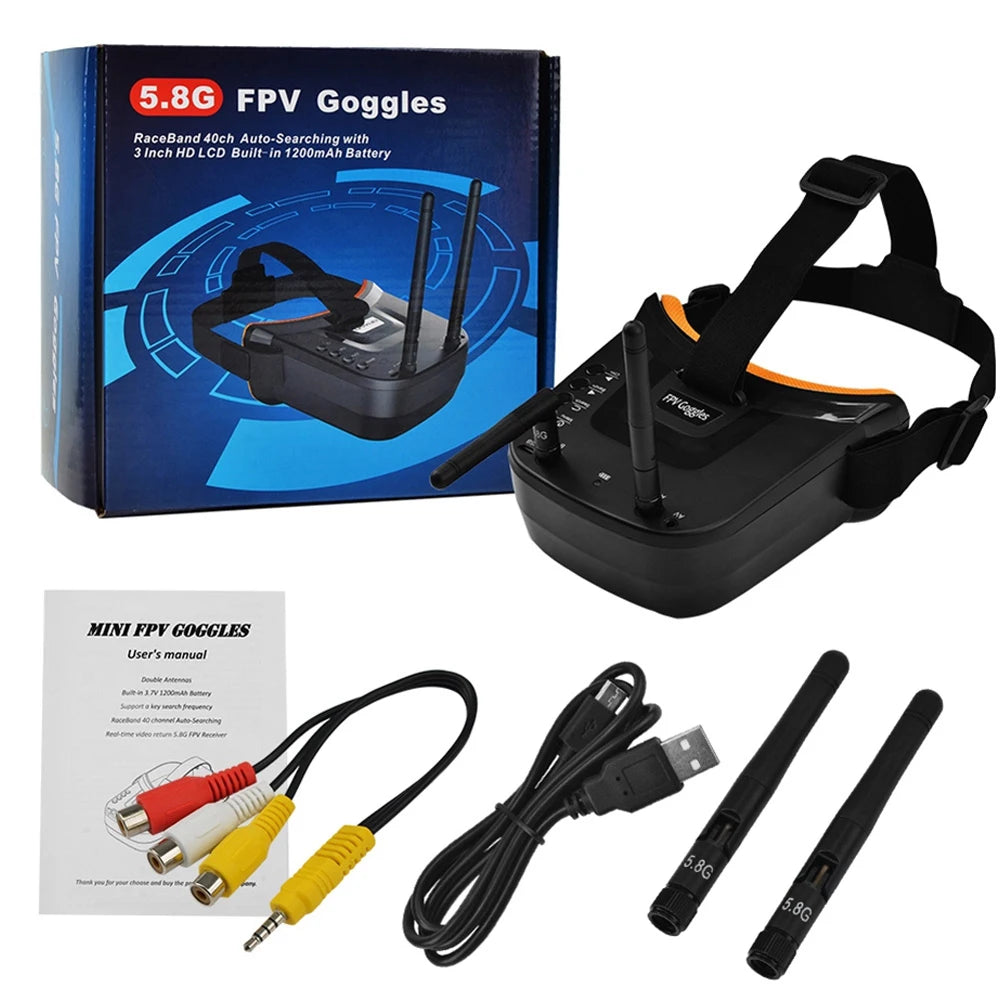

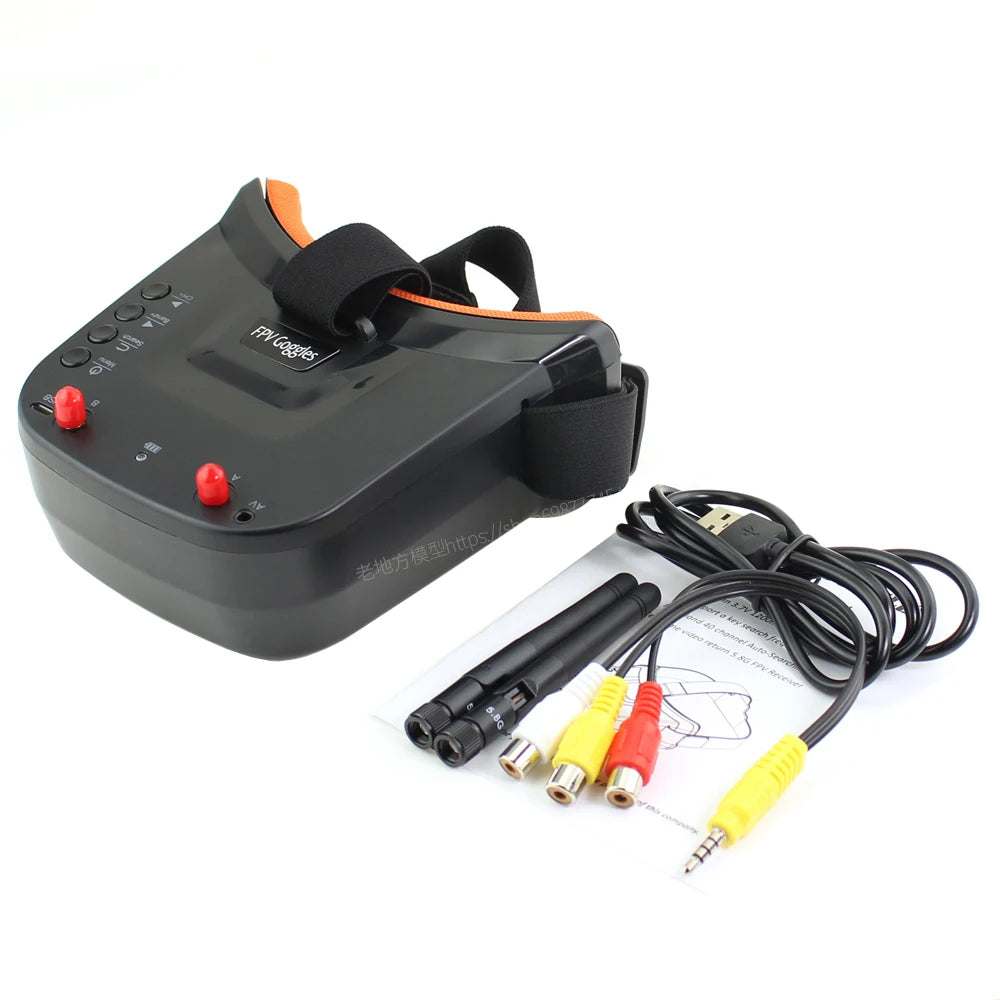

Package Includes:
1 x Eachine VR009 Goggles
1 x 3.7V 1200mAh Battery
2 x Antenna
1 x USB Charging Cable
1 x Manual
